TL-WA701ND 150Mbps Wireless Lite N Access Point User Guide
1.3 Appearance

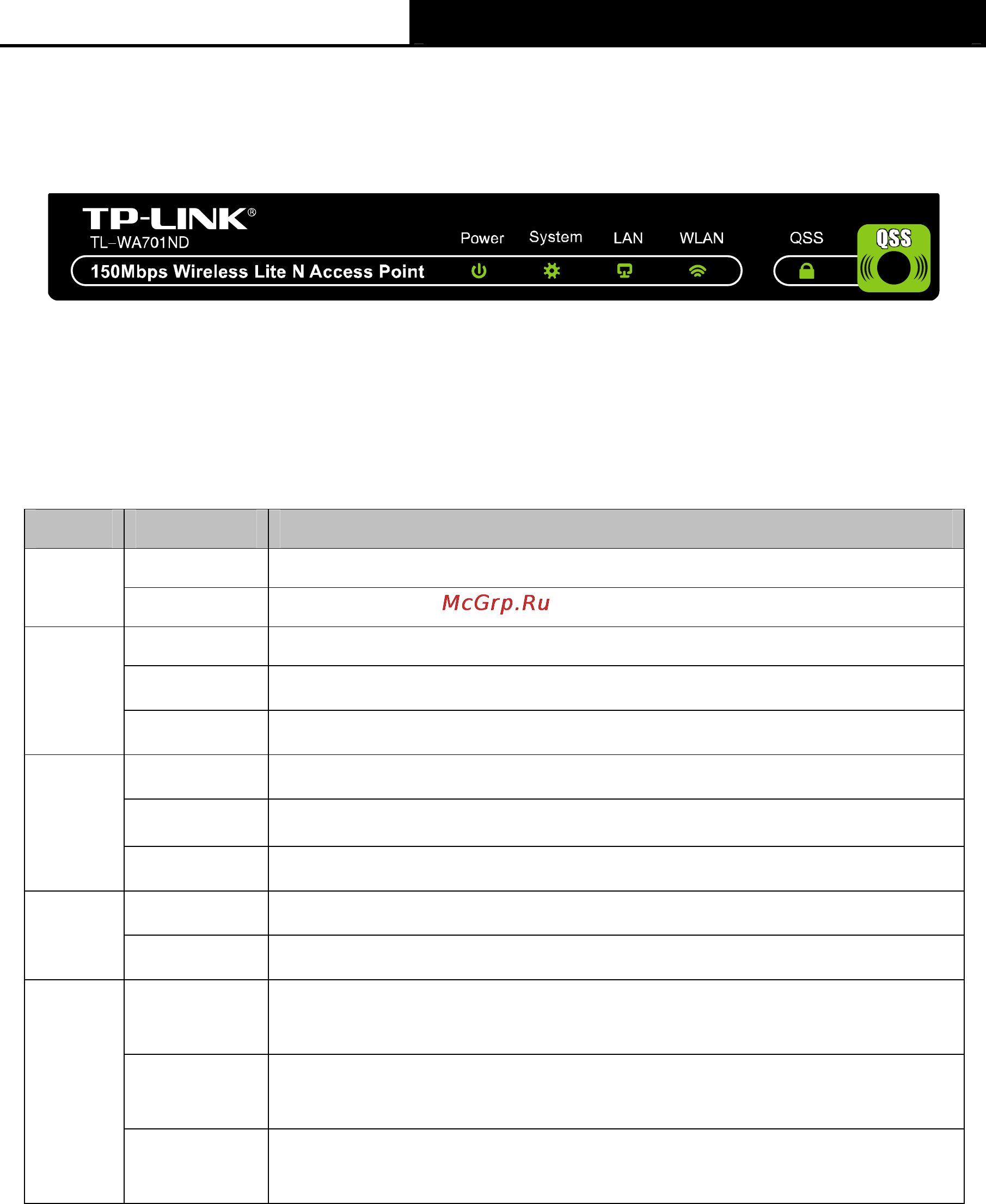

1.3.1 The Front Panel
Figure 1-1
The front panel of the TL-WA701ND consists of several LED indicators, which is designed to
indicate connections. View from left to right, Table 1-1 describes the LEDs on the front panel of the
device.
LED Explanation
Name Status Indication
Off No Power
Power
On Power on
Off The device has a system error
On
The device is initialising
System
Flashing
The device is working properly
Off
There is no device linked to the corresponding port
On
There is a device linked to the corresponding port but no activity
LAN
Flashing
There is an active device linked to the corresponding port
Off
The Wireless function is disabled
WLAN
Flashing
The Wireless function is enabled
Slow Flash
A wireless device is connecting to the network by QSS function.
This process will last in the first 2 minutes.
On
A wireless device has been successfully added to the network by
QSS function.
QSS
Quick Flash
A wireless device failed to be added to the network by QSS
function.
Table 1-1
5
