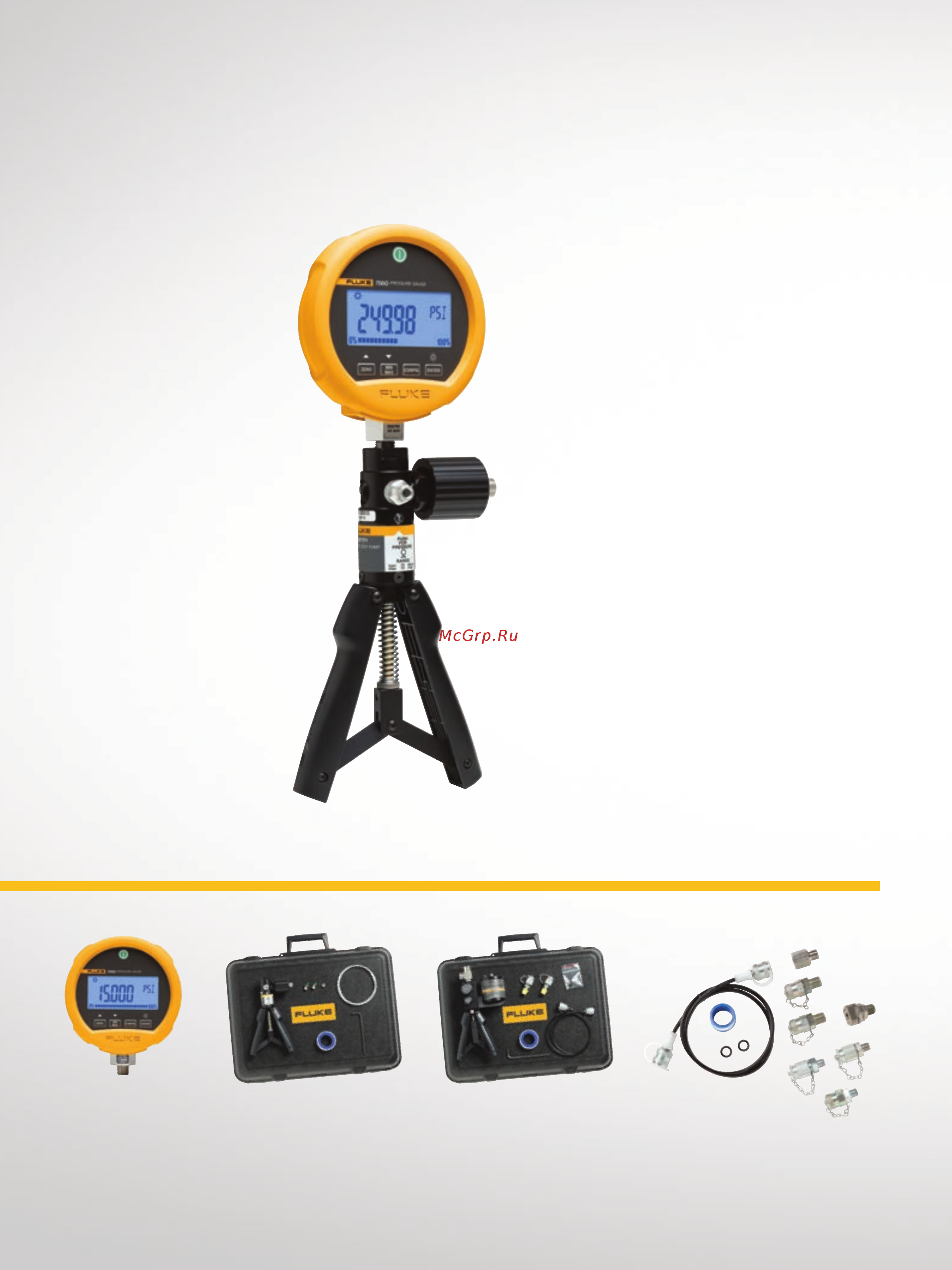

Fluke 753 [20/32] Suggested test tools

Suggested test tools

Use and selection of hand pumps and

pressure test gauges for ﬁeld pressure testing

It’s important to select the

proper pump and gauge to

match the testing application

at hand—a good guideline is

the testing device should be

4-10 times more accurate

than the device being tested.

To achieve this, match the

measurement to be made as

closely to the full scale value of

the test gauge. This delivers the

best accuracy from the gauge.

Fluke 700G

Precision Pressure

Gauge Calibrator

See pg 26

Fluke 700PTPK2

Pneumatic Test

Pressure Kit

See pg 31

Fluke 700HTPK2

Hydraulic Test

Pressure Kit

See pg 31

Fluke 700TTH 10K

Transmitter Test Hose

See pg 31
