V mA
SWITCH TEST
COM
EXTERNAL
PRESSURE MODULE
24 V DC
30 V MAX
LOOP
PORTABLE PRESSURE CALIBRATOR
3130
FLUKE CORPORATION
EVERETT, WA USA
www.flukecal.com
CHARGE
16 V DC
5.6 A
SERIAL NO.
VENT LINE BEFORE MAKING SELECTION
CAUTION
OUTPUT
ISOLATION
VALVE
-12 PSI TO 300 PSI
(-8 kPa TO 2 MPa)
AIR SUPPLY
330 PSI MAX
(2.3 MPa)
PRESSURE
CLOSED
VACUUM
PUMP
FINE
ADJUSTMENT
VENT
SUPPLY
METERING VALVE
FINE
ADJUSTMENT
VENT
FILTER
PRESSURE
SENSOR
CLOSE VALVE BEFORE
OPERATING PUMP
F1 F2 F3
HOME
ZERO PUMP
+
–
7
• Inaccurate calibration
equipment will only
degrade the performance
of the transmitter.
• Manufacturers recommend
using precise calibration
equipment under stable,
ambient conditions for
best results.
• Commission transmitters
at the bench so security
settings and protection
for failure modes can be
set before exposing
transmitter electronics to
factory conditions.

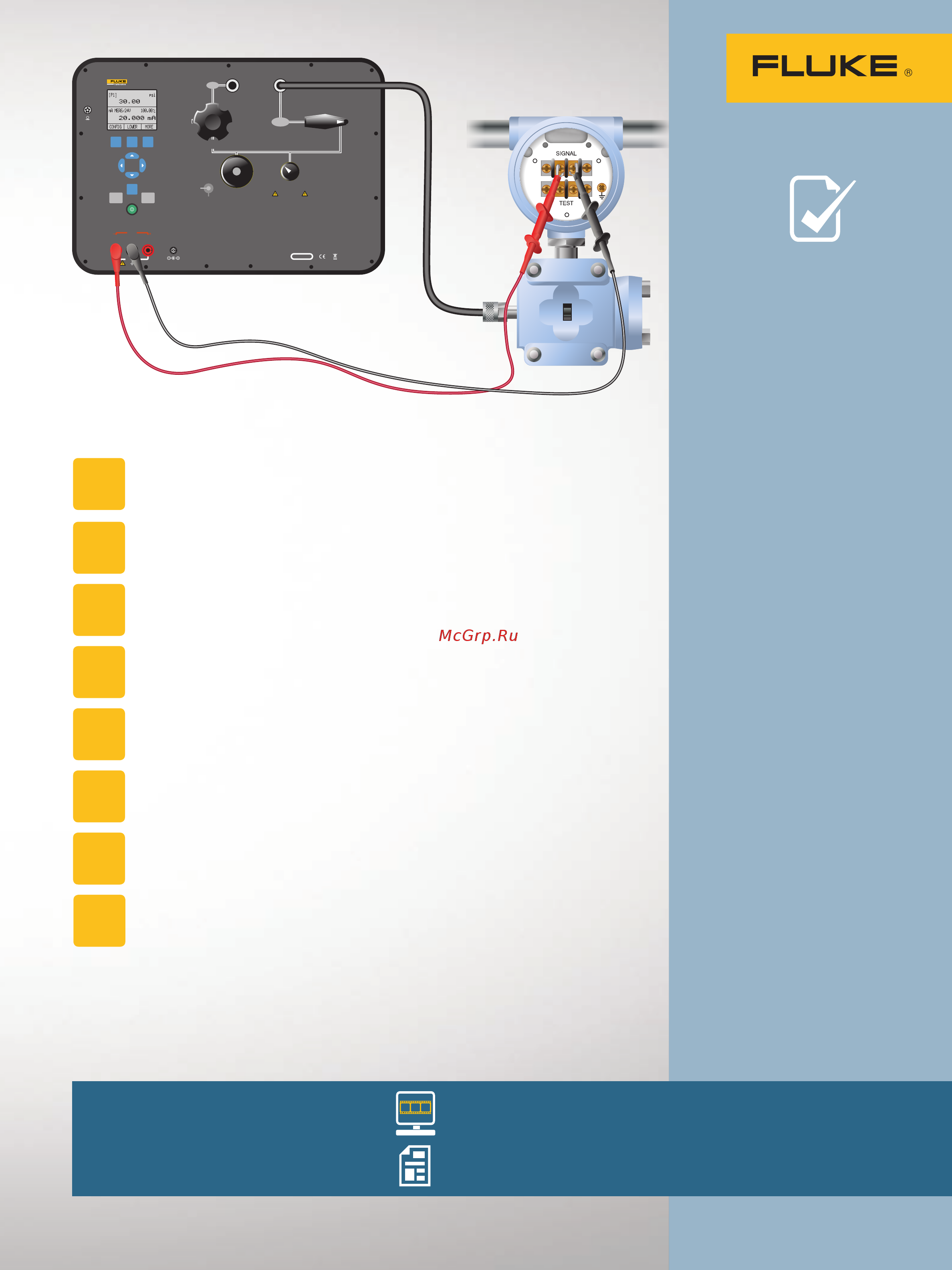

Connect the transmitter test hose from the calibrator to the transmitter
Connect the mA measurement jacks of the calibrator to the transmitter
Set the pressure/vacuum selection knob to the necessary function
Close the vent knob and supply metering valve
Apply pressure or vacuum from the pump by holding down the
pump button and release when the necessary pressure is reached
Correct the pressure with the fine pressure adjustment
Read the reference pressure and the current output of the transmitter
from the display
Repeat for all test points. If the measured mA signal at the test points
is found within tolerance the test is complete. If not, then adjustment
is required.
STEP
1
STEP
2
STEP
3
STEP
4
STEP
6
STEP
7
To perform the test:
Additional resources
For more in depth information about
this application check out these videos
and application notes from Fluke.
How to use a deadweight tester
Fluke 719 electric pressure calibrator demonstration
Transmitter Calibration with the Fluke 750 Series DPC
HART transmitter calibration
TECH
TIPS
STEP
5
STEP
8
7
