D-Link DES-3250TG Standalone Layer 2 Switch
Traffic Segmentation
This window allows you to manage traffic segmentation on the switch.
Click Traffic Segmentation in the QoS folder on the Configuration menu:

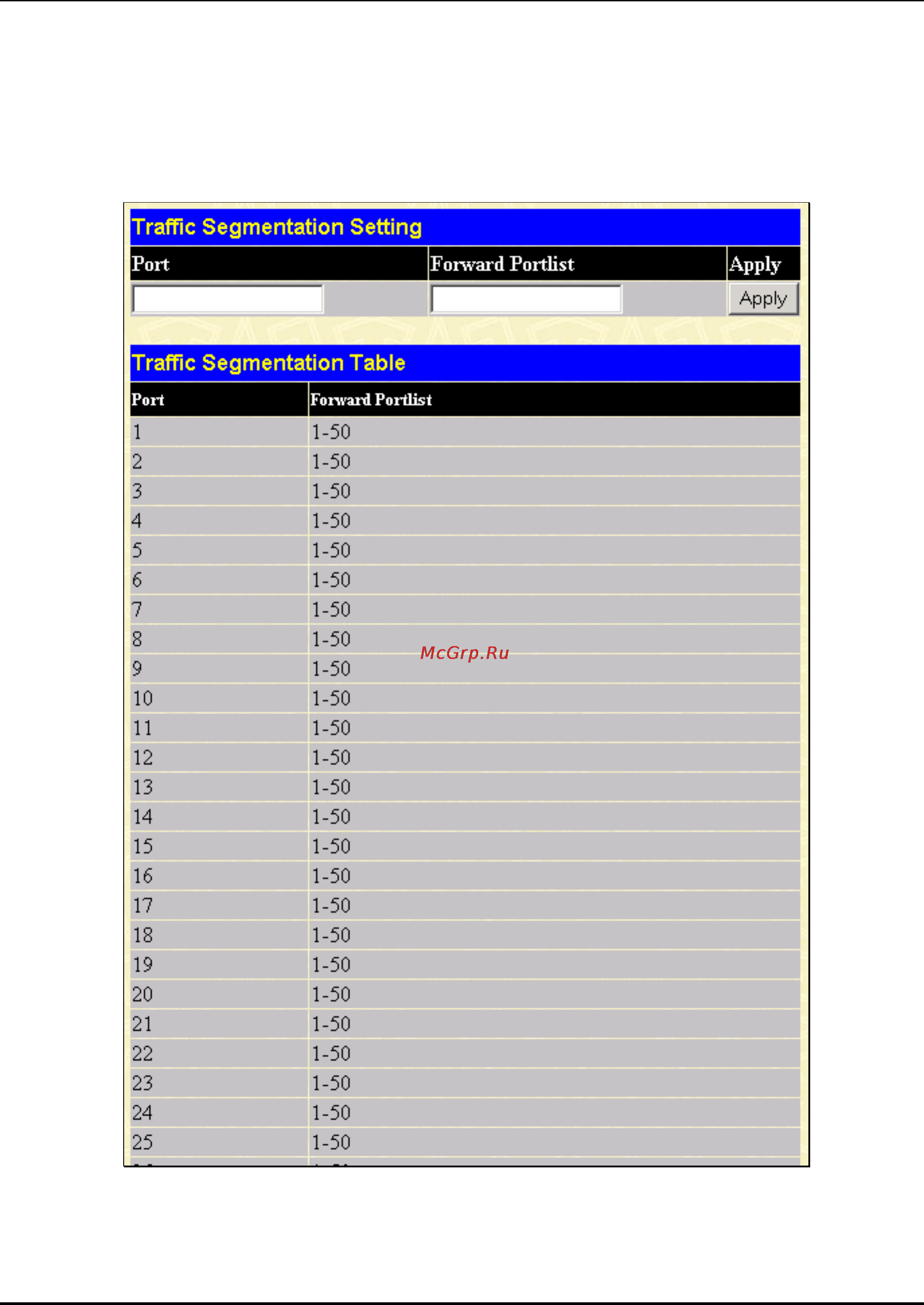

Figure 7- 36. Traffic Segmentation Setting window
75
