Installation du groupe de
condensation
Démontage de la carrosserie
du groupe de condensation

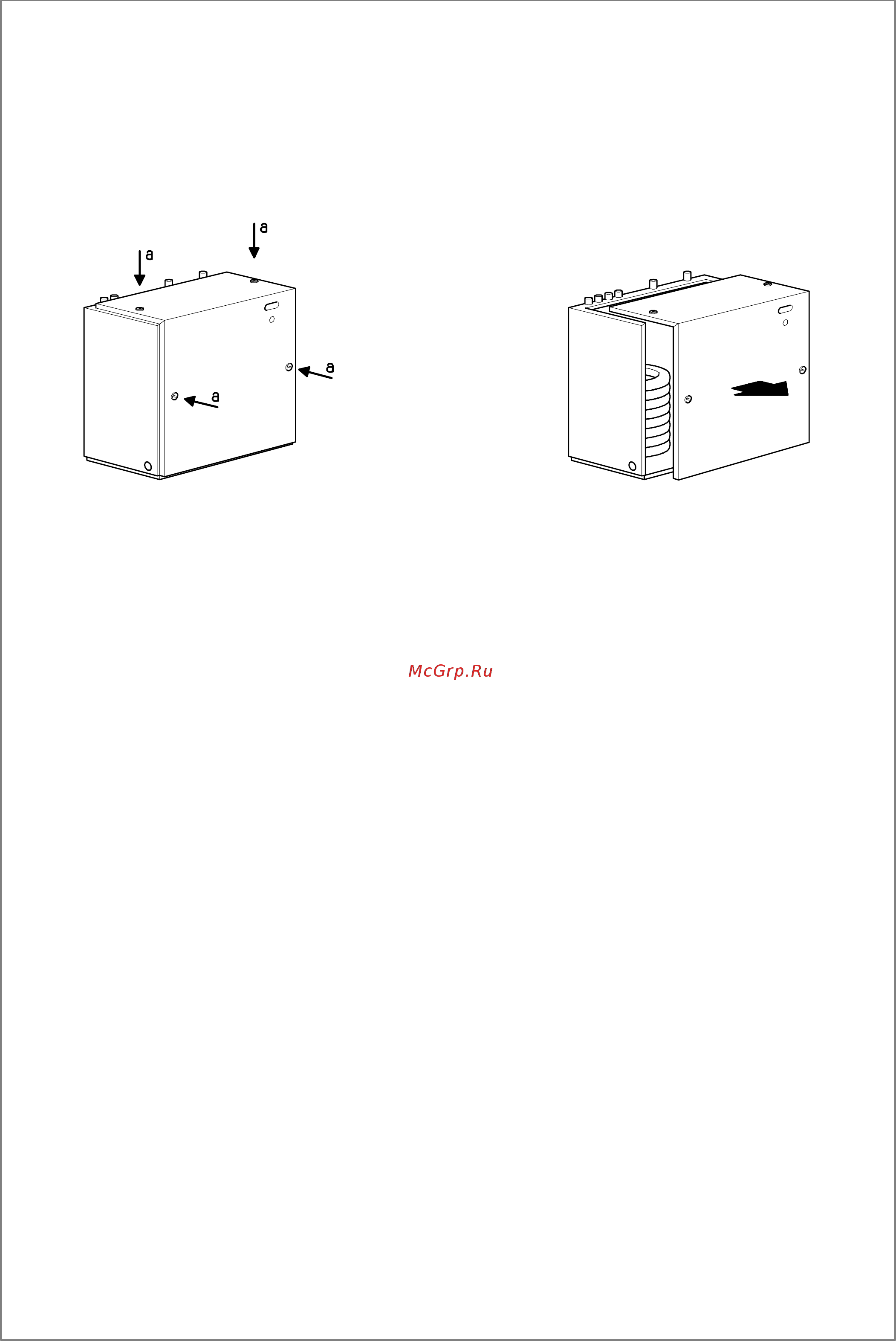

1) Dévisser les ouvertures rapides (rep. a) pour enlever le
capot
Condensing unit installation
Dismounting the casing of the conden-
sing unit
1) Unscrew the quick openings (ref. a) to remove the casing.
Raccordements hydrauliques
L’entrée et la sortie d’eau du condenseur sont indiquées sur
l’appareil. Veiller à ne pas tordre les tubulures lors du serrage.
Un jeu de flexibles souples (en option) peut être fourni, il per-
met un raccordement aisé et évite les transmissions de bruits
et de vibrations.
La sortie d’eau doit impérativement se faire sur la vanne à eau
pressostatique qui est montée d’origine en usine. Celle-ci
maintient une T° de pression de condensation constante à
43 °C (pression minimale admissible : 3 bar).
NOTA : Fonctionnement sur eau de tour :
Vanne à eau pressostatique.
Les appareils SEO et SYEO, sont livrés avec une vanne pres-
sostatique 2 voies montée sur l’appareil pour l’utilisation en
eau perdue.
Cette vanne permet de régler la pression de condensation et
joue également le rôle d’économiseur d’eau.
Dans le cas d’une circulation d’eau par pompe dans le con-
denseur, il est nécessaire de prévoir :
Soit un by-pass équipé d’un clapet de décharge (la régula-
tion de pression de condensation est alors maintenue grâce
à la vanne à eau pressostatique).
Soit de démonter la vanne et faire un raccordement direct
sur le condenseur (dans certains cas, il peut être nécessaire
de prévoir une régulation de la pression de condensation par
l’intermédiaire de la température d’eau).
IMPORTANT
Pour supprimer l’action de la vanne pressostatique, ne dé-
monter que les raccords du circuit d’eau et laisser raccordé
la capillaire qui va sur le circuit frigorifique, laisser la vanne
posée sur le chassis du groupe, il n’y a aucun inconvénient
sur le fonctionnement.
Le capillaire fait partie du circuit frigorifique, il est soumis à la
haute pression, il serait dangereux de démonter le raccord
sans les précautions d’usage.
Faire appel à un frigoriste pour réaliser cette manipulation.
Hydraulic connections
The condenser water inlet and outlet are indicated on the unit.
Take care not to bend the tubing when tightening connec-
tions. A set of flexible tubing (optional) can be supplied, it sim-
plifies the connection work and serves to deaden the trans-
mission of noise and vibration.
The water outlet must be on the water pressure valve which
is factory installed ; this valve maintains a constant condens-
ing temperature of 43
°
C (minimum operating pressure : 3
bar).
NOTE : Operating with cooling tower water :
Pressostatic water valve.
The SEO and SYEO units are delivered with an installed two-
way pressostatic valve for use with water-to-waste.
This valve allows control of condensation pressure and also
reduces water consumption.
In the case where water is circulated in the condenser by
means of a pump, it is necessary to :
Either install a by-pass equipped with a discharge valve
(control of condensing pressure is then maintained by the
pressostatic water valve).
Or remove the valve and make a direct connection to the
condenser (in certain cases it may be necessary to make pro-
vision for control of condensation pressure by means of the
water temperature).
IMPORTANT
To suppress the action of the pressostatic valve remove the
water circuit connections only and leave intact the capillary
which connects to the refrigerant circuit. Leave the valve itself
in place on the unit, it will not inconvenience operation.
The capillary is part of the refrigerant circuit and is under high
pressure. It would be very dangerous to remove this device
without proper precaution.
If the operation is considered necessary, call refrigeration
specialists.
