DES-3550 Fast Ethernet Layer 2 Switch

MAC-Based Network Access Control

802.1X

Client

Network access controlled port

Network access uncontrolled port

RADIUS

Server

Ethernet Switch

802.1X

Client

802.1X

Client

802.1X

Client

802.1X

Client

802.1X

Client

802.1X

Client

802.1X

Client

802.1X

Client

802.1X

Client

802.1X

Client

802.1X

Client

…

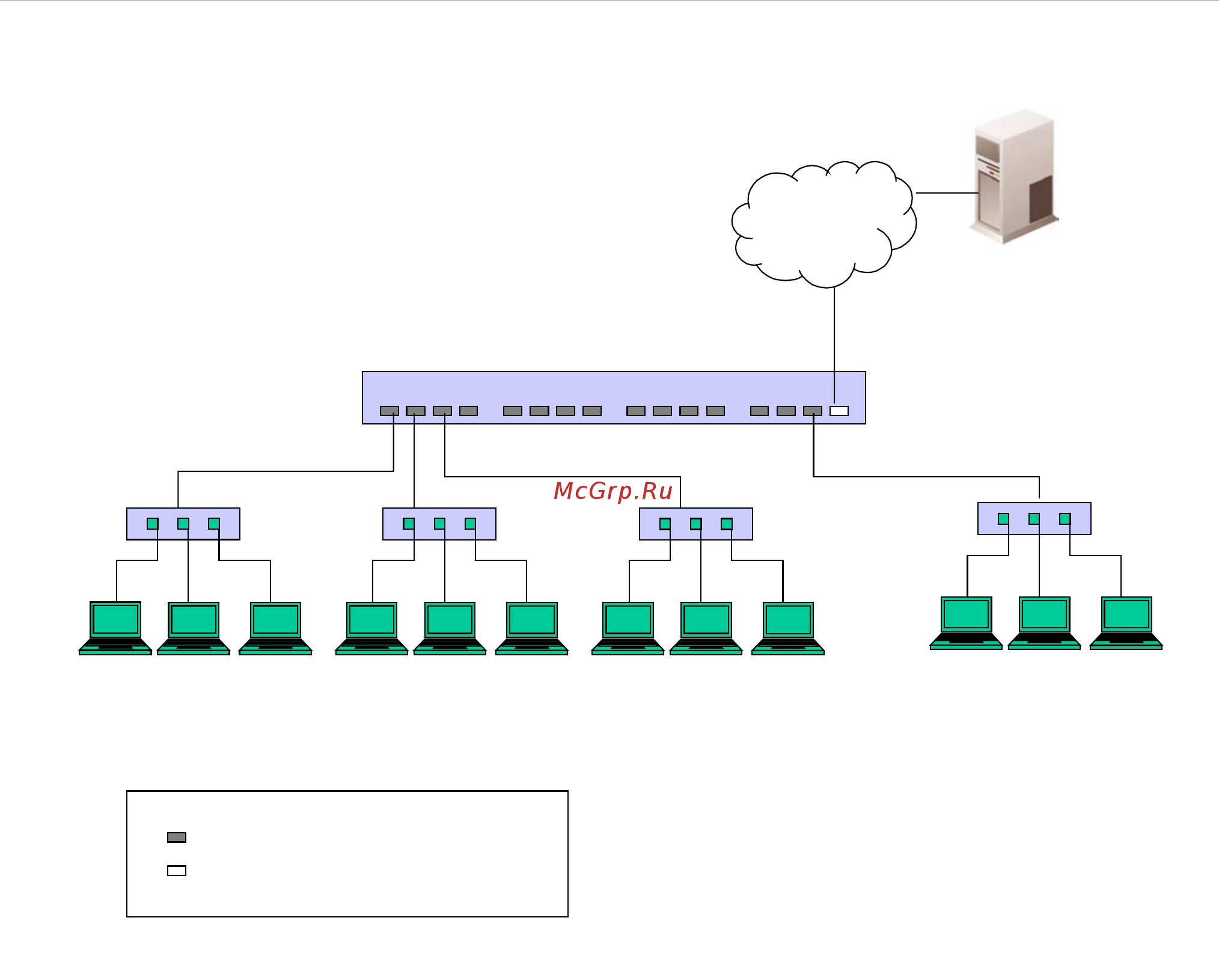

Figure 6- 72. Example of Typical MAC-Based Configuration

In order to successfully make use of 802.1x in a shared media LAN segment, it would be necessary to create “virtual” Ports,

one for each attached device that required access to the LAN. The Switch would regard the single physical Port connecting it

to the shared media segment as consisting of a number of distinct virtual Ports, each virtual Port being independently

controlled from the point of view of EAPOL exchanges and authorization state. The Switch learns each attached device’s

individual MAC address, and effectively creates a virtual Port that the attached device can then use to communicate with the

LAN via the Switch
