MST Configuration Table

The following window allows the user to configure a MSTI instance on the Switch. These settings will uniquely identify a

multiple spanning tree instance set on the Switch. The Switch initially possesses one CIST or Common Internal Spanning

Tree of which the user may modify the parameters for but cannot change the MSTI ID for, and cannot be deleted. To view

the Current MST Configuration Identification window, click Configuration > Spanning Tree > MST Configuration

Table:

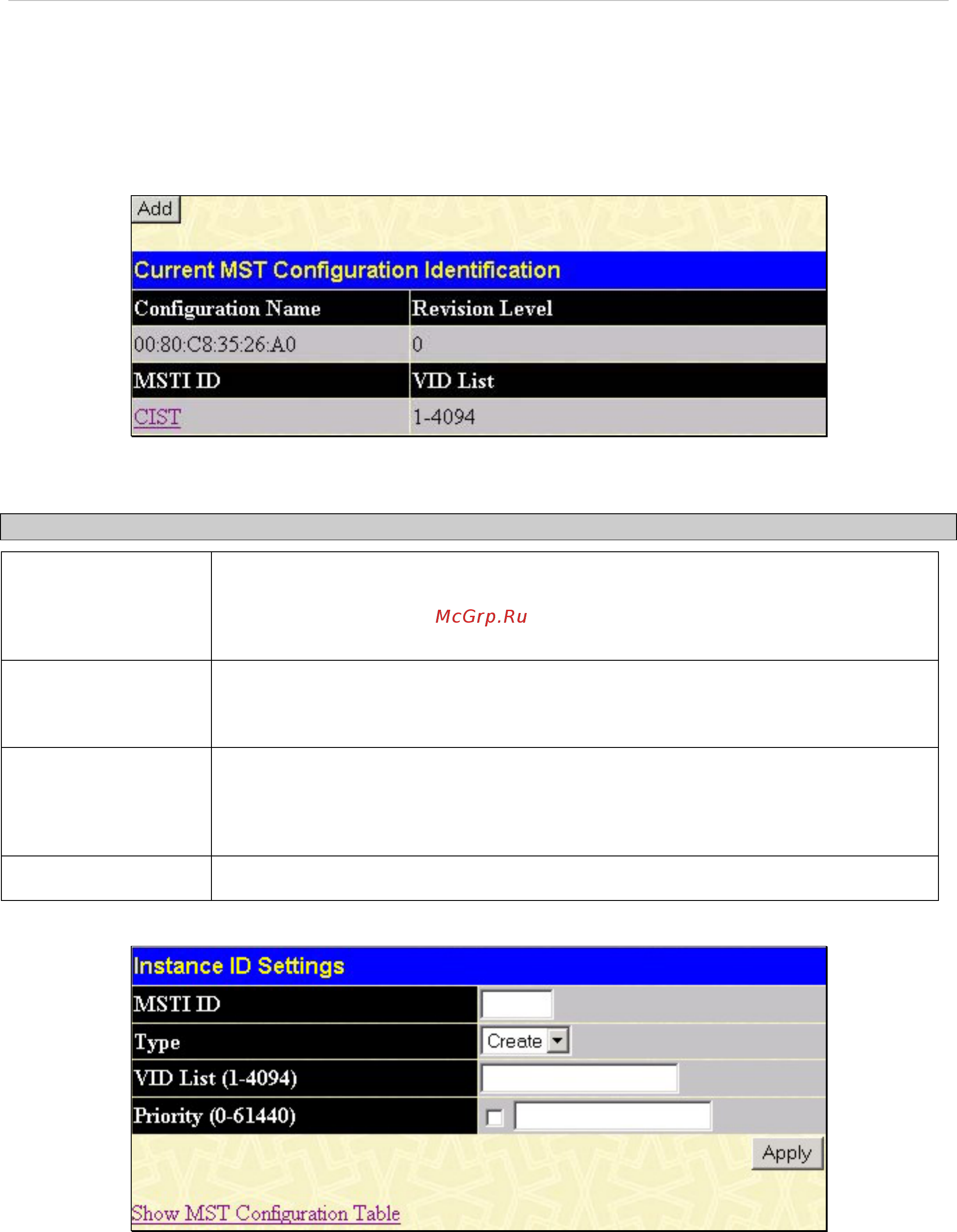

Figure 6- 21. Current MST Configuration Identification window

The window above contains the following information:

Parameter Description

Configuration Name

A previously configured name set on the Switch to uniquely identify the MSTI (Multiple

Spanning Tree Instance). If a configuration name is not set, this field will show the

MAC address to the device running MSTP. This field can be set in the STP Bridge

Global Settings window.

Revision Level

This value, along with the Configuration Name will identify the MSTP region con-

figured on the Switch. This field can also be set in the STP Bridge Global Settings

window.

MSTI ID

This field shows the MSTI IDs currently set on the Switch. This field will always have

the CIST MSTI, which may be configured but not deleted. Clicking the hyperlinked

name will open a new window for configuring parameters associated with that

particular MSTI.

VID List

This field displays the VLAN IDs associated with the specific MSTI.

Clicking the Add button will reveal the following window to configure:

Figure 6- 22. Instance ID Settings window- Add
