D-Link DES-3326S Layer 3 Switch

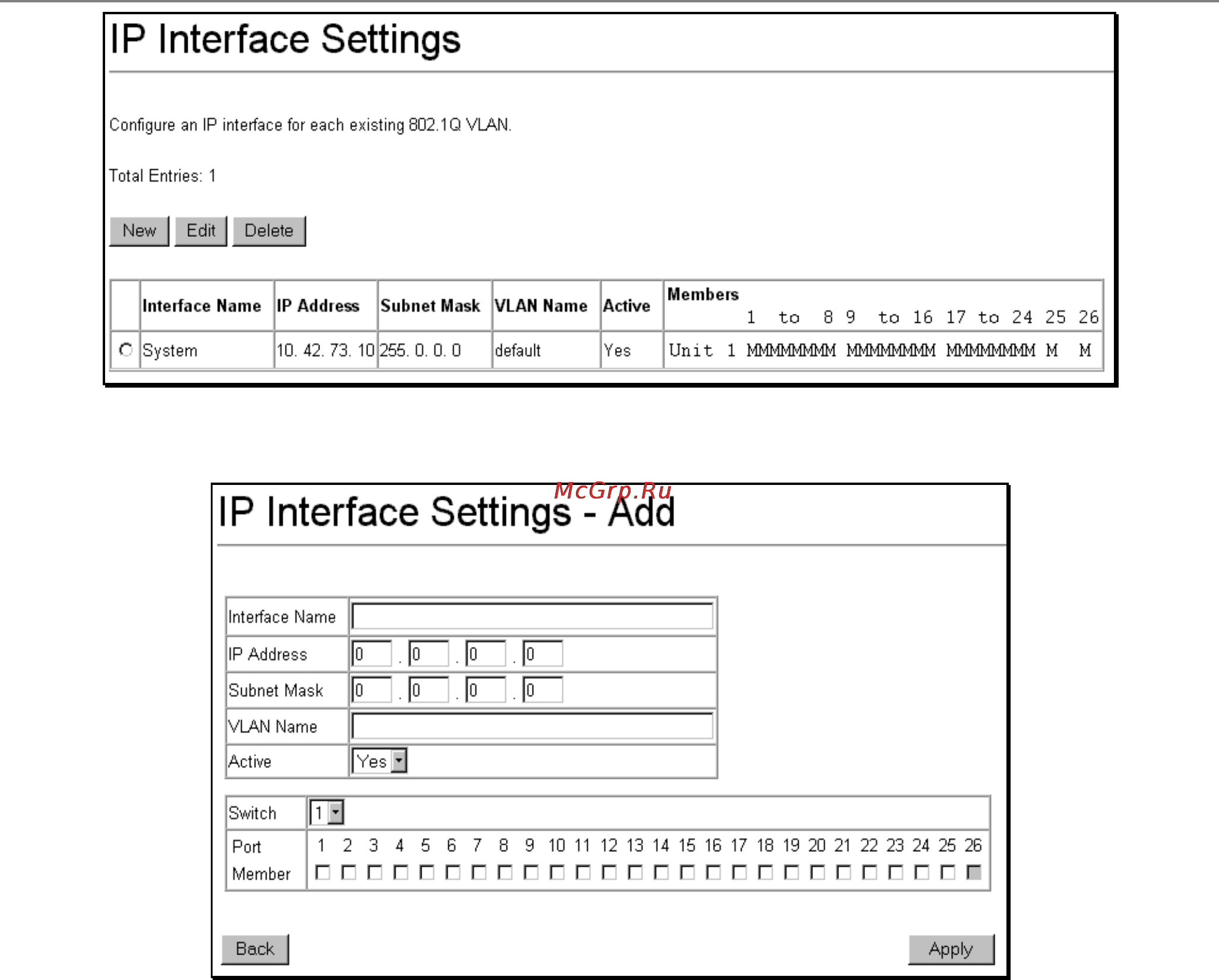

Figure 20- 1. Setup IP Interface
To setup an new IP interface, click the New button:
Figure 20- 2. Setup IP Interface – Add
143
