TL-WN620G 108M Wireless USB Adapter User Guide

3.1 Current Status

The Current Status tab contains general information about the program and its operations. The

Current Status tab does not require any configuration.

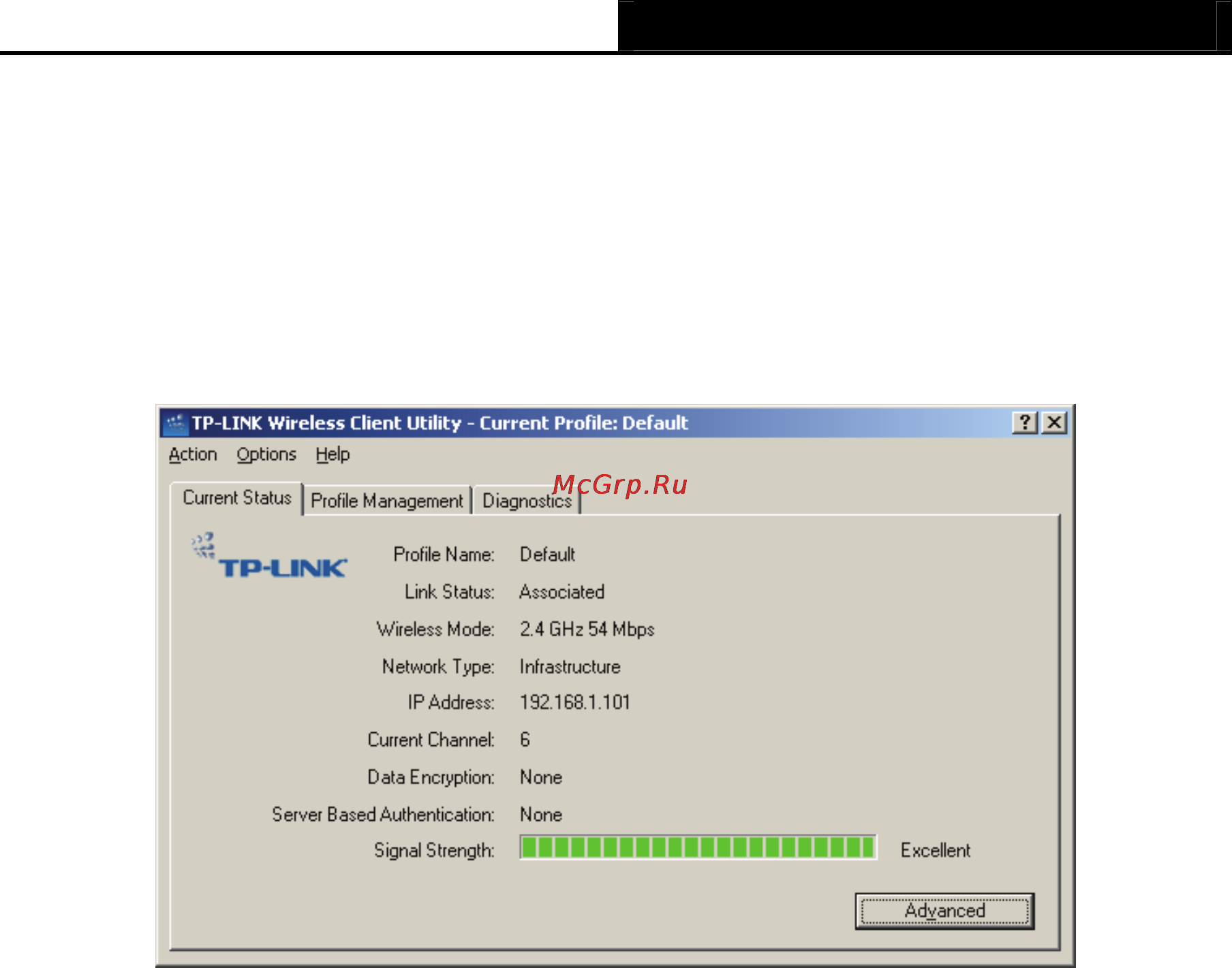

Figure 3-1 Current Status

The following table describes the items found on the Current Status screen.

¾ Profile Name - The name of current selected configuration profile. Set up the configuration

name on the General tab of Profile Management.

¾ Link Status - Shows whether the station is associated to the wireless network.

¾ Wireless Mode - Displays the wireless mode. Configure the wireless mode on the

Advanced tab of Profile Management.

¾ Network Type - The type of network the station is currently connected with. The options

include:

• Infrastructure (access point)

• Ad Hoc

Configure the network type on the Advanced tab of Profile Management.

¾ IP Address - Displays the computer’s IP address.

¾ Current Channel - Shows the currently connected channel.

¾ Data Encryption - Displays the encryption type that the driver is using. Configure the

encryption type on the Security tab of Profile Management.

¾ Server Based Authentication - Shows whether server based authentication is used.

¾ Signal Strength - Shows the strength of the signal.

)

Note:

In the TL-WN620G Wireless Client Utility, access the General tab, Security tab, Advanced tab

by clicking New or Modify on the Profile Management tab.
