Assembling appliance

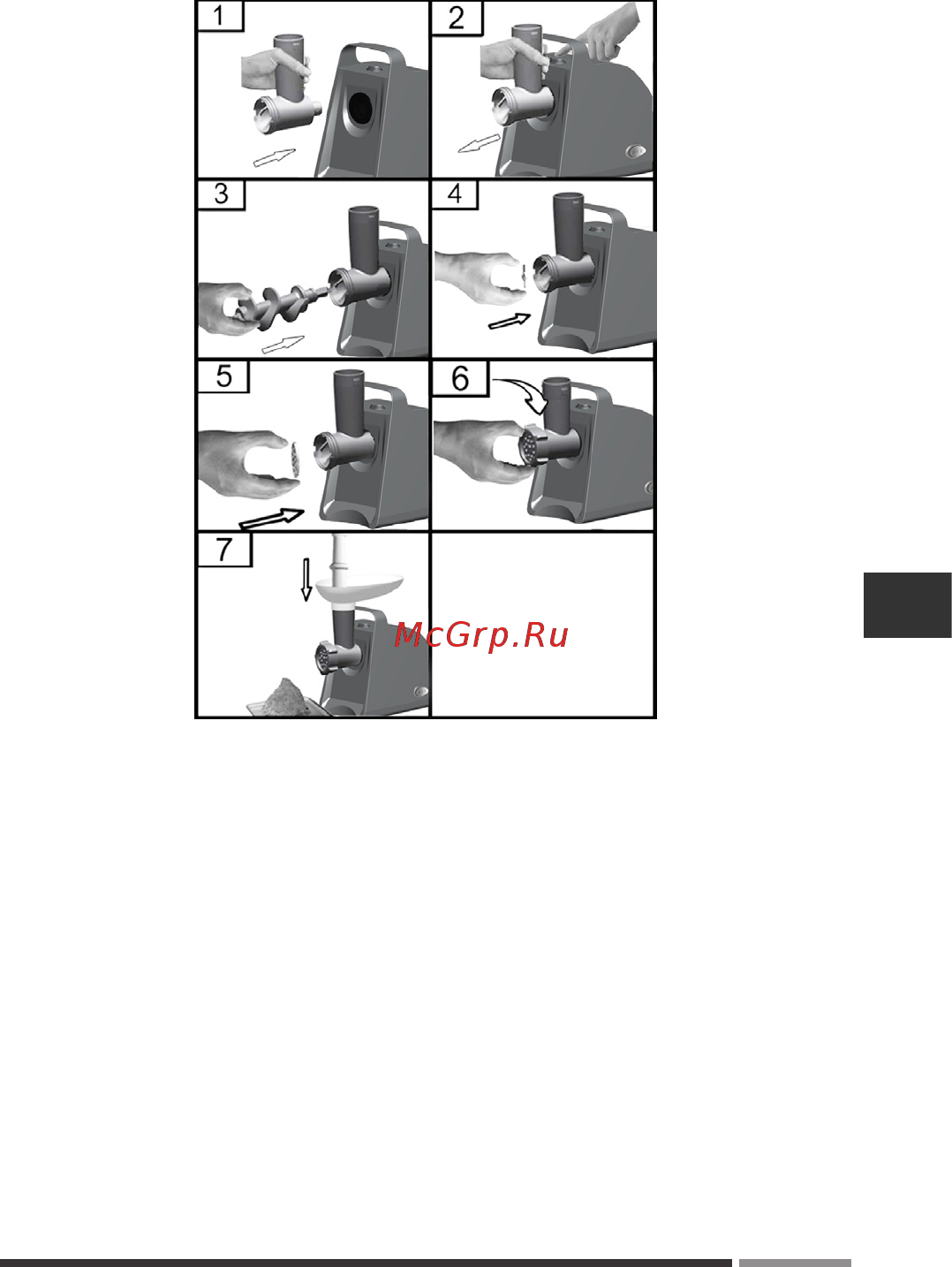

• Press the head fasten button (3) and insert the removable head (7) into

thehole(4)onthebodyasshowninFig.1.(notethetiltoftheworkhead

accordingtothepointeratthetop).

• Thenturntheworkheadcounterclockwiseuntilitlocksinplace(Fig.2).

• Insertthescrew(8)intotheremovablehead(7)andturnituntilthescrewis

fullysecuredintheworkinghead(Fig.3).

• Wearonthescrew(8)acrossedblade(9)cuttingedgeinthedirectionof

thegrates(10,11)(Fig.4).

• Aftertheblade(9),putoneofthegrates(10,11)onthescrew(8)(Fig.5).

• Installthexingring(12)byturningitclockwisewithoutpullingit(Fig.6).

• Installtheremovabletray(6)ontheremovablehead(7).

• Assembletheapplianceandplaceitonaatdrysurface.

• Makesurethatventilationopeningsonthebodyarenotblocked.
