Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
REMOTE CONT
STEERING WHEEL
REMOTE INPUT
P. CONT
ANT CONT
MUTE
Antenna terminal
Fuse (10 A)

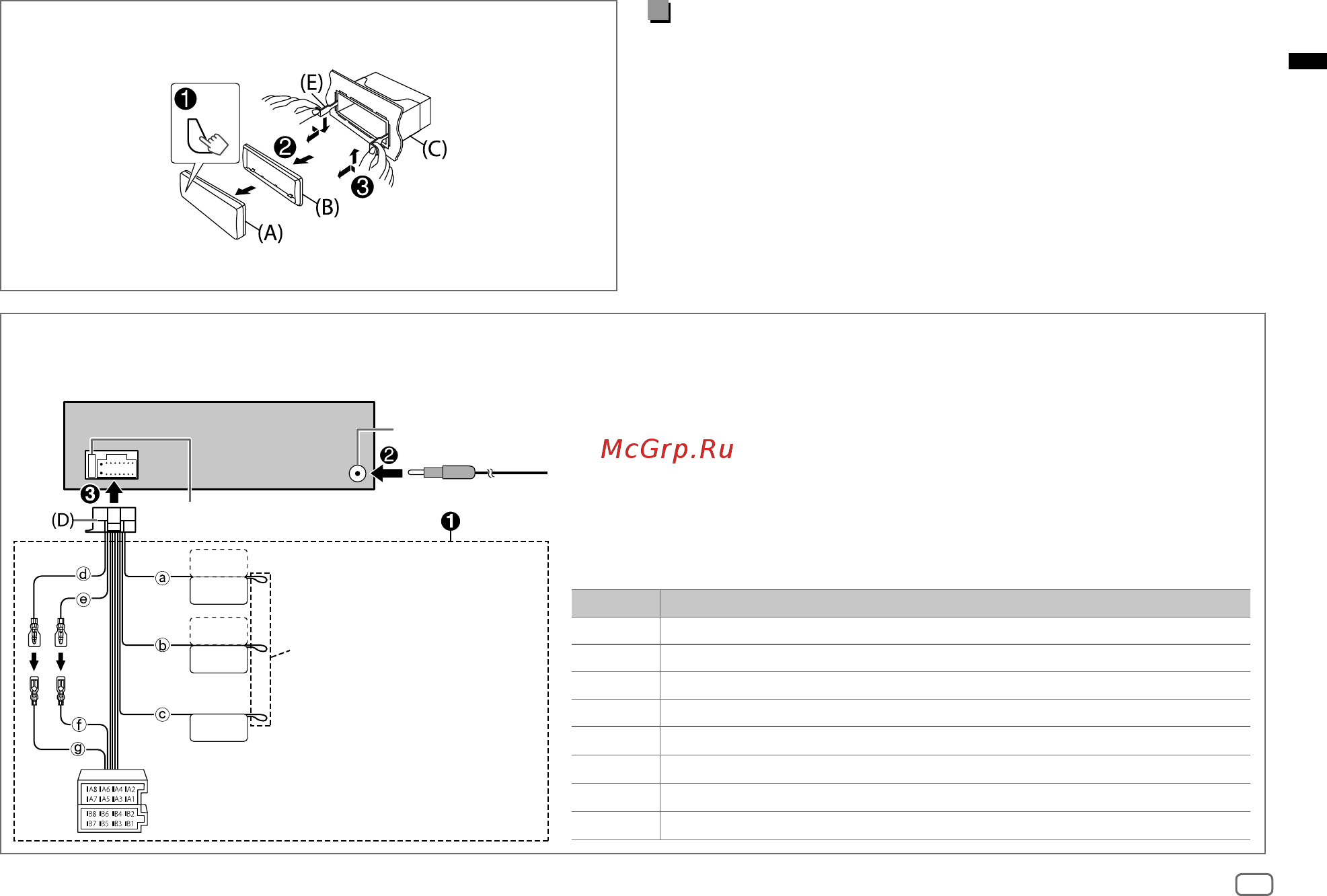

Wiring connection
Removing the unit
Part list (supplied)
(A) Faceplate (×1)
(B) Trimplate (×1)
(C) Mounting sleeve (×1)
(D) Wiring harness (×1)
(E) Extraction key (×2)
If no connections are made, do not let
the wire come out from the tab.
ISO connectors
a Light blue/yellow: To the steering wheel remote control adapter
b Blue/white: To the power control terminal when using the optional power
amplifier or to the antenna control terminal in the vehicle
c Brown: To connect the Kenwood navigation system, refer your navigation
manual
d Yellow: Battery wire
e Red: Ignition wire
f Red: A7 from ISO connector
g Yellow: A4 from ISO connector
Pin Color and function (for ISO connectors)
A4 Yellow : Battery
A5 Blue/White : Power control
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1, B2
Purple ], Purple/black [
: Rear speaker (right)
B3, B4
Gray ], Gray/black [
: Front speaker (right)
B5, B6
White ], White/black [
: Front speaker (left)
B7, B8
Green ], Green/black [
: Rear speaker (left)
JS_KWD_QSG_KMM_BT305_EN_1st Draf.indd 3JS_KWD_QSG_KMM_BT305_EN_1st Draf.indd 3 7/4/2018 11:24:17 AM7/4/2018 11:24:17 AM
