i : Additional audio source input

j : Headphone jack

k Wired RC volume control wheel

7. LOCATING

• Place the satellites symmetrically to the listeners at the distance not less than one metre.

• Place the MSS far away from TV sets and picture distortion in supersensitive monitors and TV sets is

possible.

8. INSTALLATION AND OPERATION GUIDE

WARNING! All the components should be switched off before connection.

• Connect the subwoofer and the satellites (see Fig. 3).

• Plug the mini-jack g of the wired RC into the Line-out port of the PC sound card, and the RCA-jacks

h (Fig. 2) into corresponding jacks h (Fig. 1) on the subwoofer. Connect an audio source (MP3 player

etc.) with a mini-jack to mini-jack signal cable via the corresponding jack i on the wired RC. Connect

your headphones to the wired RC jack j.

• To connect the MSS to DVD/CD-player or TV use 2RCA to mini-jack signal cable (included). Plug the

mini-jack of signal cable to the jack i on the wired RC, and the RCA-jacks – to the OUTPUT of the DVD/

CD-player or TV.

• Plug the power cord f into a mains socket.

• Set the volume control knobs to minimum and switch on power on the subwoofer.

• Adjust master volume and subwoofer volume levels.

• To improve sound quality, use Line-Out port of your sound card.

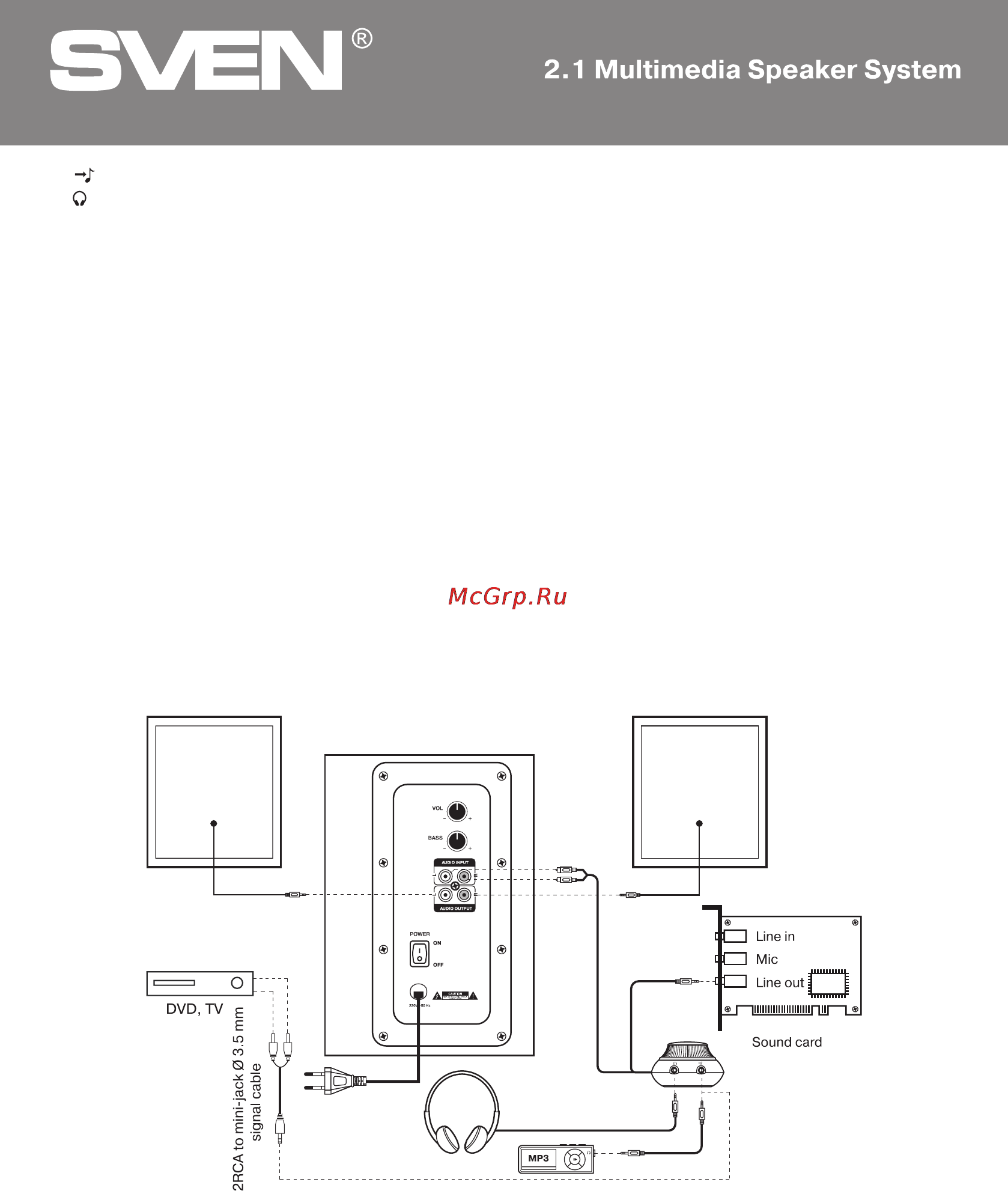

Fig. 3. Connection diagram
