TL-WA500G 54M Wireless Access Point User Guide

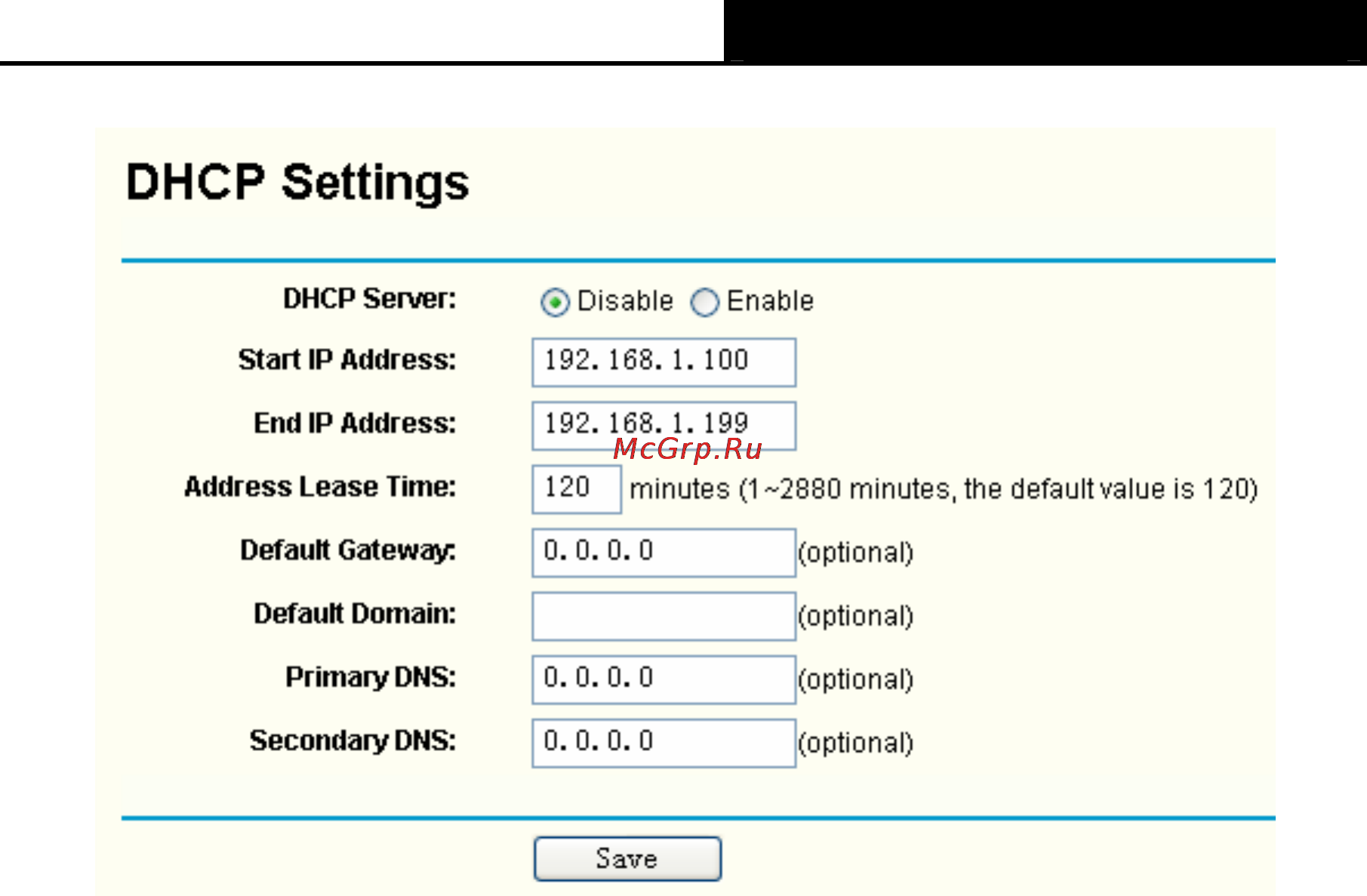

Figure 4-21 DHCP Settings
¾ DHCP Server - Selecting the radio button before Disable/Enable will disable/enable the
DHCP server on your AP. The default setting is Disable. If you disable the Server, you must
have another DHCP server within your network or else you must manually configure the
computer.
¾ Start IP Address - Enter an IP address for the DHCP Server to start with when assigning IP
addresses. 192.168.1.100 is the default start IP address.
¾ End IP Address - Enter an IP address for the DHCP Server to end with when assigning IP
addresses. 192.168.1.199 is the default end address.
¾ Address Lease Time - Enter the amount of time for the PC to connect to the AP with its
current assigned dynamic IP address. The time is measured in minutes. After the time is up,
the PC will be automatically assigned a new dynamic IP address. The range of the time is 1 ~
2880 minutes. The default value is 120 minutes.
¾ Default Gateway (optional) - Enter the IP address of the gateway for your LAN. The factory
default setting is 0.0.0.0.
¾ Default Domain (optional) - Enter the domain name of the your DHCP server. You can leave
the field blank.
¾ Primary DNS (optional) - Enter the DNS IP address provided by your ISP. Consult your ISP
if you don’t know the DNS value. The factory default setting is 0.0.0.0.
¾ Secondary DNS (optional) - Enter the IP address of another DNS server if your ISP provides
two DNS servers. The factory default setting is 0.0.0.0.
)
Note:
To use the DHCP server function of the AP, you must configure all computers on the LAN as
"Obtain an IP Address automatically" mode. This function will take effect until the AP reboots.
31
