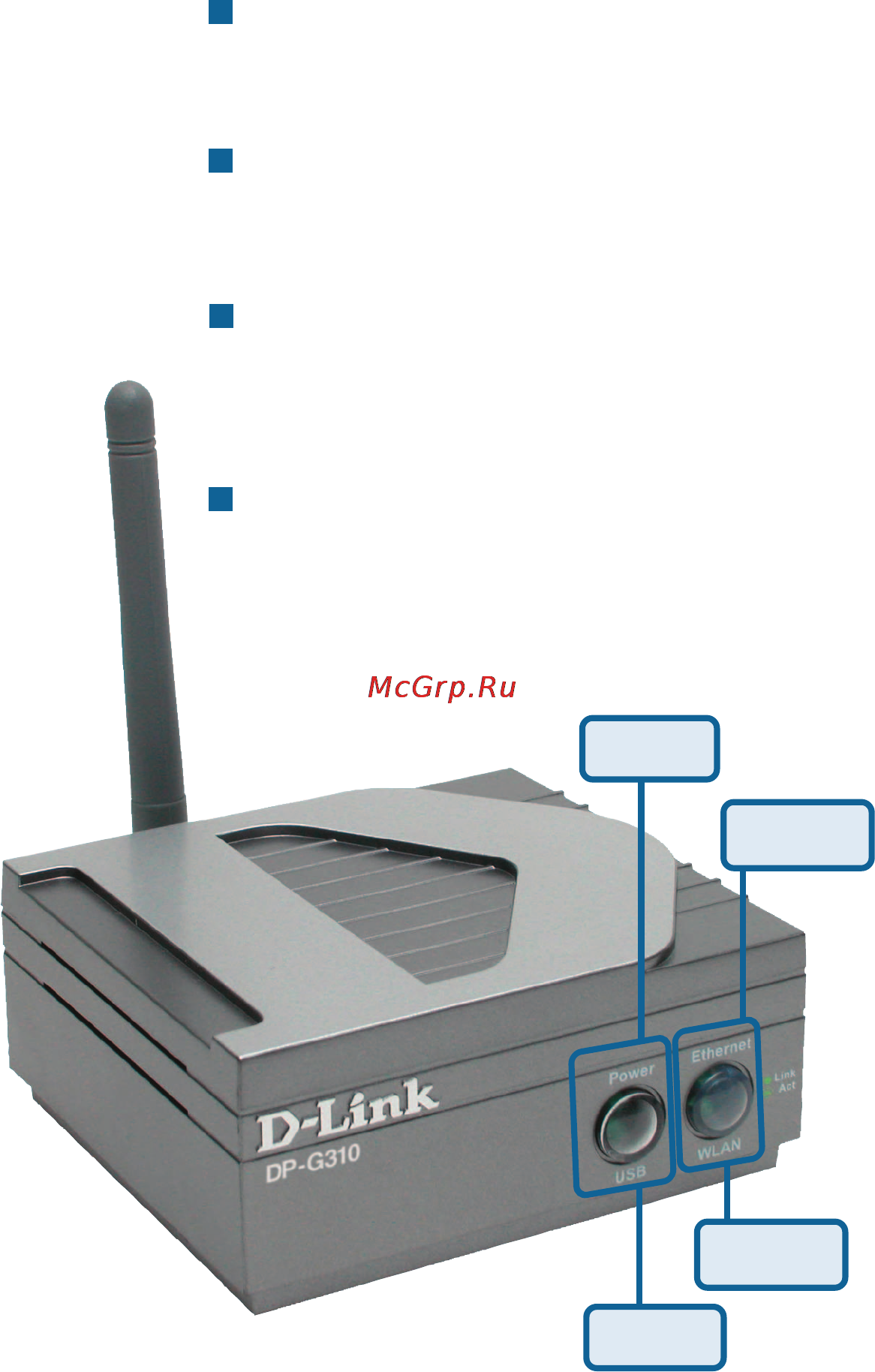

Front Panel LED Indicators
There are two front panel indicators, each holding two separate LEDs (aligned in a
vertical position). As shown below, the first indicator holds the Power and the USB
LED. The second indicator holds the Ethernet and WLAN LED. Upon boot-up, the
Power light stays on continuously and all other LEDs light up momentarily one-by-
one, then turn off.
Power
A steadily lit LED indicates proper operation of the Print
Server.
USB
A steadily lit LED indicates your USB printer is printing;
otherwise, this LED is off.
Ethernet
A steadily lit LED indicates proper network connection; no lit
LED indicates an unsuccessful network connection. A blinking
LED indicates activity (configuration or printing).
WLAN
A steadily lit LED indicates a proper wireless network
connection; no lit LED indicates an unsuccessful wireless
network connection. A blinking LED indicates activity
(configuration or printing).
