Appendix (cont.)

Using the Configuration Utility

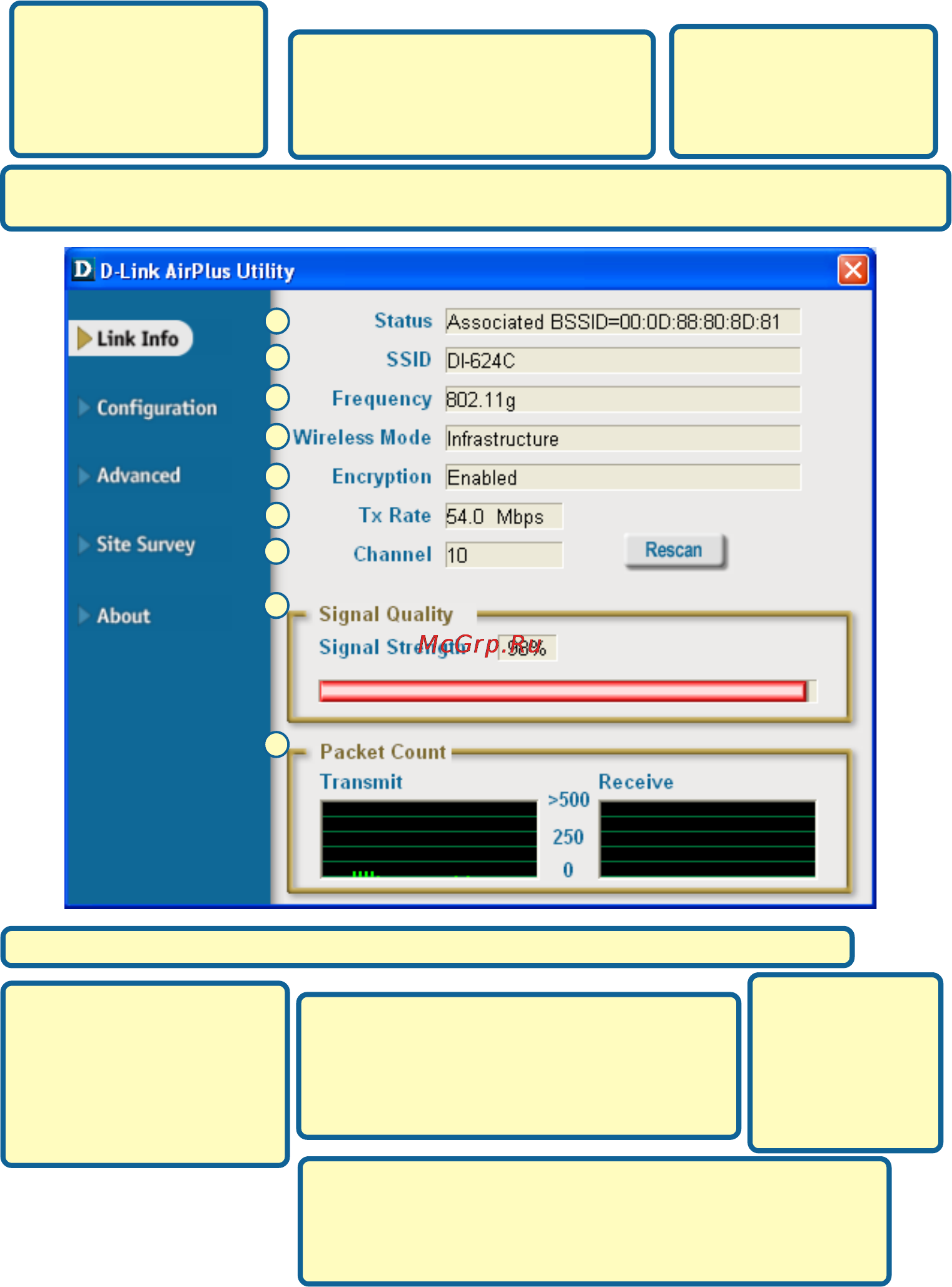

A. Status: Displays the

MAC Address of the

Access Point that is

associated with the

DWL-G650.

B. SSID

: The Service Set Identifier

is the name assigned to the

wireless network. The factory

SSID setting is set to default.

C. Frequency

: Dis-

plays the current

frequency used by

the adapter.

D. Wireless Mode: The factory setting is set to Infrastructure. Ad-Hoc mode is used for

Peer-to-Peer networking.

F. Tx Rate: The default

rate is automatically

determined by the DWL-

G650 depending on the

distance from the access

point.

H. Signal Strength: Represents the wireless signal

quality and strength between the access point and the

DWL-G650. The percentage coincides with the

graphical bar.

G. Channel: Displays the channel

information. By default, the channel is

set to 6. Please note that the DWL-G650

will automatically adjust channel

depending on the access point.

E. Encryption: Displays the current encryption status of the wireless connection.

I. Packet

Count: Graphi-

cally displays

the statistics of

data transmitted

and received.
