D-Link DWL-7100AP [25/52] Using the configuration menu continued
![D-Link DWL-7100AP [25/52] Using the configuration menu continued](/views2/1044236/page25/bg19.png)
25

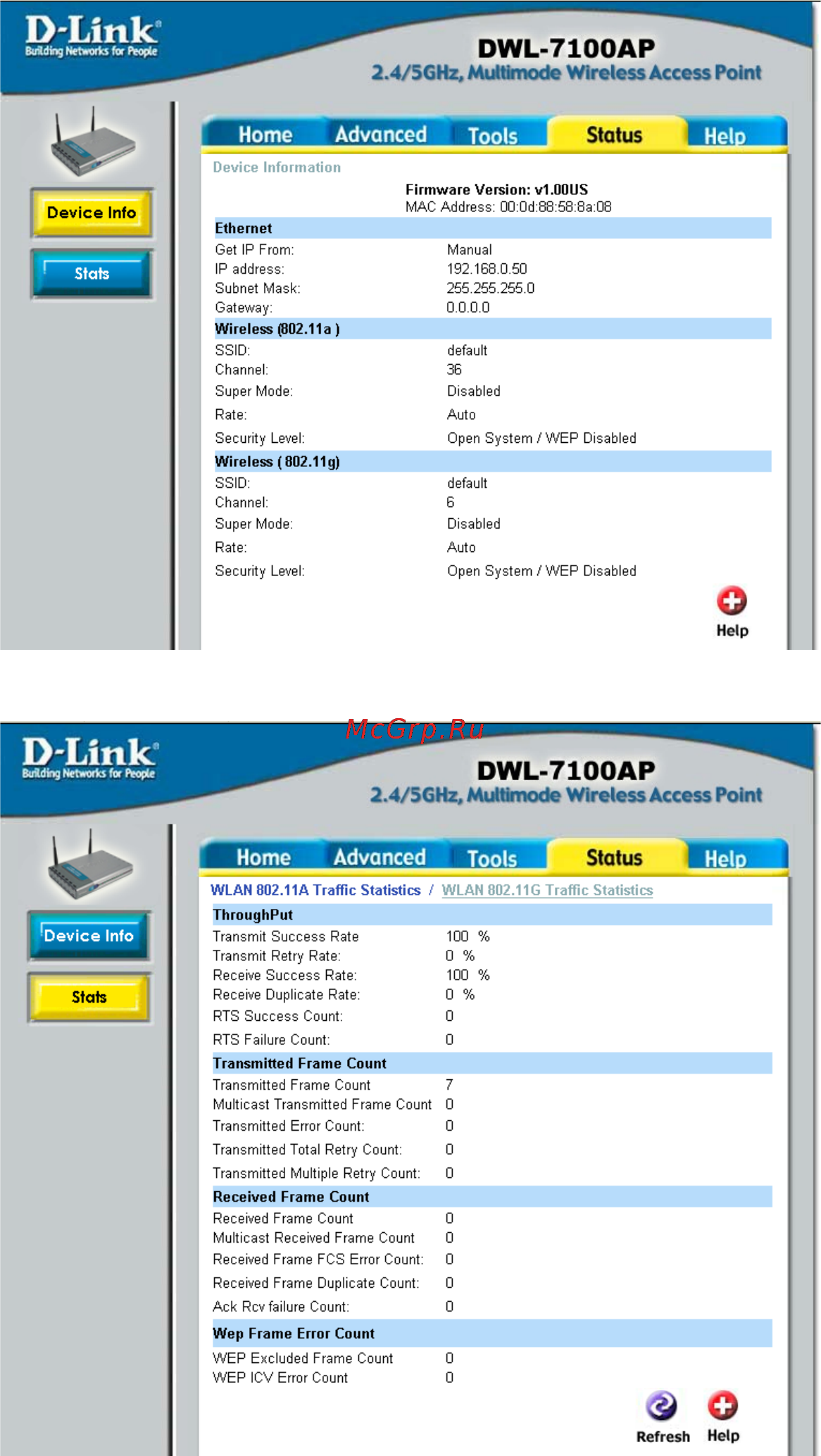

This window
displays the
network traffic
statistics for both
received and
transmitted
communications
through the
Ethernet port and
wireless connec-
tions associated
with the access
point. You may
select 802.11a or
802.11g statis-
tics.
Using the Configuration Menu (continued)
Status > Stats
Status > Device Info
This window
displays the
settings of the
DWL-7100AP, as
well as the
firmware version
and the MAC
address.
