Yamaha NS-7390 B (1шт) [3/6] Connections to your amplifier
![Yamaha NS-7390 B (1шт) [3/6] Connections to your amplifier](/views2/1442920/page3/bg3.png)
English
E-3
SPEAKERS
A
B
L
R
+
+
–
–

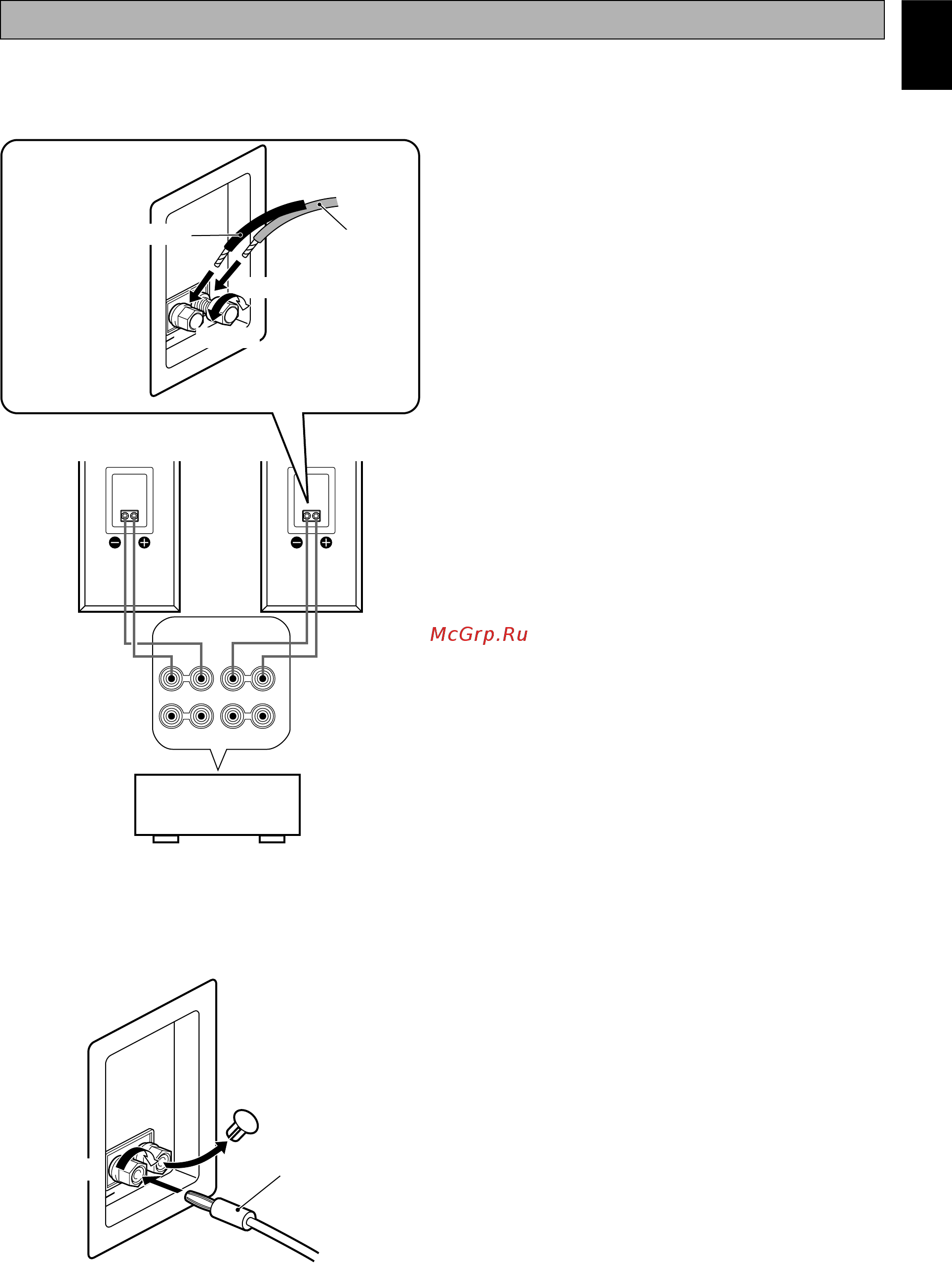

CONNECTIONS TO YOUR AMPLIFIER
Speakers output
terminals of the
amplifier
Amplifier or
Receiver
Tighten
Speaker (L)
Speaker (R)
BEFORE MAKING CONNECTIONS, MAKE SURE THAT THE AMPLIFIER IS SWITCHED OFF.
■ CONNECTIONS
• Connect the screw-type input terminals at the rear of the
speakers to the speaker output terminals of the amplifier
(or receiver) with the provided speaker cables.
• One side of the speaker cable is red and the other side is
black. Connect the (+) terminals on the amplifier (or
receiver) and speakers using the red side. Connect the
(–) terminals on both components using the black side of
the cable.
• Connect each speaker making sure not to reverse the
polarity (+, –). If the speaker is connected with reversed
polarity, the sound will be unnatural and lack bass.
How to connect:
1 Loosen the knob.
2 Insert the bare wire. [Remove the insulation coating at
the extremity of each speaker cable by twisting the
coating off.]
3 Tighten the knob and secure the cable.
Test the firmness of the connection by pulling lightly on
the cable at the terminal.
Note
Do not let the bare speaker wires touch each other as
this could damage the speaker or the amplifier, or both
of them.
When using a banana plug
<U.S.A., China and General models only>
2
3
Banana plug
1
1 Remove the cover by pulling it toward you.
2 Tighten the terminal knob.
3 Simply insert the banana plug into the terminal.
Loosen
Red (+)
Black (–)
