HansGrohe Logis 71280000 хром [4/41] Dimensions seepage35

Assembly see page 31

Spare parts(see page 36)

Special accessories (order as an

extra)

extension 35mm #13898000

Cleaning

see enclosed brochure.

Operation (see page 40)

Hansgrohe recommends not to use as drink-

ing water the ﬁrst half liter of water drawn

in the morning or after a prolonged period

of non-use.

Flow diagram

(see page 35)

Dimensions (see page 35)

Do not use silicone containing acetic acid!

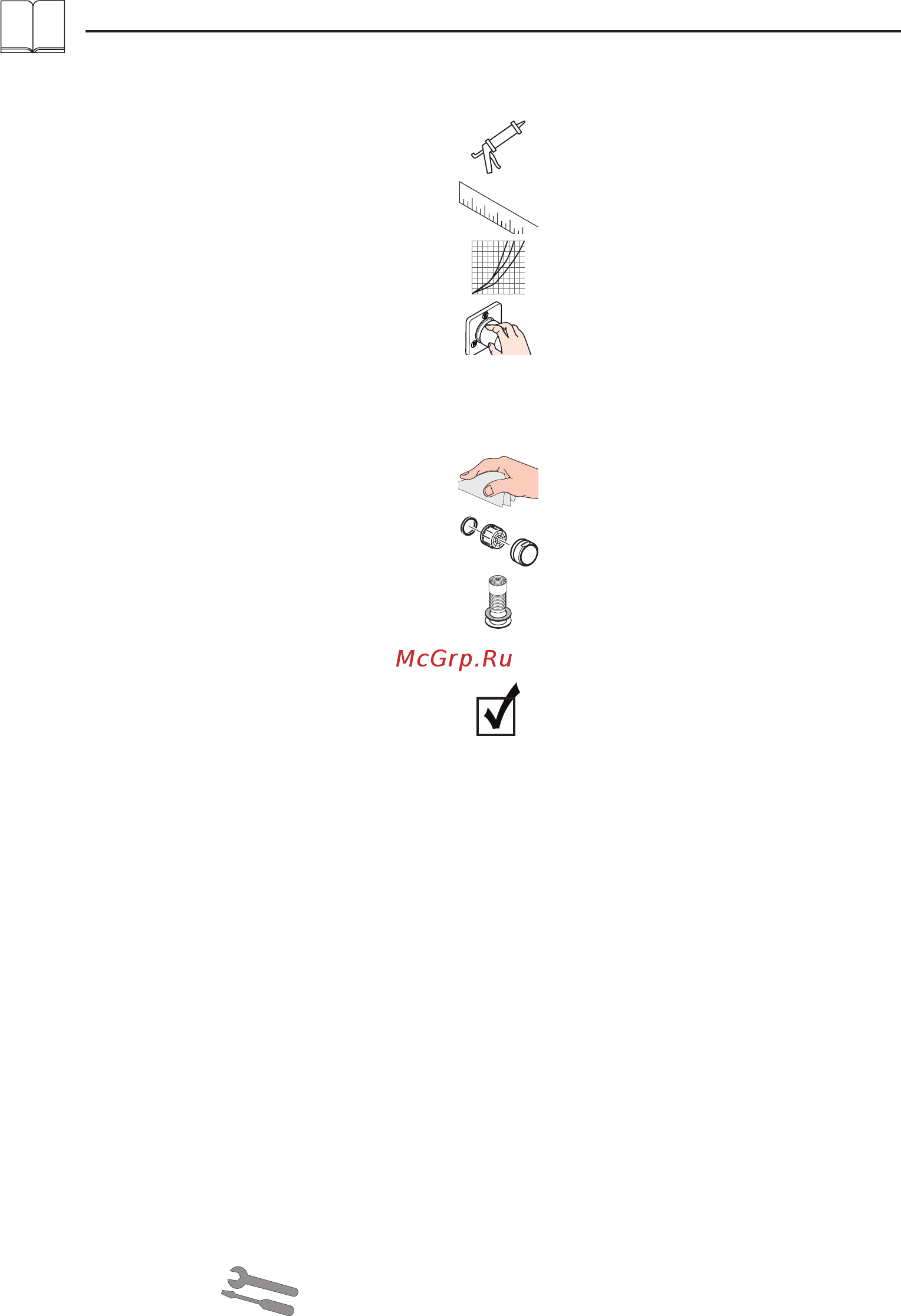

Symbol description



Safety Notes

 Gloves should be worn during installation to prevent

crushing and cutting injuries.

 The hot and cold supplies must be of equal pres-

sures.

Installation Instructions

• Prior to installation, inspect the product for transport

damages. After it has been installed, no transport or

surface damage will be honoured.

• The pipes and the ﬁxture must be installed, ﬂushed

and tested as per the applicable standards.

• The plumbing codes applicable in the respective

countries must be oberserved.

Technical Data

Operating pressure: max. 1 MPa

Recommended operating pressure: 0,1 - 0,5 MPa

Test pressure: 1,6 MPa

(1 MPa = 10 bar = 147 PSI)

Hot water temperature: max. 80°C

Recommended hot water temp.: 65°C

Thermal disinfection: max. 70°C / 4 min

The product is exclusively designed for drinking water!

English

Test certiﬁcate (see page 40)
