Tp-Link TL-WN7200ND [19/41] Advanced

150Mbps High Power Wireless USB Adapter User GuideTL-WN7200N

- 14 -

choices will appear as Figure 3-5.

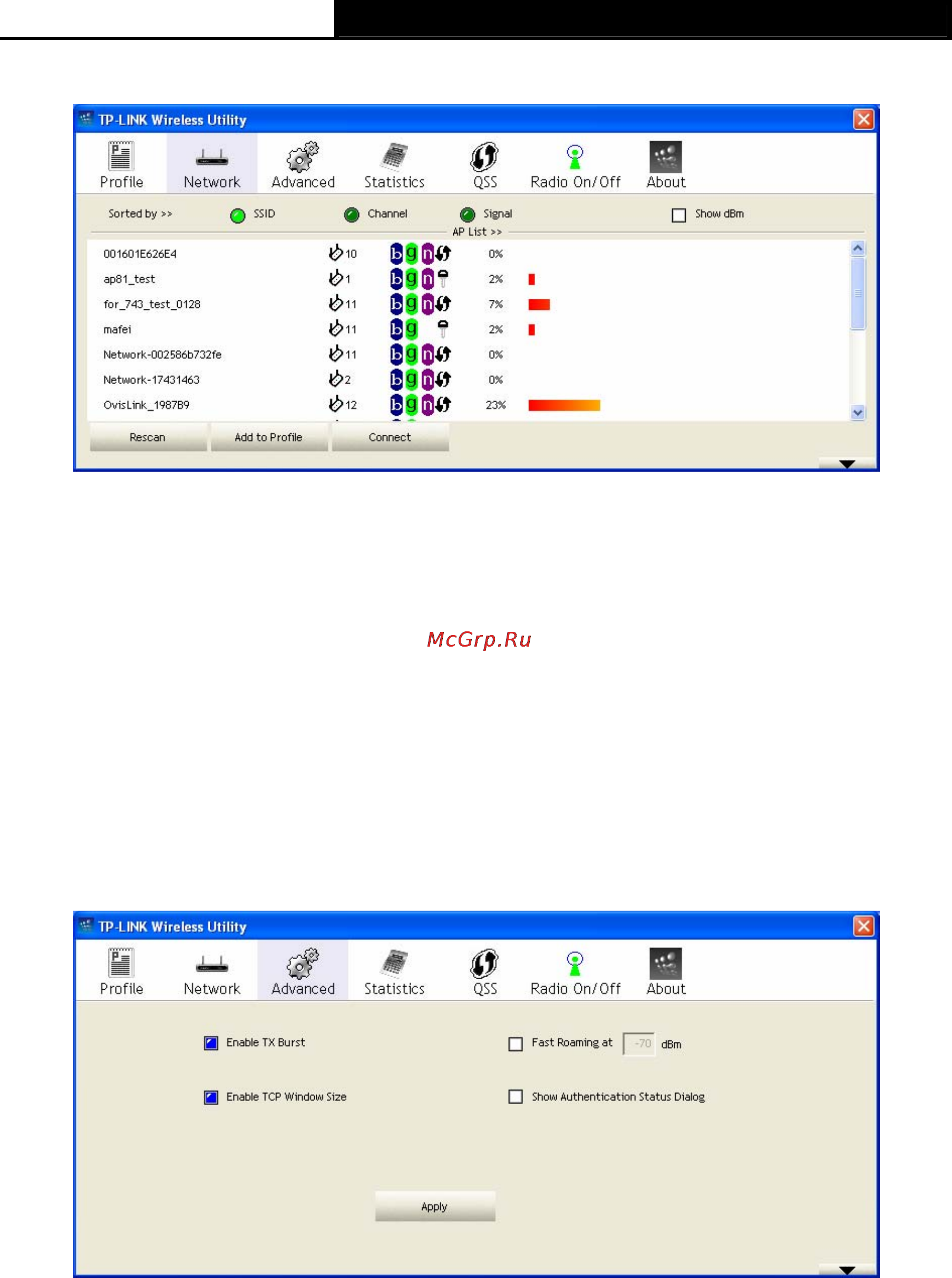

Figure 3-5 Network tab

¾ Rescan: Click the Rescan button to refresh the list at any time.

¾ Add to Profile: Highlight an SSID and click the Add to Profile button to add the network to

the profile. The continued steps are similar to add a new profile, please refer to the 3.1.1

Profile: To Add a new profile.

¾ Connect: Highlight an SSID and double-click or click the Connect button to connect to an

available network without adding it to the profile.

3.1.3 Advanced

Click the Advanced tab of the Utility and then you can choose the wireless mode on the following

screen.

Figure 3-6 Advanced

¾ Enable TX Burst - It can translate more data when it enable.

¾ Fast Roaming at – Roaming will disable when Transmit Power is below some dBm if the

function is selected.

¾ Show Authentication Status Dialog- Click the checkbox to show the Authentication Status

Dialog.

¾ Apply - Click the Apply button to save the current setting.
