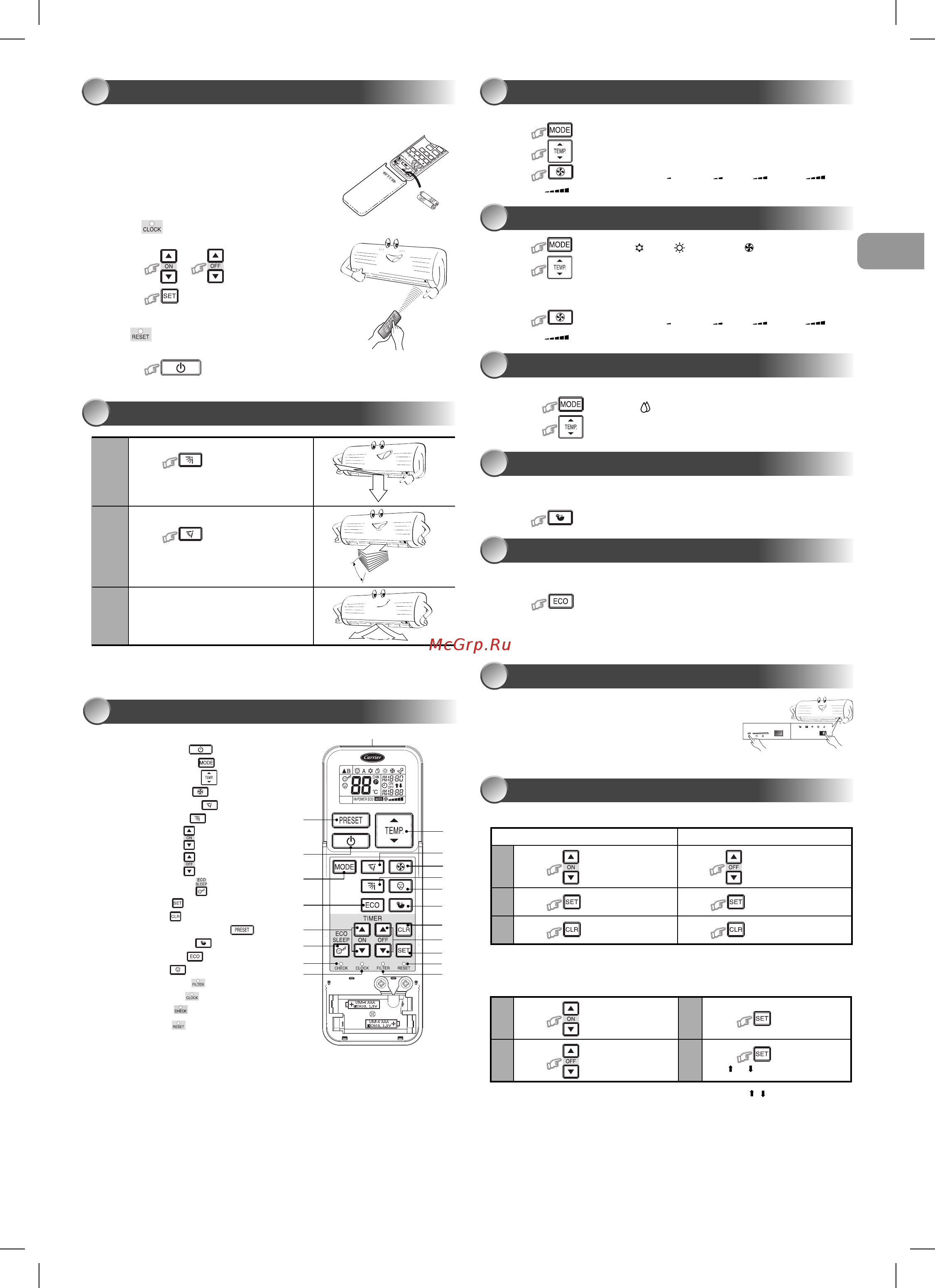

Carrier 42UQV035M/38UYV035M Белый [3/8] Airflow direction

Carrier 42UQV035M/38UYV035M Белый [3/8] Airflow direction
1
Press : Move the louver in
the desired vertical direction.
2
Press : Swing the air
automatically and press again to stop.
3
For horizontal direction, adjust
manually.
Note:
• Do not move the louver manually by others.
• The louver may automation positioning by some operation mode.
1 Infrared signal emitter
2 Start/Stop button (
)
3 Mode select button (
)
4 T emperature button (
)
5 Fan speed button (
)
6 Swing louver button (
)
7 Set louver button (
)
8 On timer button (
)
9 Off timer button (
)
! ECO Sleep button (
)
" Setup button (
)
# Clear button (
)
$ Memory and Preset button (
)
% High power button (
)
& Economy button (
)
( Quiet button (
)
) Filter reset button (
)
~ Set clock button (
)
+ Check button (
)
, Reset button (
)
1. Press
: Select Cool , Heat , or Fan only .
2. Press
: Set the desired temperature.
Cooling: Min. 17°C, Heating: Max. 30°C, Fan Only:
No temperature indication
3. Press
: Select AUTO, LOW , LOW+ , MED , MED+ ,
or HIGH .
For dehumidification, a moderate cooling performance is controlled automatically.
1. Press
: Select Dry .
2. Press
: Set the desired temperature.
To automatically control room temperature and airflow for faster cooling or heating
operation (except in DRY and FAN ONLY mode)
Press
: Start and stop the operation.
To automatically control room to save energy (except in DRY and FAN ONLY
mode)
Press
: Start and stop the operation.
Note: Cooling operation; the set temperature will increase automatically 1 degree/
hour for 2 hours (maximum 2 degrees increase). For heating operation the
set temperature will decrease.
In case of the misplaced or discharged remote control
• Pressing the RESET button, the unit can start or
stop without using the remote control.
• Operation mode is set on AUTOMATIC operation,
preset temperature is 24°C and fan operation is
automatic speed.
Set the timer when the air conditioner is operating.
Setting ON Timer Setting OFF Timer
1
Press
:
Set the desired ON
timer.
Press
: Set the desired OFF
timer.
2
Press
: Set the timer. Press : Set the timer.
3
Press
: Cancel the timer. Press : Cancel the timer.
Daily timer allows the user to set both the ON & OFF timers and will be
activated on a daily basis.
Setting Everyday T
imer
1
Press
: Set the ON timer.
3
Press .
2
Press
: Set the OFF timer.
4
Press
button during
the ( or ) mark flashing.
• During the every day timer is activating, both arrows (
, ) are indicated.
Note:
• Keep the remote control in accessible transmission to the indoor unit;
otherwise, the time lag of up to 15 minutes will occur.
• The setting will be saved for the next same operation.
Preparing Filters
1. Open the air inlet grille and remove the air filters.
2. Attach the filters. (see detail in the accessory sheet).
Loading Batteries (when use wireless operation.)
1. Remove the slide cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (–) positions.
Clock Setup
1. Push
by tip of the pencil.
If timer indication is flashing, go to the next step 2.
2. Press
or : adjust the time.
3. Press
: Set the time.
Remote Control Reset
Push
by tip of the pencil or
1. Remove the battery.
2. Press
.
3. Insert the battery.
PREPARATION BEFORE USE
2
AIRFLOW DIRECTION
3
REMOTE CONTROL
4
To automatically select cooling, heating or fan only operation
1. Press
: Select A.
2. Press
: Set the desired temperature.
3. Press
: Select AUTO, LOW , LOW+ , MED , MED+ ,
or HIGH
.
AUTOMATIC OPERATION
5
COOLING / HEATING / FAN ONLY OPERATION
6
DRY OPERATION
7
Hi-POWER OPERATION
8
ECO OPERATION
9
TEMPORARY OPERATION
10
TIMER OPERATION
11
4
5
%
(
9
)
"
,
#
~
8
1
$
2
3
!
&
+
6
7
Note:
• The provided Remote Controller is a wireless type, which also can be used as
a wire. Please see “How to Connect The Remote Controller for Wired
Operation”, located in installation instruction, in case of wired control is required.
• In wire operation, remote controller will return to initial condition (PRESET,
TIMER and CLOCK will return to initial condition) when user shutdown power
supply of Air conditioner.
EN
