Hyundai H-TV2506PF [5/55] Description and preparation

1. DESCRIPTION AND PREPARATION

1.1 INSTALLATION OF ANTENNA

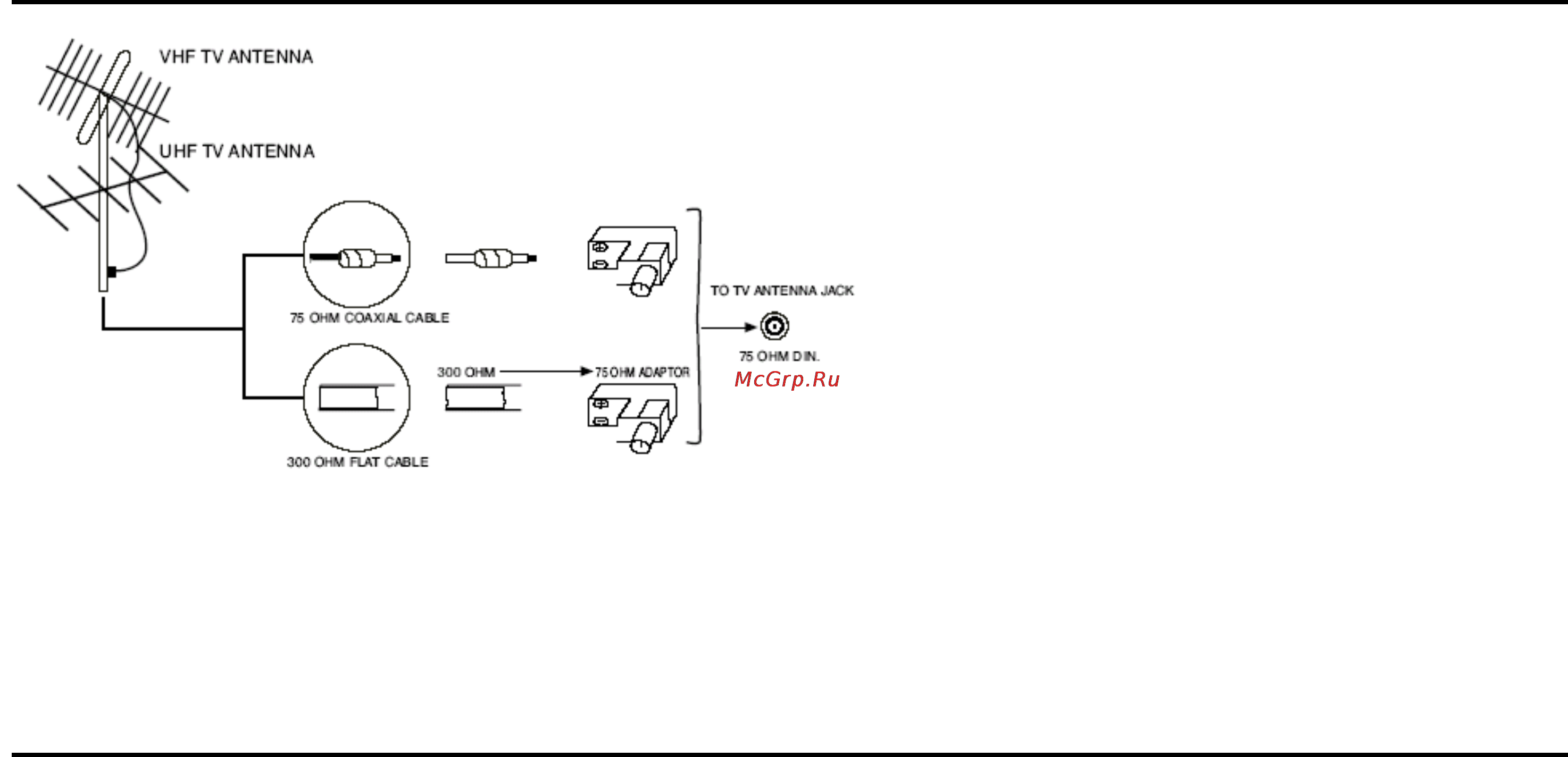

Connect the 75 OHM coaxial cable from the antenna to the antenna jack on the rear panel, as shown above.

NOTE:

For better reception, especially in outlying area or where ghost or interference happens, an external roof-mounted antenna is recommended.

For UHF TV reception, use the specified UHF antenna. Consult the local sale dealer.

When using 300 OHM flat cable, a 300 OHM - 75 OHM adapter should be adopted for a proper connection to the antenna jack.

1.2 POWER CONNECTION

Plug the AC cord into an AC outlet.

NOTE:

This unit should be operated from a household 180-240V, ~50Hz.

When you disconnect the power supply cord, pull it out by the plug. Never pull the cord itself.
