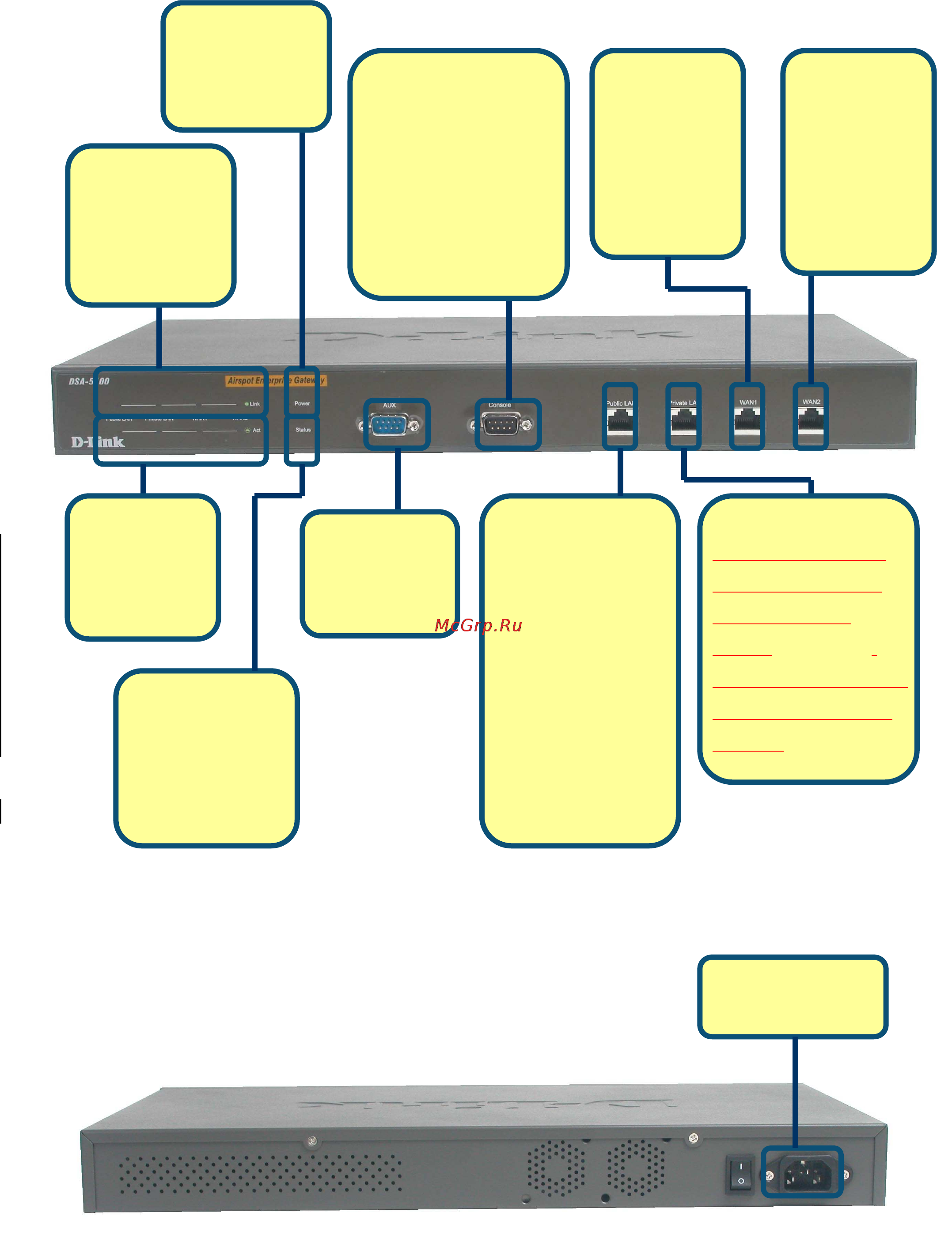

Product overview (Front)
Product overview (Back)
Public LAN port -
can be connected to
the open network
environment
managed by the
system or WLAN ,
and requires
authentication before
logging on to the
Internet.
Power
Socket:
Power Cord Plug
Status
LED
–
After boot up:
Black: run BIOS.
Blink
: run OS.
Solid light:
System ready.
WAN1 port -
can be
connected to
the Internet or
Intranet by
Switch.
Link LEDs
–
stands for being
connected to
RJ45 connectors
CONSOLE Port
–
For resetting to
factory defaults, or
reconfiguring the
device. For
Advanced users
only!
ACT LEDs –
stands for
transmitting
data.
AUX Port
–
Reserved for
future usage
Private LAN port
–
can be connected to
the trustful Intranet
environment by
Switch or Ethernet
without authentication
for logging on to the
Internet.
WAN2 port -
can be
connected to
the Internet or
Intranet by
Switch.
POWER LED -
Solid light:
Power is on
