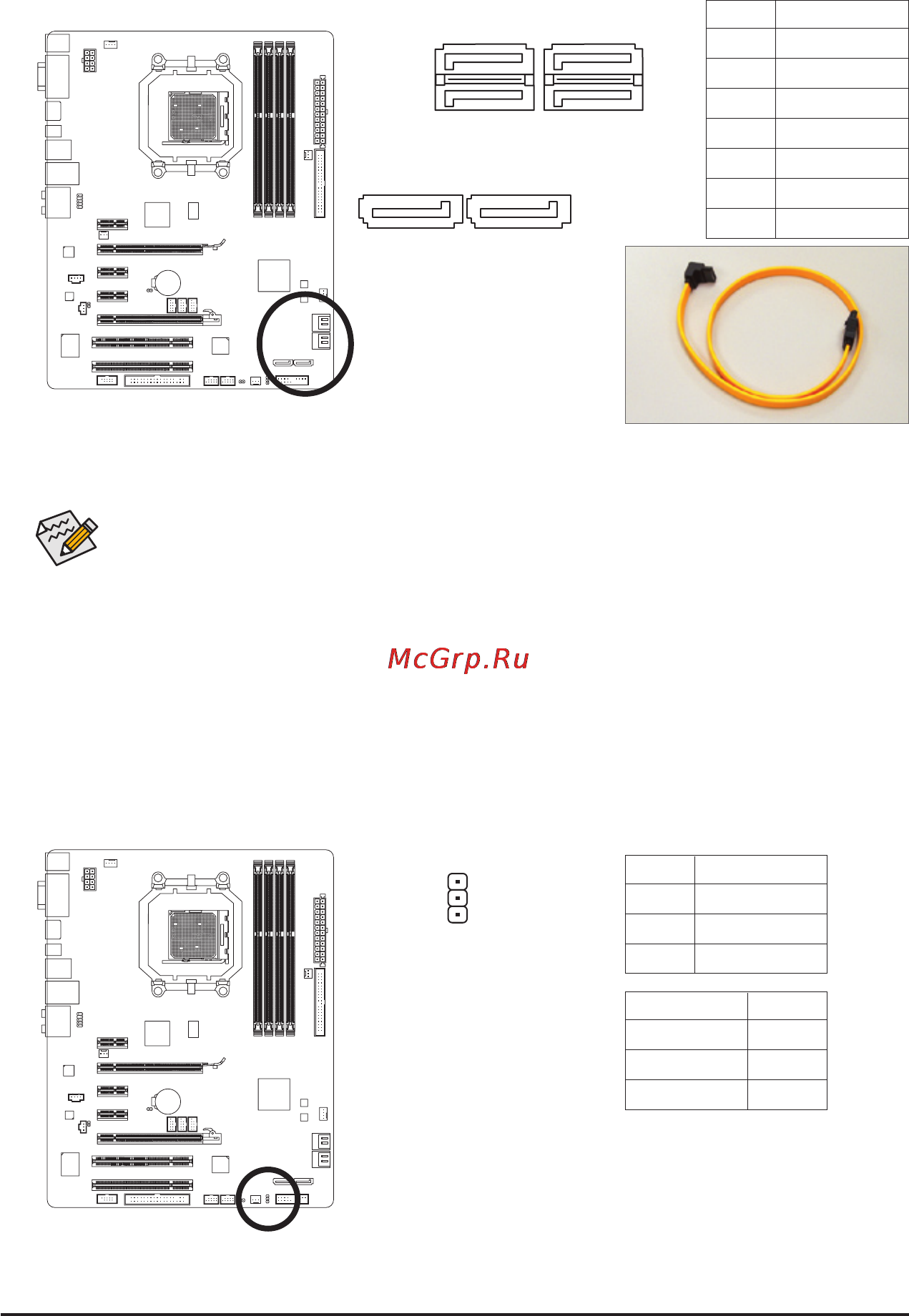

Hardware Installation - 28 -
10) PWR_LED (System Power LED Header)
This header can be used to connect a system power LED on the chassis to indicate system power
status. The LED is on when the system is operating. The LED keeps blinking when the system is in S1
sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).
Pin No. Denition
1 MPD+
2 MPD-
3 MPD-
System Status LED
S0 On
S1 Blinking
S3/S4/S5 Off
8) SATA2_0/1/2/3/4/5 (SATA 3Gb/s Connectors, Controlled by AMD SB750)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device. The AMD SB750 controller supports RAID 0, RAID 1,
RAID 5, RAID 10, and JBOD. Refer to Chapter 5, "Conguring SATA Hard Drive(s)," for instructions on
conguring a RAID array.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
• A RAID 0 or RAID 1 conguration requires at least two hard drives. If more than two hard
drives are to be used, the total number of hard drives must be an even number.
• A RAID 5 conguration requires at least three hard drives. (The total number of hard drives
does not have to be an even number.)
• A RAID 10 conguration requires at least four hard drives and the total number of hard drives
must be an even number.
Please connect the L-shaped end of
the SATA 3Gb/s cable to your SATA
hard drive.
1 7
SATA2_0 SATA2_1
7 1
7 1
SATA2_5SATA2_3
SATA2_4SATA2_2
1
