ENGLISH
7
www.timberk.com e instant water heaterlectric
5
6
7
8
9
10

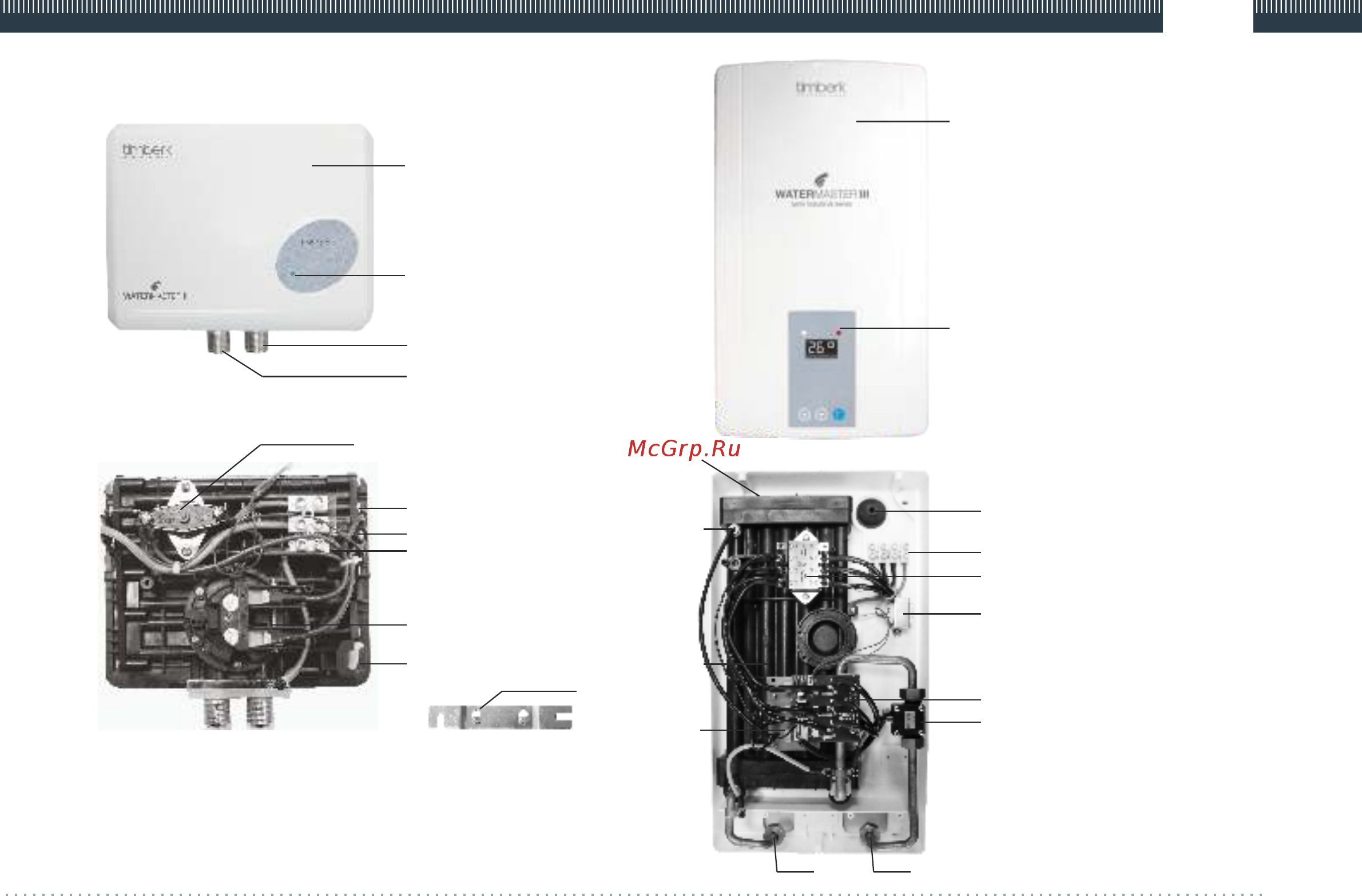

The design of WATERMASTER II Series water heater is given in Figure 3, 4.
Fig. 3
1
2
3
4
1. Front panel
2. Indicating lamp
3. Inlet nozzle
4. Outlet nozzle
5. Temperature switch
6. Spiral heating element
7. Heating flask
8. Junction block
9. Hydraulic flow sensor
10. Inlet opening for electric
cable
11. Wall mounting bracket
The design of WATERMASTER III Series water heater is given in Figure 5, 6.
Fig. 5
1. Front panel
2. Control panel
3. Inlet nozzle
4. Outlet nozzle
5. Electronic flow sensor
6. Power board 1
7. Power board 2
8. Temperature switch and
pressure sensor
9. Spiral heating element
10. Heating flask
11. Junction block
12. Electronic temperature
sensor
13. Inlet opening for
electric cable
14. Transformer
1
2
Fig. 4
11
Fig. 6
34
5
6
7
8
9
10
11
12
13
14
