1. DESCRIPTION AND PREPARATION

1.1 INSTALLATION OF ANTENNA

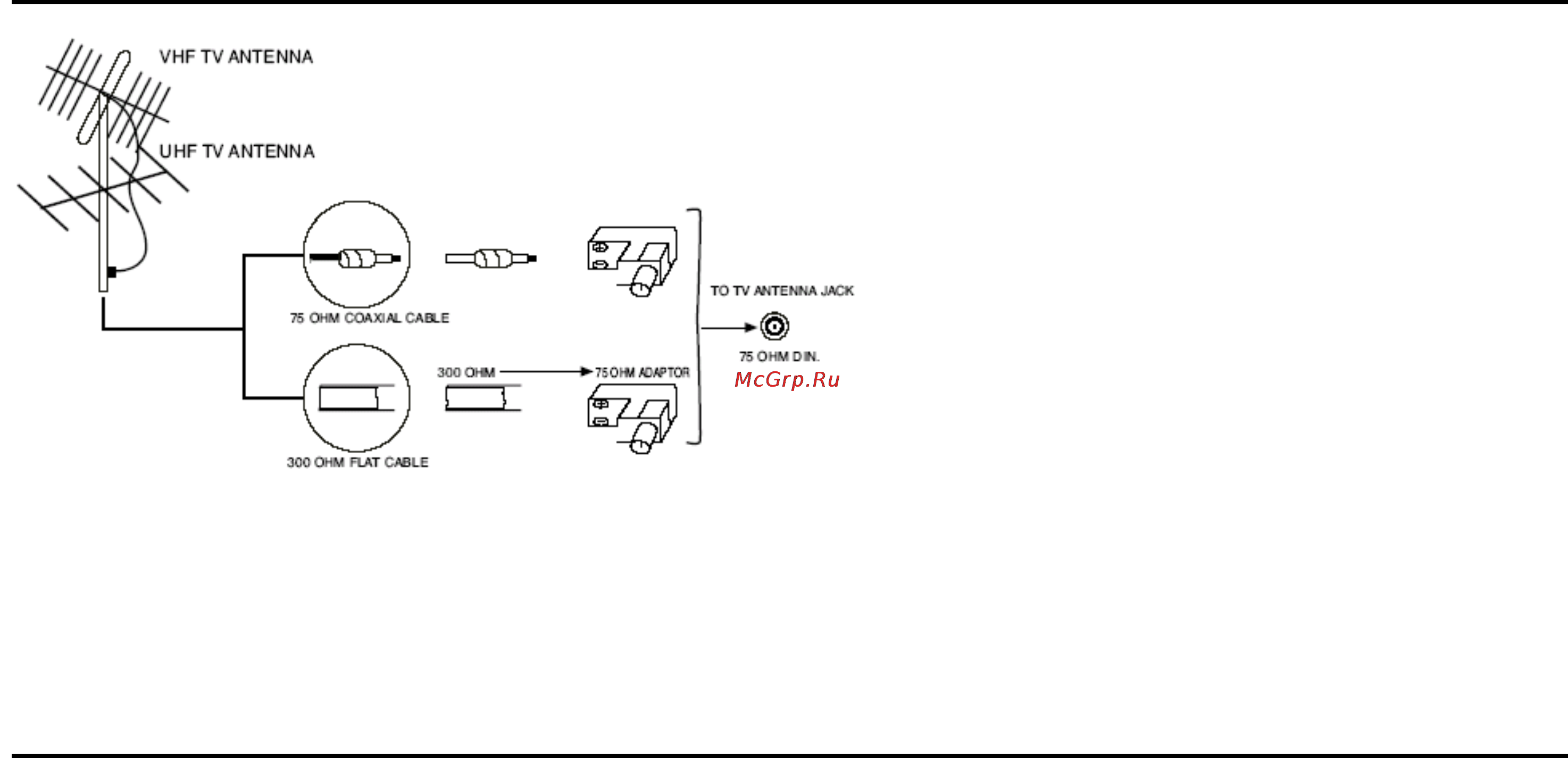

Connect the 75 OHM coaxial cable from the antenna to the antenna jack on the rear panel, as shown above.

NOTE:

· For better reception, especially in outlying area or where ghost or interference happens, an external roof-mounted antenna is recommended.

· For UHF TV reception, use the specified UHF antenna. Consult the local sale dealer.

· When using 300 OHM flat cable, a 300 OHM - 75 OHM adapter should be adopted for a proper connection to the antenna jack.

1.2 POWER CONNECTION

Plug the AC cord into an AC outlet.

NOTE:

· This unit should be operated from a household 180-240V, ~50Hz.

· When you disconnect the power supply cord, pull it out by the plug. Never pull the cord itself.
