GA-MA770T-UD3 (rev.1.1)
Инструкция по эксплуатации Страница: 7

Gigabyte GA-MA770T-UD3 (rev.1.1) [7/100] Ga ma770t ud3 us3 motherboard layout

- 7 -

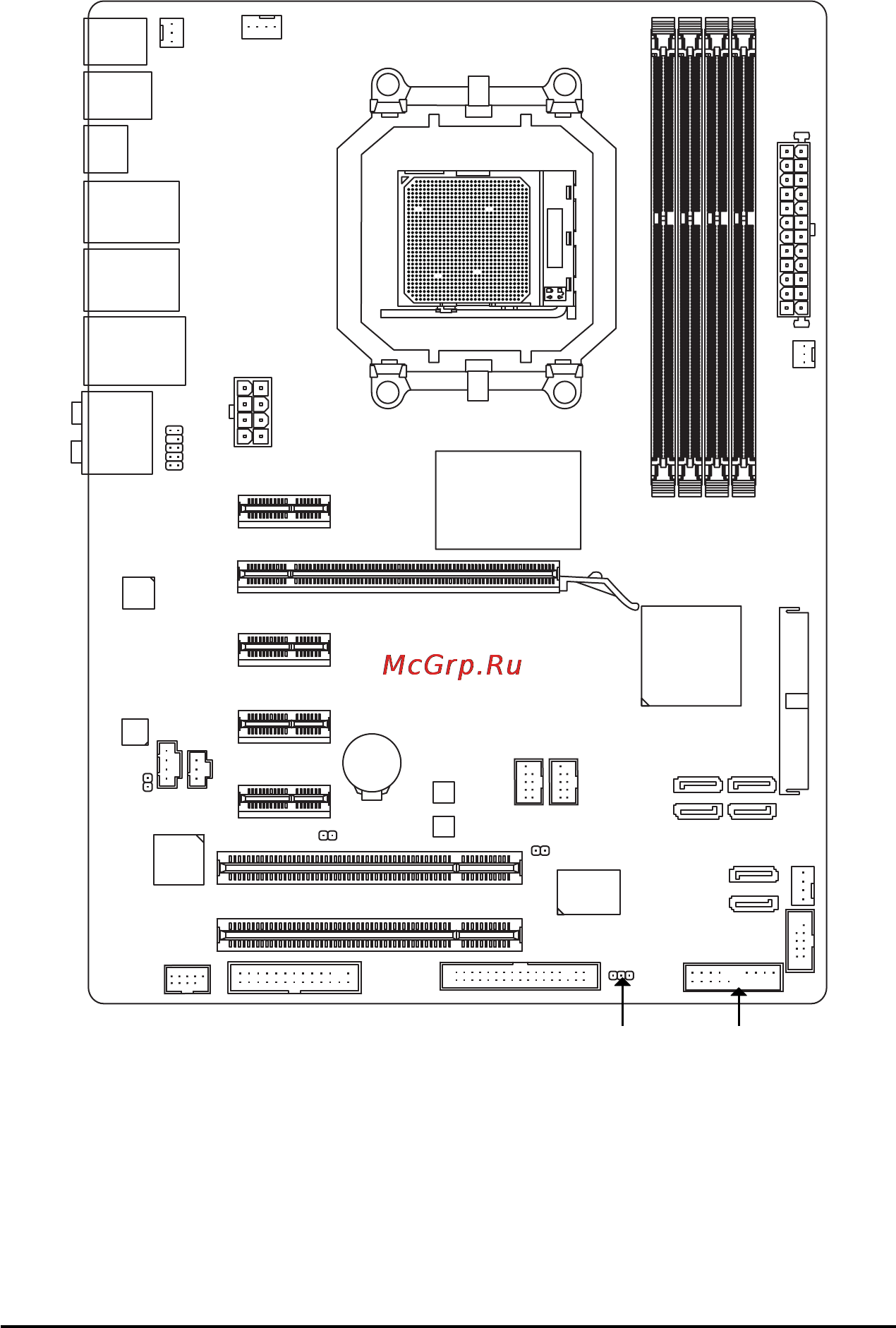

GA-MA770T-UD3/US3 Motherboard Layout

KB_MS

CPU_FAN

ATX

GA-MA770T-UD3/US3

CD_IN

F_AUDIO

AUDIO

M_BIOS

PCIEX16

PCIEX1_1

F_USB2

IDE

PCIEX1_2

SPDIF_IN

DDR3_1

DDR3_2

DDR3_3

DDR3_4

BAT

F_PANEL

IT8720

SATA2_3

ATX_12V_2X4

AMD 770

AMD SB710

PWR_LED

FDD

PCIEX1_4

SATA2_2

PCI1

PCI2

CLR_CMOS

LPT

CODEC

RTL8111D/E

PWR_FAN

SYS_FAN1

F_USB1

SATA2_1

SATA2_0

SYS_FAN2

RCA_SPDIF

R_USB

SPDIF_OUT

USB_1394_1

USB_1394_2

USB_LAN

Socket AM3+/AM3

PCIEX1_3

F_1394

TSB43AB23

B_BIOS

SATA2_5

SATA2_4

COMA

"*" The GA-MA770T-UD3 adopts All-Solid Capacitor design.
