DVG-5004S User’s Manual VoIP Gateway Configuration
D-Link Systems, Inc. 17

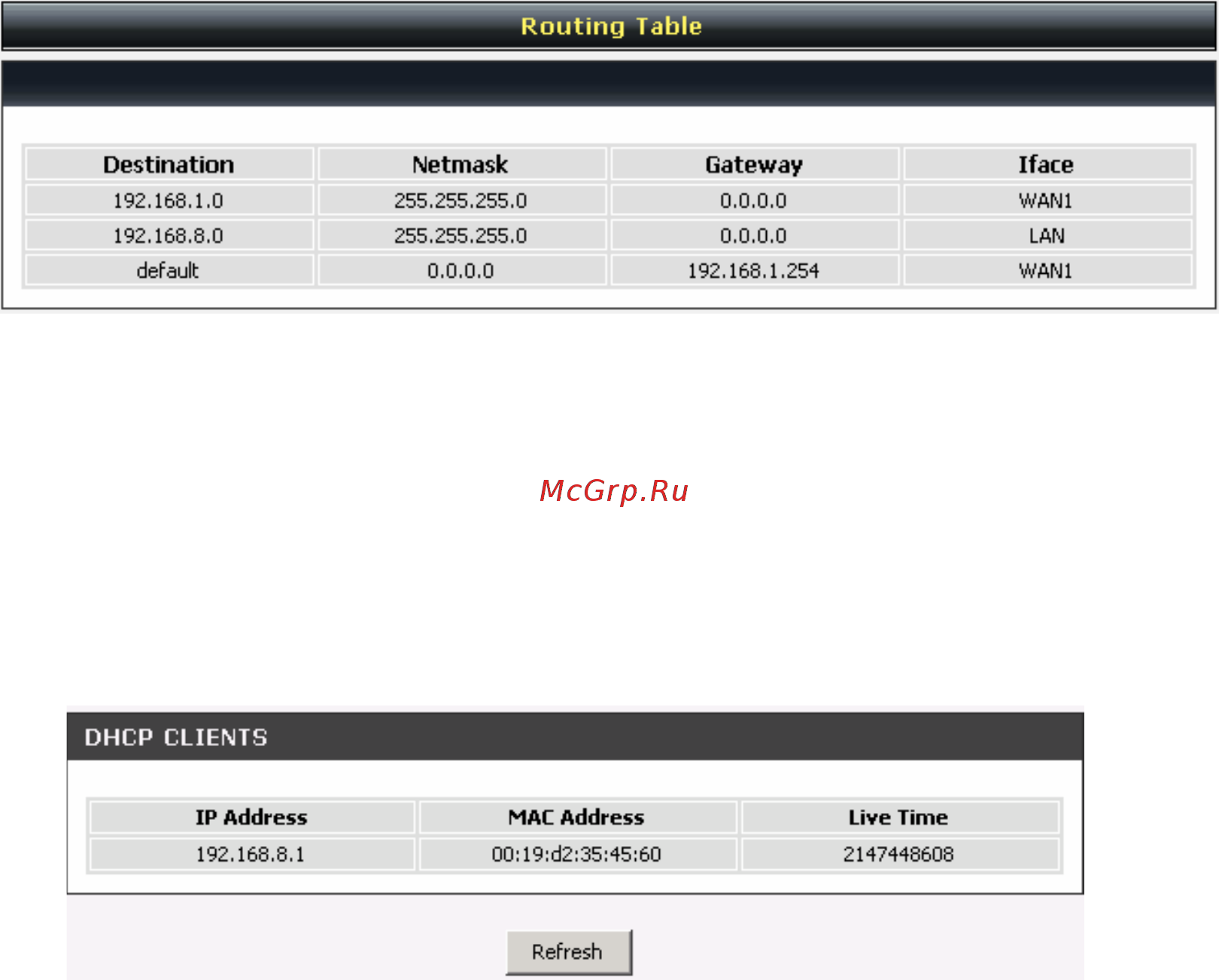

3-1-4 Routing Table
Status → Routing Table
It displays routing table of DVG-5004S.
3-1-5 LAN Client
The DHCP Clients table displayed LAN device that has already been assigned an address from
DVG-5004S. You can check if the DHCP client has obtain an IP address.
Status → LAN Client
