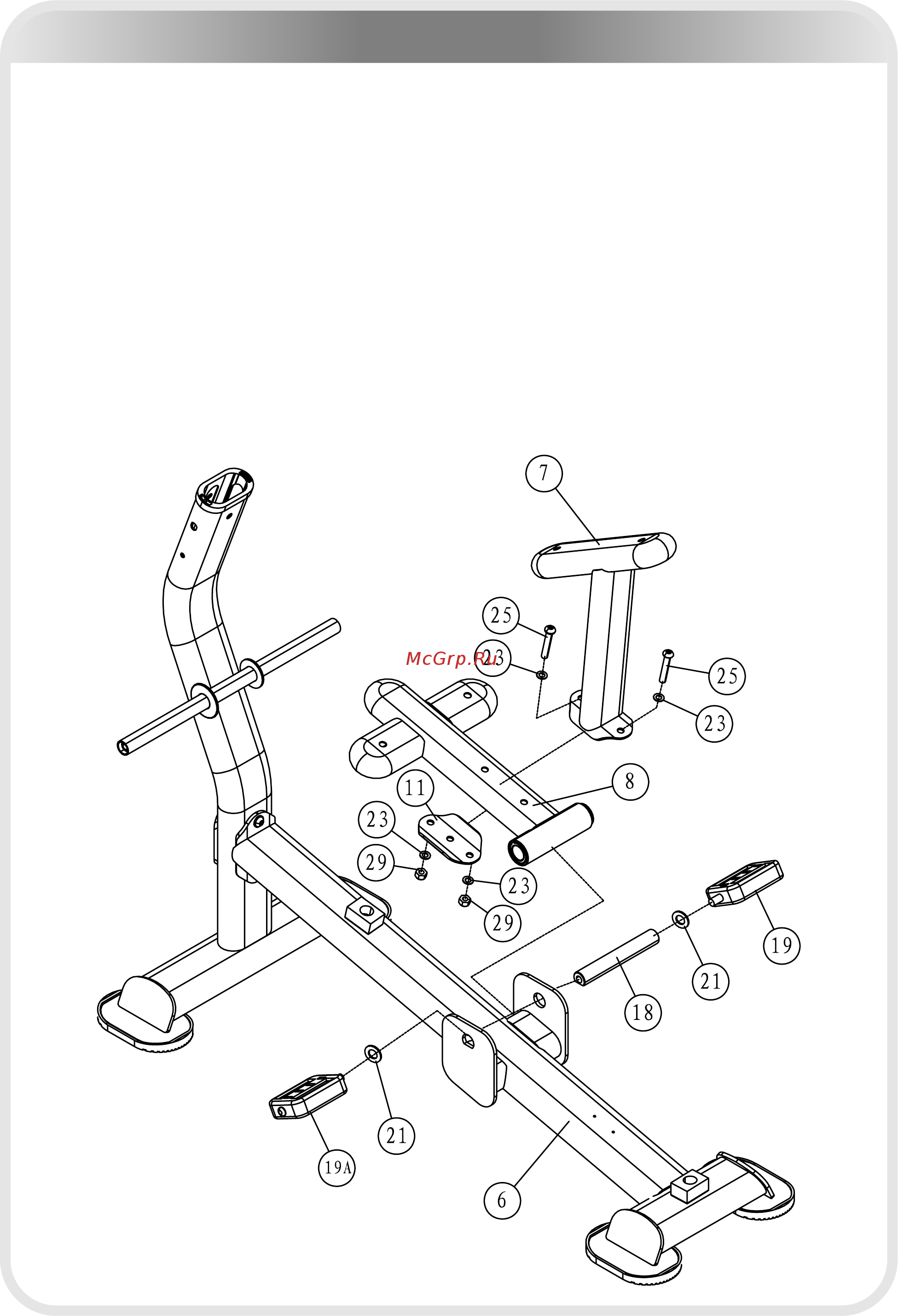

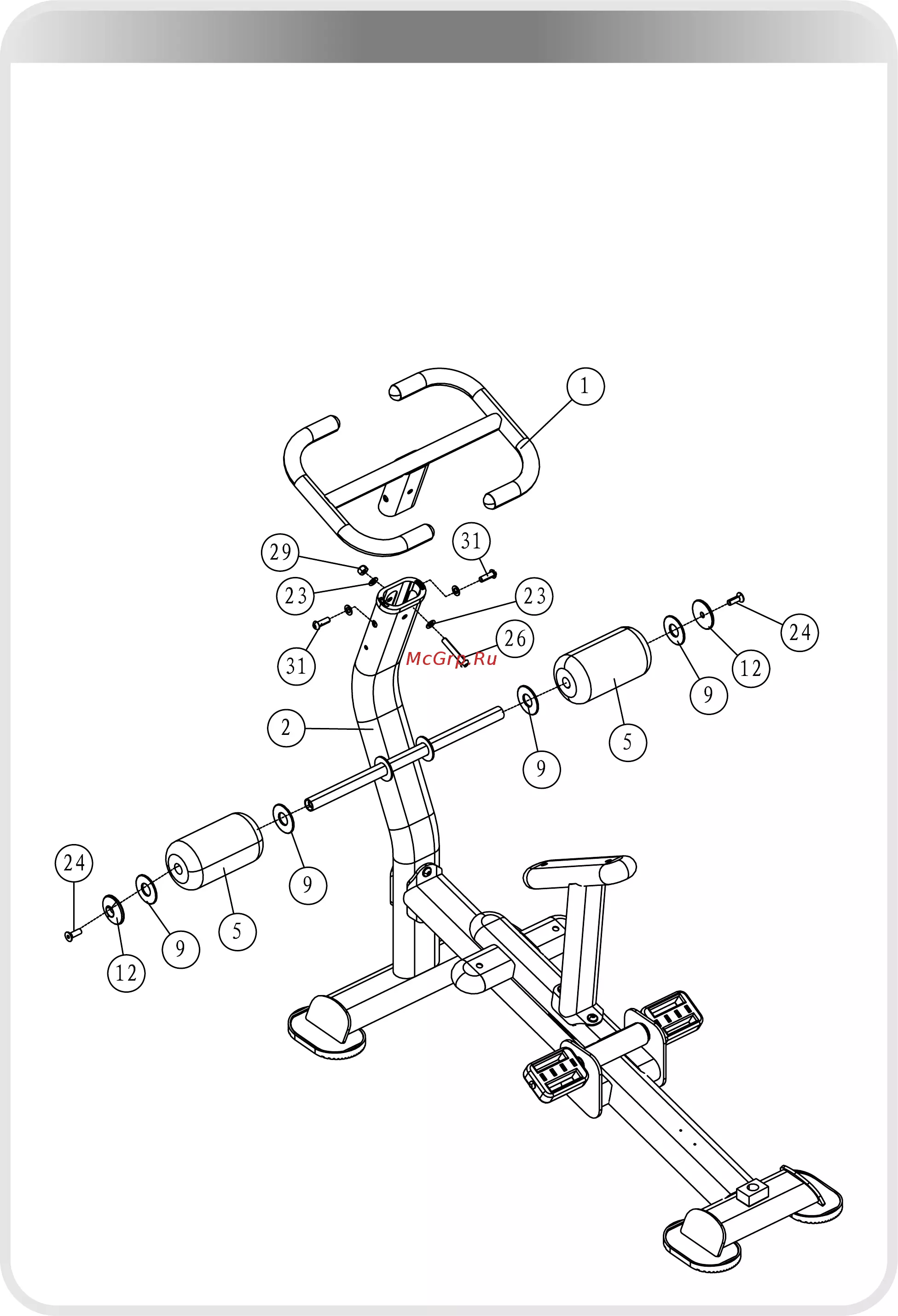

Assembly

Step 2

Attach the Seat Pad Support (#7) and the Knee Pad Support (#8) to the Main

Support (#6) using:

one Backing Plate (#11) two M10*65 BHCS (#25)

four Φ11*Φ20*2 Flat Washers (#23) two M10 Nylon Lock Nuts (#29)

two Big Washers (#21) one Φ25 Shaft (#18)

two Pedals (#19)

NOTE:

1. The Pedal have the right screw on hand and the left screw on hand, tightened

securely to ensure proper connection.

2. Hand tighten bolts and Nylon Lock Nuts until Step 4.
