Deaf Bonce Apocalypse AP-M60S v2 [5/16] Страница 5

4. FILTERING, RECOMMENDED AMPLIFIER SETTINGS

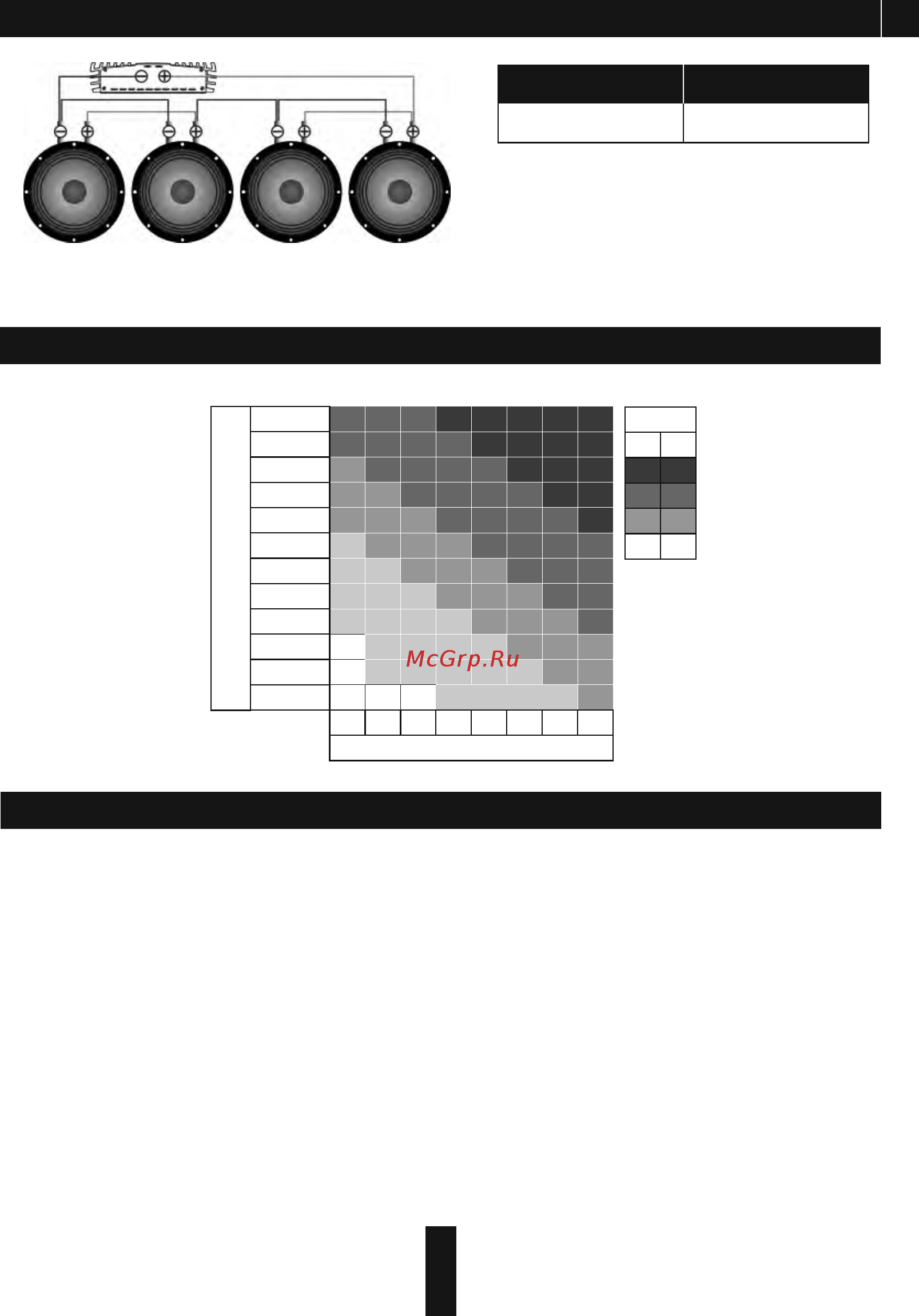

Mixed c o nn e ct i on o f t he s p ea k er s

4 Ohm х 4 MR

4 Ohm

Voice coil

Total impedance

CAUTION!!! High sound pressure can damage your health!

Please use the common sense when controlling volume!

Se l ec t io n o f th e d ia m et e r of s p ea k er c a bl e s

20 000

25 000

15 000

10 000

8000

6000

4000

2000

1000

500

250

100

0-1 1-2 2-3 3-4 4-5 5-6 6-7

Cable length (m)

Power consumption (W)

7-8

16,8

8,37

5,26

2,08

A.W.G

mm²

Size

Use the table below to select the desired diameter based on the length and the power consumption.

The correct choice of amplifier, its settings, filtering and enclosure largely influence on the lifespan of your audio system. You

should select an amplifier with a nominal power, not exceeding the nominal power of the speakers. Proper coordination of the

head unit (HU) with the amplifier will allow to get a clean, undistorted signal applied to the component to prevent overheating

and voice coil damage. Recommended settings of the amplifier and HU: Volume of HU should not exceed 80%. The amplifier

sensitivity should be set to 50%.

The recommended filter settings:

The high pass filter HPF (the filter that cuts all frequencies below those set for the filter) should be set to 150-250 Hz

(24 dB/Oct), or 250-350 Hz (12 dB/Oct)

The low pass filter LPF (the filter that cuts all frequencies above those set for the filter) should be set to 8-12.5 kHz (12

dB/Oct)

Recommended amplifiers: AAK-OGO2500.1D, AAK-OGO1500.2D, AAK-180.4, AAK-200.4D, MA-150.4, MA-130.4.
