4. FILTERING, RECOMMENDED AMPLIFIER SETTINGS

Mixed c o nn e ct i on o f t he s p ea k er s

4 Ohm х 4 MB

4 Ohm

Voice coil

Total impedance

CAUTION!!! High sound pressure can damage your health!

Please use the common sense when controlling volume!

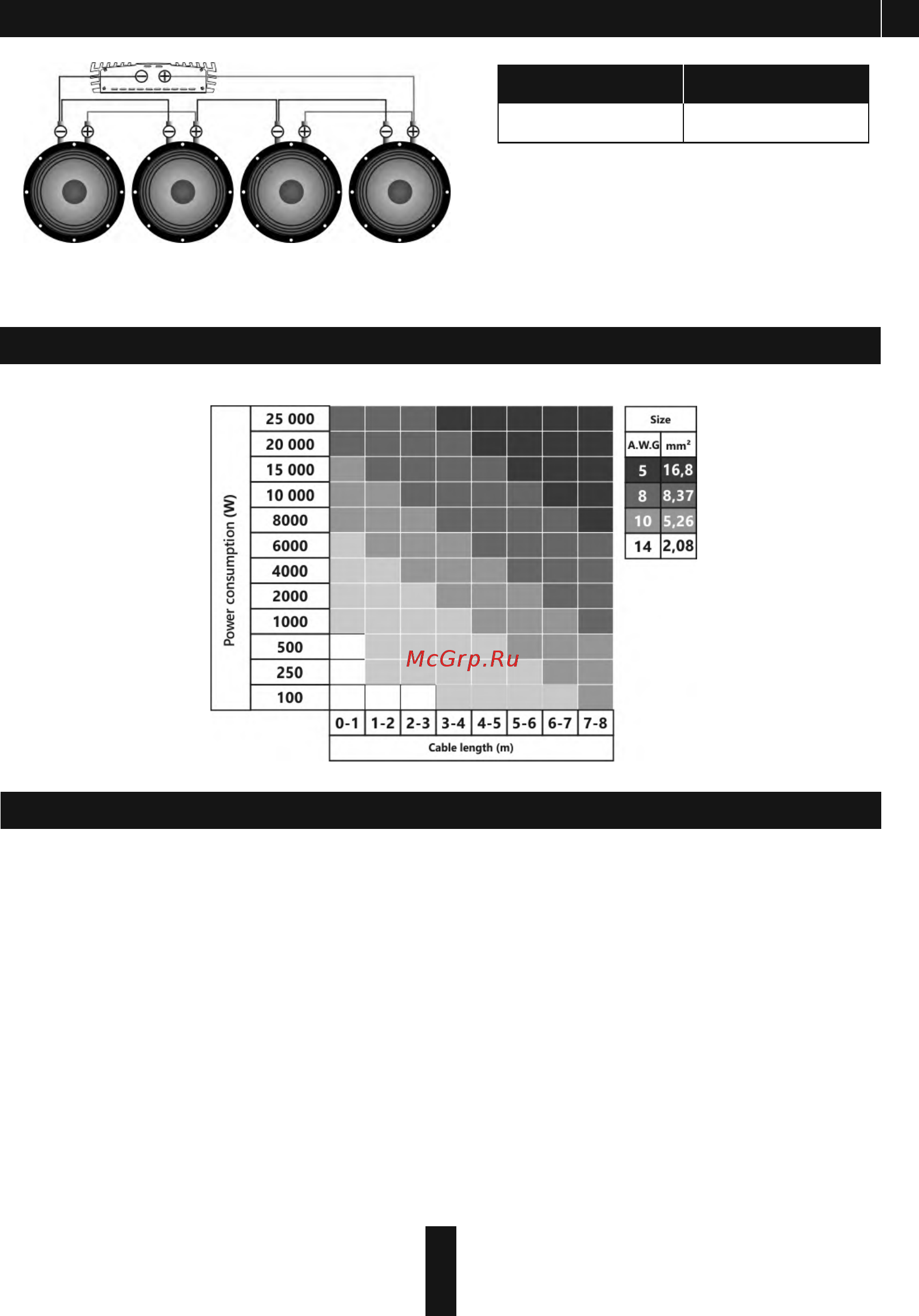

Se l ec t io n o f th e d ia m et e r of s p ea k er c a bl e s

Use the table below to select the desired diameter based on the length and the power consumption.

The correct choice of amplifier settings, filtering and enclosure largely influence on the lifespan of your audio system. You

should select an amplifier with a nominal power, not exceeding the nominal power of the speakers. Proper coordination of the

head unit (HU) with the amplifier will allow to get a clean, undistorted signal applied to the component to prevent overheating

and voice coil damage. The recommended HU volume is not more than 80%, input sensitivity of the amplifier is 50%.

The recommended filter settings:

The high pass filter HPF (a Filter that cuts off all frequencies below the frequency setting of the filter) is about

60-80 Hz (24 dB/Oct), or 120-160 Hz (12 dB/Oct)

The low pass filter LPF (a Filter that cuts off all frequencies above the frequency of the filter) - 500-600 Hz (12 dB/Oct).

Recommended amplifiers: AAK-OGO2500.1D, AAK-OGO1500.2D, AAK-200.4D, AAK-180.4, MFC-120.2, MFC-90.4,

MA-150.4, MA-130.4, MA-80.4, MA-50.4.
