Deaf Bonce Machete MA-4000.1D Sport [12/28] Ma 5500 d sport ma 7500 d sport

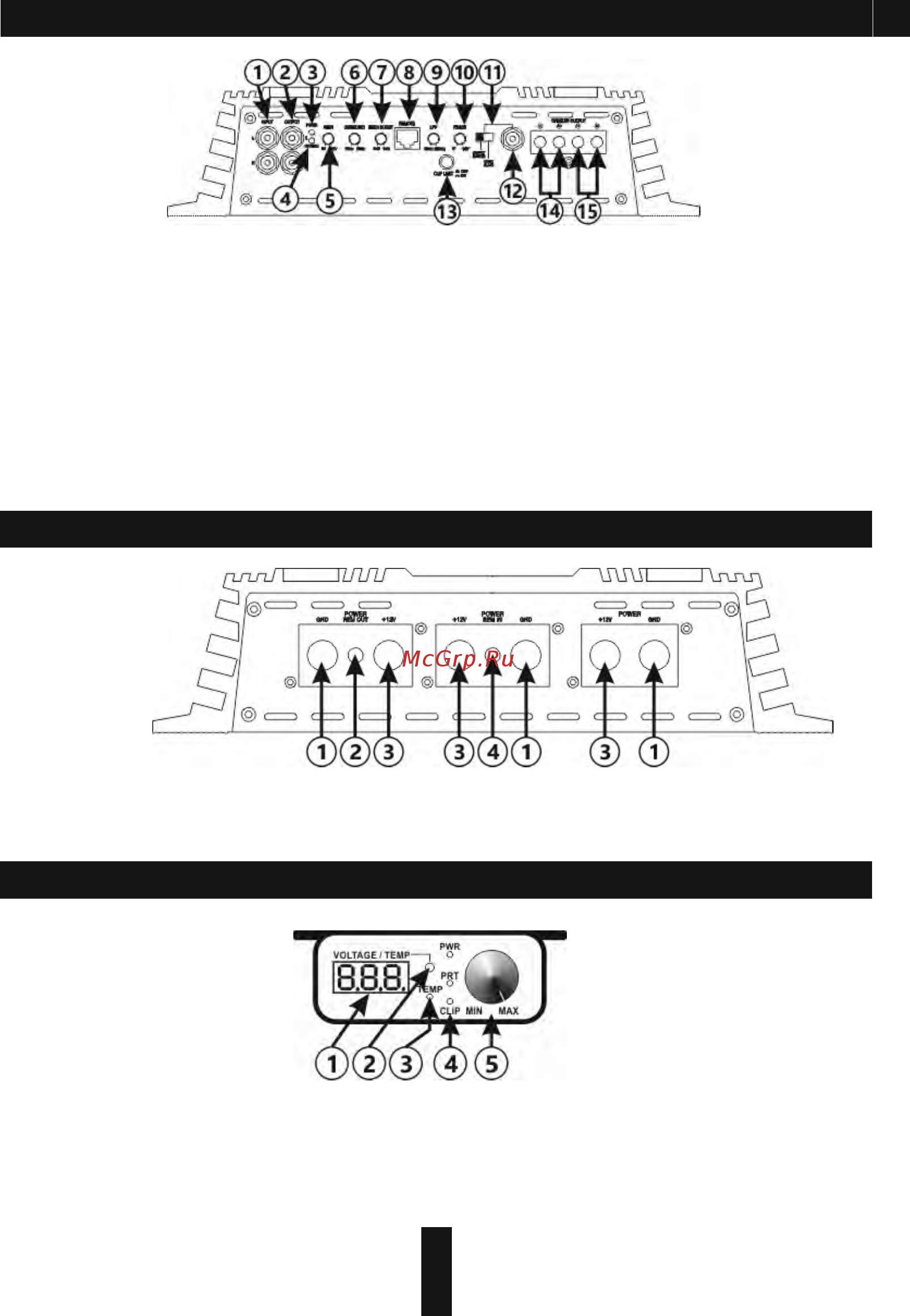

1. INPUT - signal input, RCA jacks

2. OUTPUT - signal output, RCA jacks

3. POWER - LED for operation (green), PROTECT - LED for protection (red)

4. GAIN - input signal level adjustment 0.2 V - 6 V

5. SUBSONIC - subsonic frequency filter 10 Hz - 50 Hz (24 dB/Oct)

6. BASS BOOST - bass level adjustment 0 - 9 dB at 45 Hz

7. REMOTE - input for connection of the bass remote control

8. LPF - low pass filter 35 Hz - 250 Hz (24 dB/Oct)

9. PHASE - phase shifter 0° - 180°

10. OUTPUT MASTER / INPUT SLAVE - Master / Slave Switch

11. OUTPUT MASTER / INPUT SLAVE - “master” output / “slave” input for bridged connection

12. CLIP LIMIT - Switch on / off to set limit of distortions up to 5% THD

13. SPEAKER OUTPUT “+” – speaker positive terminal connections

14. SPEAKER OUTPUT “-” – speaker negative terminal connections

MA-5500.1D Sport, MA-7500.1D Sport

Remote control

1. LED-Display - displays voltage and temperature readings

2. VOLTAGE/TEMP - button to switch between voltage and temperature readings display

3. TEMP - temperature protection LED

4. PWR - power LED, PRT - general protection LED, CLIP - clip LED

5. Input signal controller

1. GND - grounding supply terminal «-»

2. REM OUT – connector of remote activation of the next ampliﬁer

3. +12V – power supply terminal (+12V)

4. REM IN – connector of remote activation of the ampliﬁer
