Deaf Bonce Machete MA-80.4 [6/24] Wiring diagrams
![Deaf Bonce Machete MA-80.4 [6/24] Wiring diagrams](/views2/1457691/page6/bg6.png)
6
EN

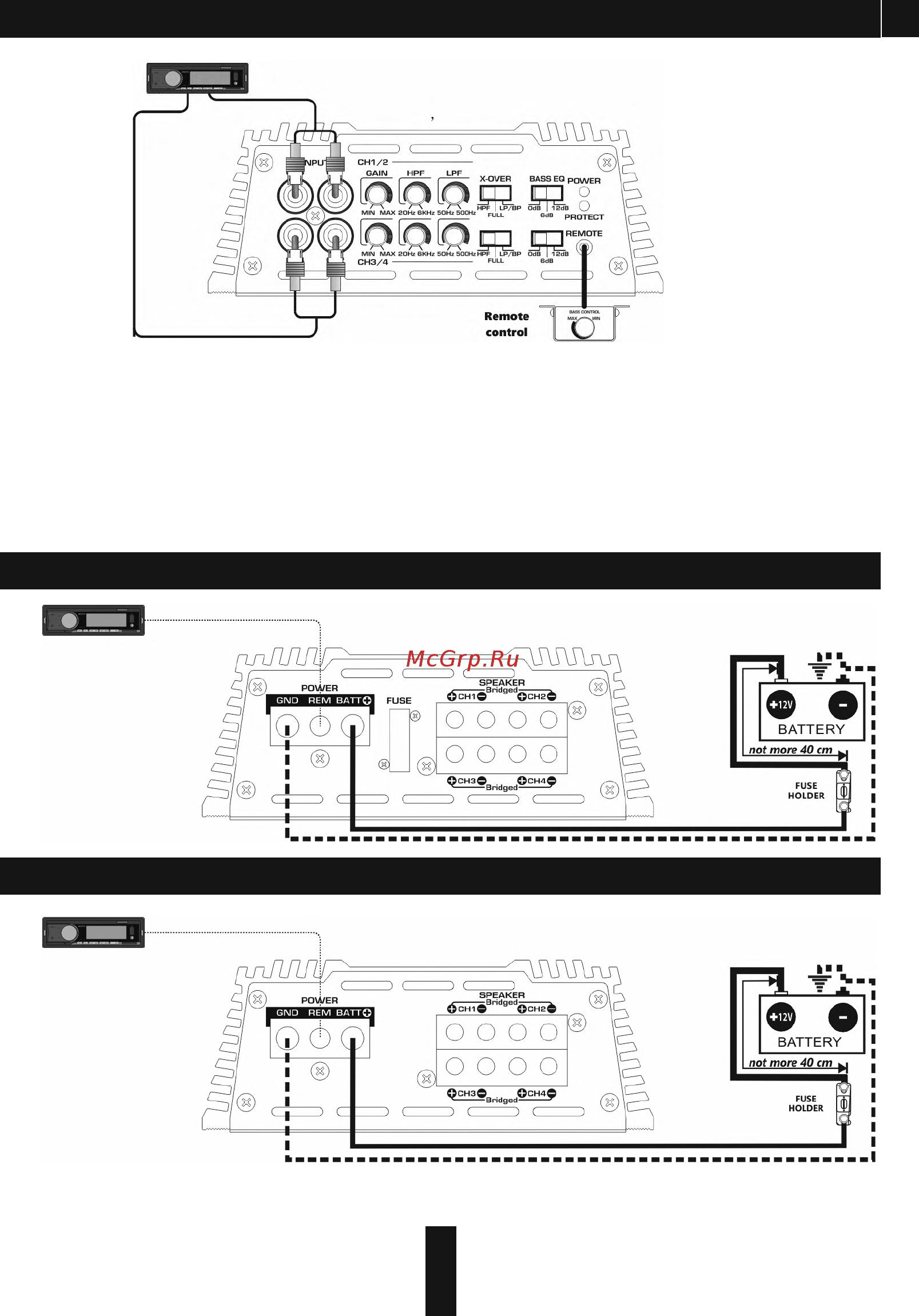

5. WIRING DIAGRAMS
Connect the head unit (HU) to low-level inputs of the amplifier using RCA cable.
Connect the speaker cables from the positive and negative terminals of the speakers to the respective outputs of the amplifier
terminal marked with SPEAKER, as shown at the diagram. To connect the power wire supply it is necessary to use special power
cables. The fuse is placed in the holder and fixed in the cable cut. One end of the cable is connected to the positive terminal of the
battery, the second one – to the amplifier terminals marked with + 12V. Be sure to use a fuse with the parameters sufficient for use
in the system.
The length and diameter of the grounding cable must conform to the length and diameter of the cable + 12V. Connect
one end to the negative terminal of the battery and the other end of the grounding cable to the terminals marked with
GND.
Caution!!! The minimum permissible load impedance for single channel connection is 2 ohm.
For models MA-50.4, MA-80.4, MA-150.4 the operating voltage is 9-15 V.
MA-50. 4
MA -80 .4
