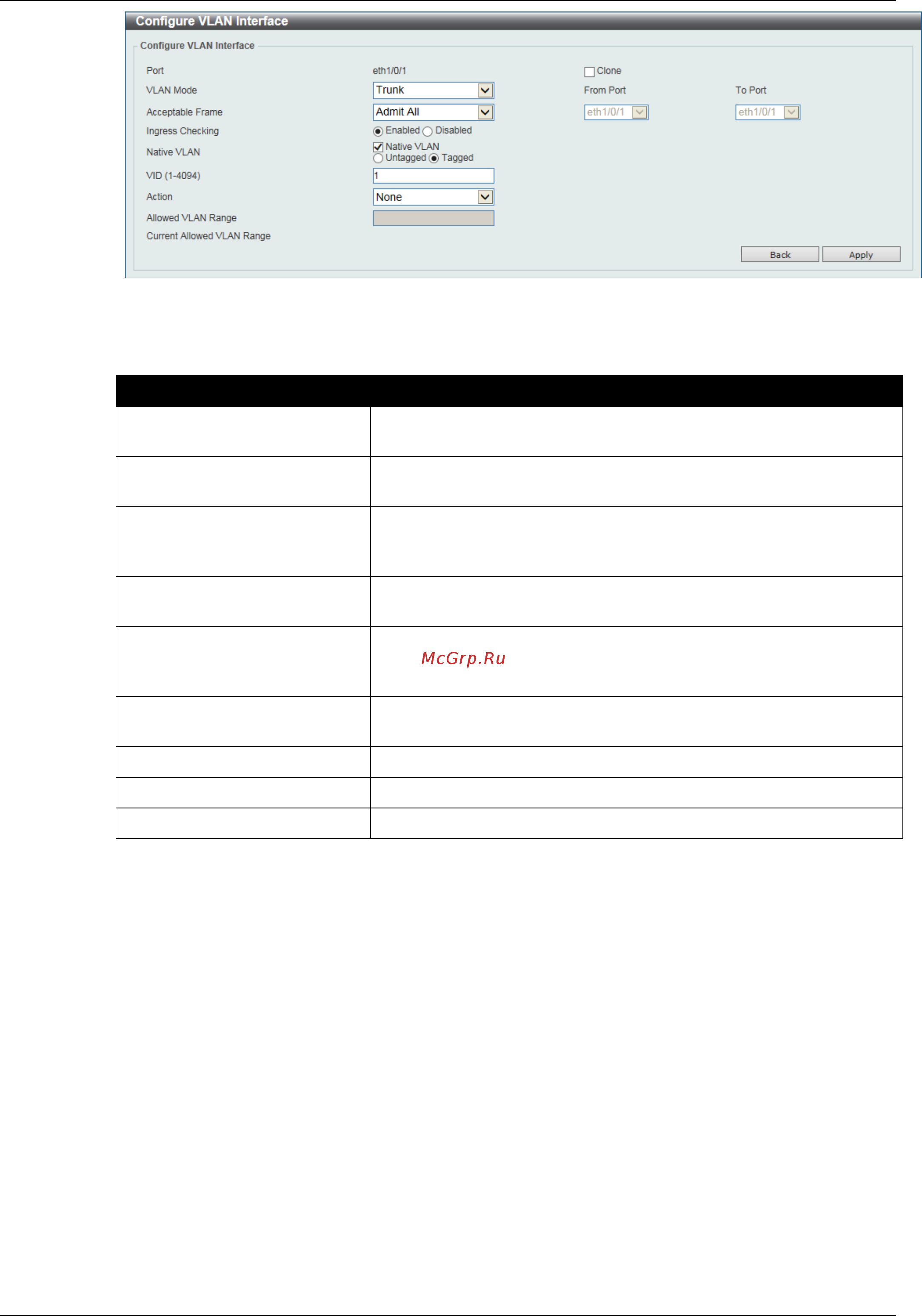

Figure 5-22 Configure VLAN Interface - Trunk window

The fields that can be configured are described below:

Parameter

Description

VLAN Mode

Select the VLAN mode option here. Options to choose from are

Access, Hybrid, and Trunk.

Acceptable Frame

Select the acceptable frame behavior option here. Options to

choose from are Tagged Only, Untagged Only, and Admit All.

Ingress Checking

After selecting Trunk as the VLAN Mode the following parameter

will be available. Select to enable or disable the ingress checking

function.

Native VLAN

Tick the check box to enable the native VLAN function. Also select if

this VLAN supports Untagged or Tagged frames.

VID

After ticking the Native VLAN check box, this option will be

available. Enter the VLAN ID used for this configuration here. This

value must be between 1 and 4094.

Action

Select the action that will be taken here. Options to choose from are

All, Add, Remove, Except, and Replace.

Allowed VLAN Range

Enter the allowed VLAN range information here.

Clone

Tick this option to apply the configuration to the specified ports.

From Port / To Port

Select the appropriate port range used for the configuration here.

Click the Apply button to accept the changes made.

Click the Back button to return to the previous window.

Auto Surveillance VLAN

Auto Surveillance Properties

This window is used to configure the auto surveillance VLAN global settings and display the ports

surveillance VLAN information.

To view the following window, click L2 Features > VLAN > Auto Surveillance VLAN > Auto

Surveillance Properties, as shown below:
