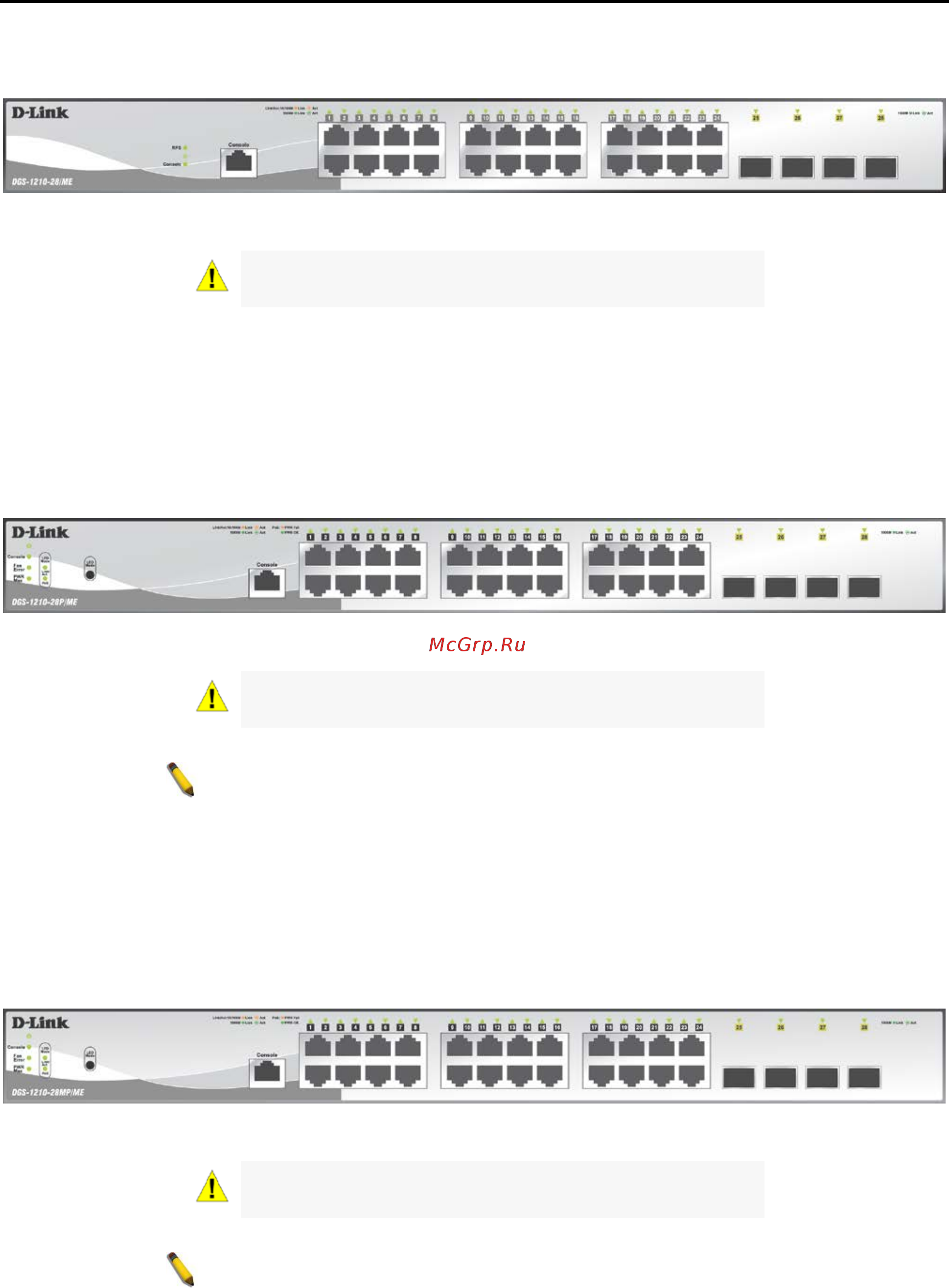

1 Product Introduction DGS-1210 series Metro Ethernet Managed Switch User Manual
4
• LEDs for Power, RPS, Console, Link/Act for port 1 ~ 28
Figure 1.5 – DGS-1210-28/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
The front panel of the DGS-1210-28P/ME switch consists out of the following:
• 24 10/100/1000Mbps Copper Ports
• 4 1000Mbps SFP ports
• One RJ-45 Console Port
• LEDs for Power, Console, Fan Error, Pwr Max, Link/Act for port 1 ~ 28
• Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes
Figure 1.6 – DGS-1210-28P/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
NOTE: The power budget is 193 Watts for DGS-1210-28P/ME.
The front panel of the DGS-1210-28MP/ME switch consists out of the following:
• 24 10/100/1000Mbps Copper Ports
• 4 1000Mbps SFP port
• One RJ-45 Console Port
• LEDs for Power, Console, Fan Error, Pwr Max, Link/Act for port 1 ~ 28
• Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes
Figure 1.7 – DGS-1210-28MP/ME Front Panel
CAUTION: The MiniGBIC ports should use UL listed
Optical Transceiver product, Rated Laser Class I. 3.3Vdc.
NOTE: The power budget is 370 Watts for DGS-1210-28MP/ME.
The front panel of the DGS-1210-28X/ME switch consists out of the following:
• 24 10/100/1000Mbps Copper Ports
• 4 1000Mbps/10G SFP+ port
• One RJ-45 Console Port
