xStack
®
DGS-3120 Series Layer 3 Managed Gigabit Switch Hardware Installation Guide
23
Connecting to Network Backbone or Server
The combo SFP ports and the 1000BASE-T ports are ideal for uplinking to a network backbone, server or server farm.
The copper ports operate at a speed of 1000, 100 or 10Mbps in full or half duplex mode. The fiber-optic ports can
operate at both 100Mbps and 1000Mbps in full duplex mode.
Connections to the Gigabit Ethernet ports are made using a fiber-optic cable or Category 5e copper cable, depending
on the type of port. A valid connection is indicated when the Link LED is lit.

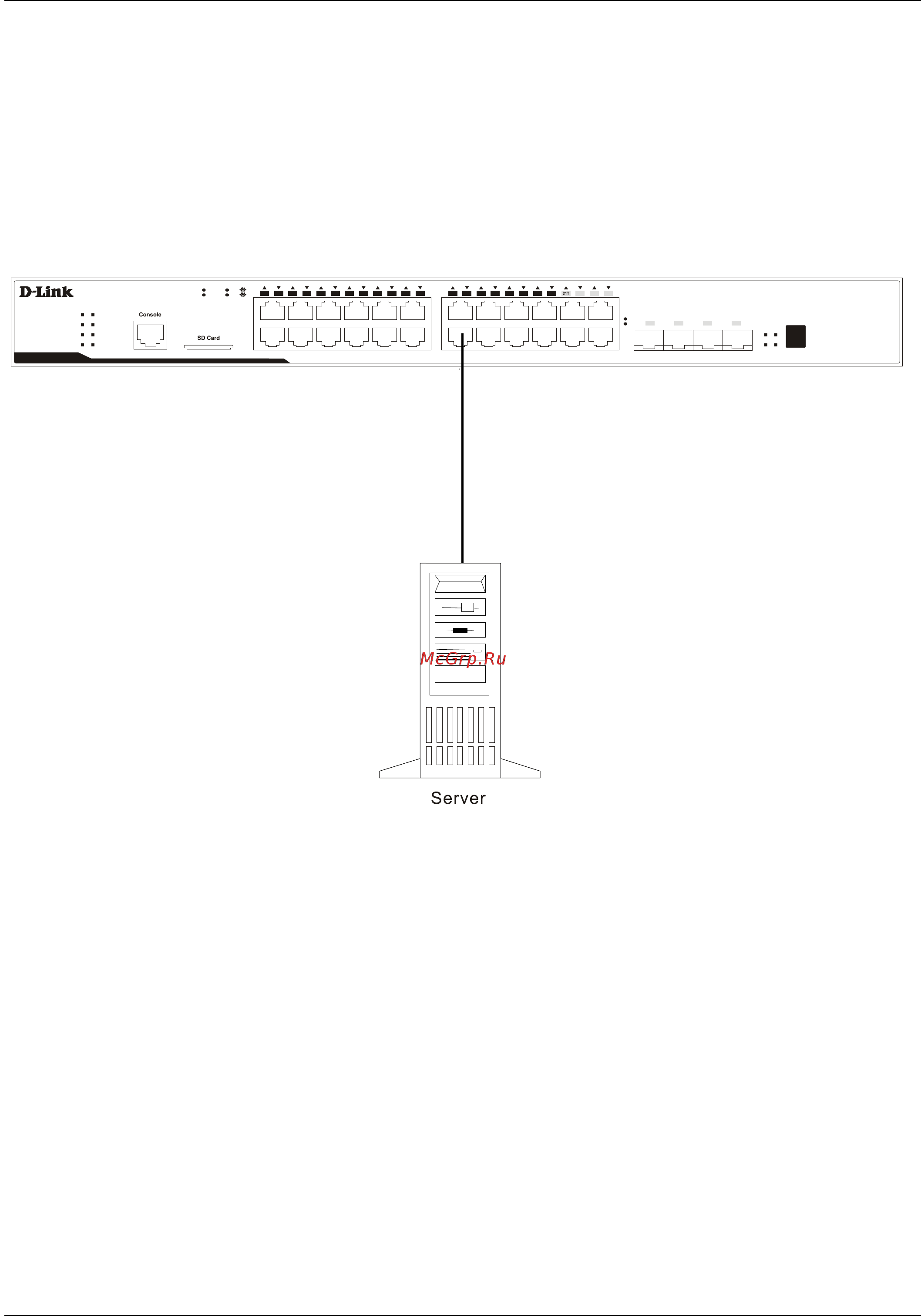

Figure 3-3 Connecting the Switch to a server
DGS-3120-24TC
S1Power
S2Console
FanRP
S
SDMaster
100M
1000M
Link
Act
10/100M
1000M
1 2
3
4
5 876 9 10
11 12
13 16
17
18 19 20
21F
21F
22T
22F
22F
23T
23F
23F
24T
24F
24F
15
14
Stack ID
xSt ac k
