DPS-700 Redundant Power Supply

The DPS-700 is connected to the Master Switch using a 22-pin DC power cable. A

standard, three-pronged AC power cable connects the redundant power supply to the main

power source.

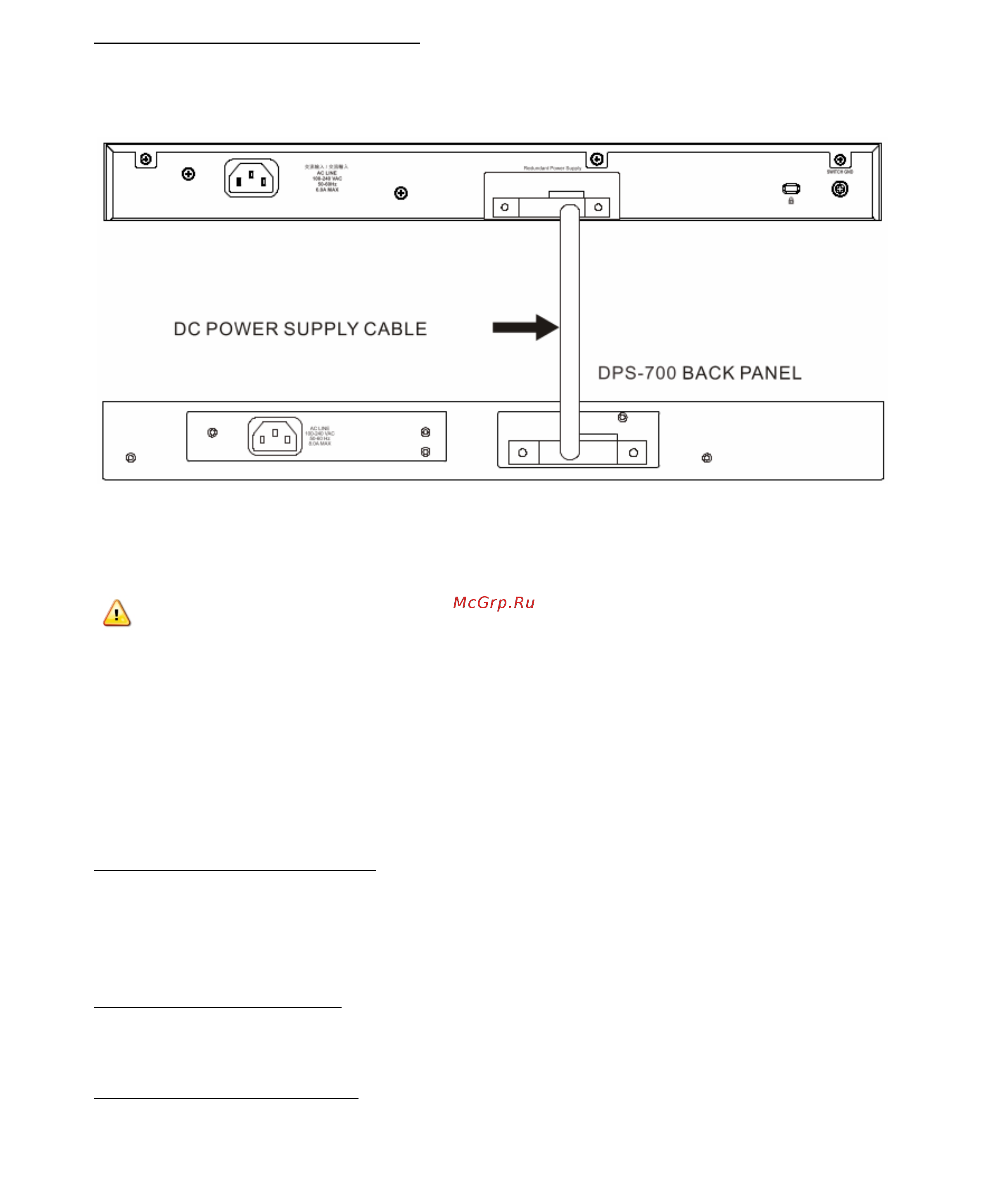

Figure 5 — Rear view of the DPS-700 connected to the Swicth

CAUTION: Do not connect the DPS-700 to the switch by using the 14-pin DC power

cable. It may cause damage when using the wrong DC power cable. ONLY use the

22-pin DC power cable.

Management Options

This switch provides multiple access platforms that can be used to configure, manage, and

monitor networking features available on this switch. Currently there are three

management platforms available which are described below.

Command Line Interface (CLI)

This switch can be managed, out-of-band, by using the console port or the MGMT port on

the front panel of the Switch. Alternatively, the Switch can also be managed, in-band, by

using a Telnet connection to any of the LAN ports on the Switch. The command line

interface provides complete access to all switch management features.

SNMP-based Management

The Switch can be managed with an SNMP-compatible console program. The Switch

supports SNMP v1, SNMPv2c and SNMPv3.

Web User Interface (Web UI)

The Web UI can be accessed from any computer running web browsing software from its

MGMT port, or LAN port when it is connected to any of the RJ-45 or SFP/SFP+ ports. The
