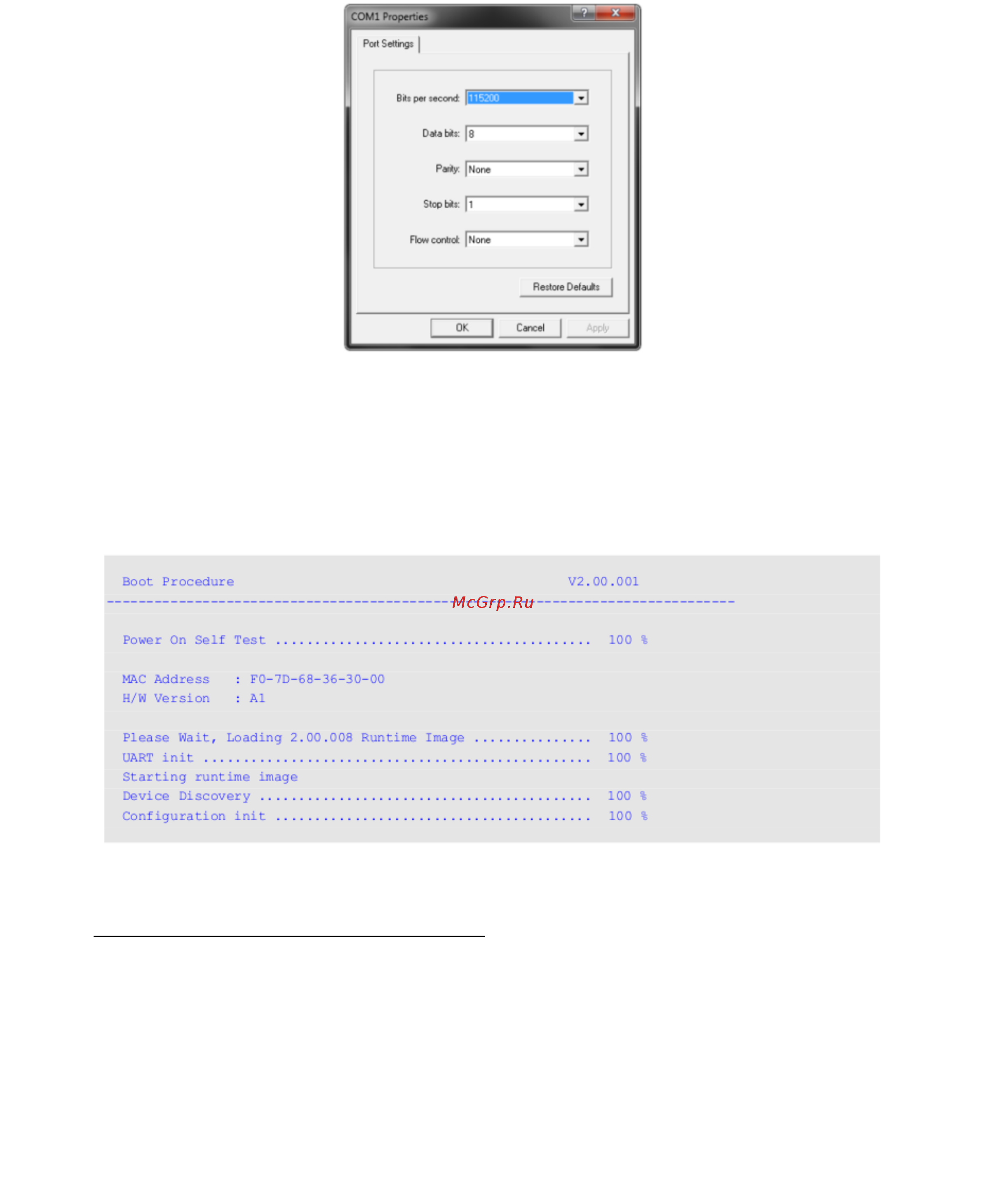

Figure 6 — COM Port Configuration

To be able to view the boot procedure, the Switch needs to be rebooted. The simplest way,

at this stage, to reboot the Switch is to unplug and re-insert the power cable from and into

the power receptacle on the back of the Switch. After correctly configuring the terminal

settings and re-inserting the power cable, the boot procedure will appear in the terminal.

After the boot sequence has been completed, the console login screen will be displayed.

Connecting to the mini-USB Console Port

To use the mini-USB console port, the following equipment is needed:

 A terminal or a computer with a USB 2.0 port and the ability to emulate a terminal

 A console cable with a 5-pin mini-B male connector on one end and a USB Type A

male connecter on the other

 Software to emulate a virtual COM port to be used in the terminal emulation

software (this software can be found on the CD included in this package and can

only be used on a Microsoft

Windows operating system)

To connect the mini-USB console port on the Switch to the computer:
