Doc Date: February 18, 2019 Version: 1.4.1

3. Log in to the User account of the Perenio

Smart Building Management System

app and proceed with the following actions:

• Click on the icon in the right upper corner of the

“Devices” tab and select “Add new device”;

• Click on the “Sensors” button in the list;

• Select the CG to which the Door & Window Sensor

shall be connected (The screen will be displayed

if more than one CG is connected to this location).

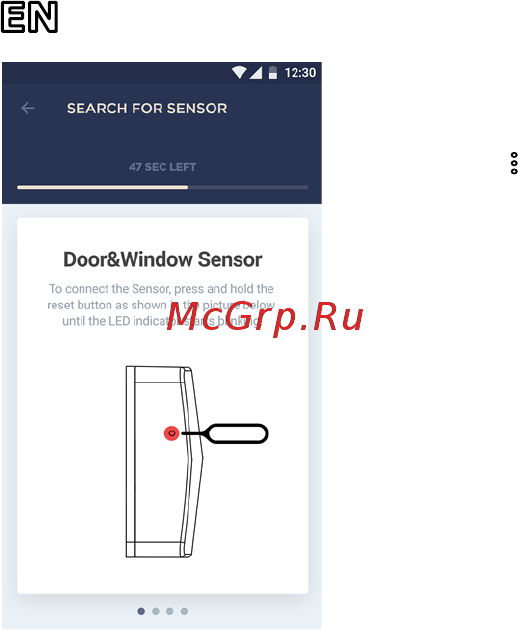

4. As soon as the Control Gateway starts

searching for sensors, press and hold the

reset button on the Door & Window Sensor

until the LED flashes.

NOTE. When first connected, the Door & Window

Sensor should be placed at a distance of not more

than 4.5 m from the Control Gateway.

5. Upon successful connection to the CG,

enter the Sensor name and select the room

where it is to be installed (or create a new

room).

6. Install the Sensor and the Magnet in the

required place using screws or the 3M Mounting tape.

NOTE. The Sensor and the Magnet shall be installed coaxially, and the Magnet shall be

no more than 2 cm away from the Sensor in the closed position of the door/window.

The Door & Window Sensor is successfully connected!

SAFETY OPERATION RULES

1. The User shall observe storage and transportation conditions and working temperature ranges as specified in the Installation and Operation Manual.

2. The User shall follow rules for installation and positioning of the Sensor and the Magnet relative to each other.

3. It is not allowed to drop, throw or disassemble the device, as well as attempt to repair it on one’s own.

For details on the device description, manufacturing facilities, certificates, warranty and quality issue companies, as well as the Perenio Smart Building

Management System app functionality, see relevant Installation and Operation Manuals available for downloading at perenio.com
