D-Link DMC-1001/DC [3/10] Installation

INSTALLATION

Step 1: Please connect wires from the DC power source to the

terminal block on the front panel of the DMC-1001.

Step 2: Turn on the DC power source.

Step 3: Turn on the chassis system by flipping the switch beside

the receptacle to ON position. The LED on the front panel

of the chassis system will come on then.

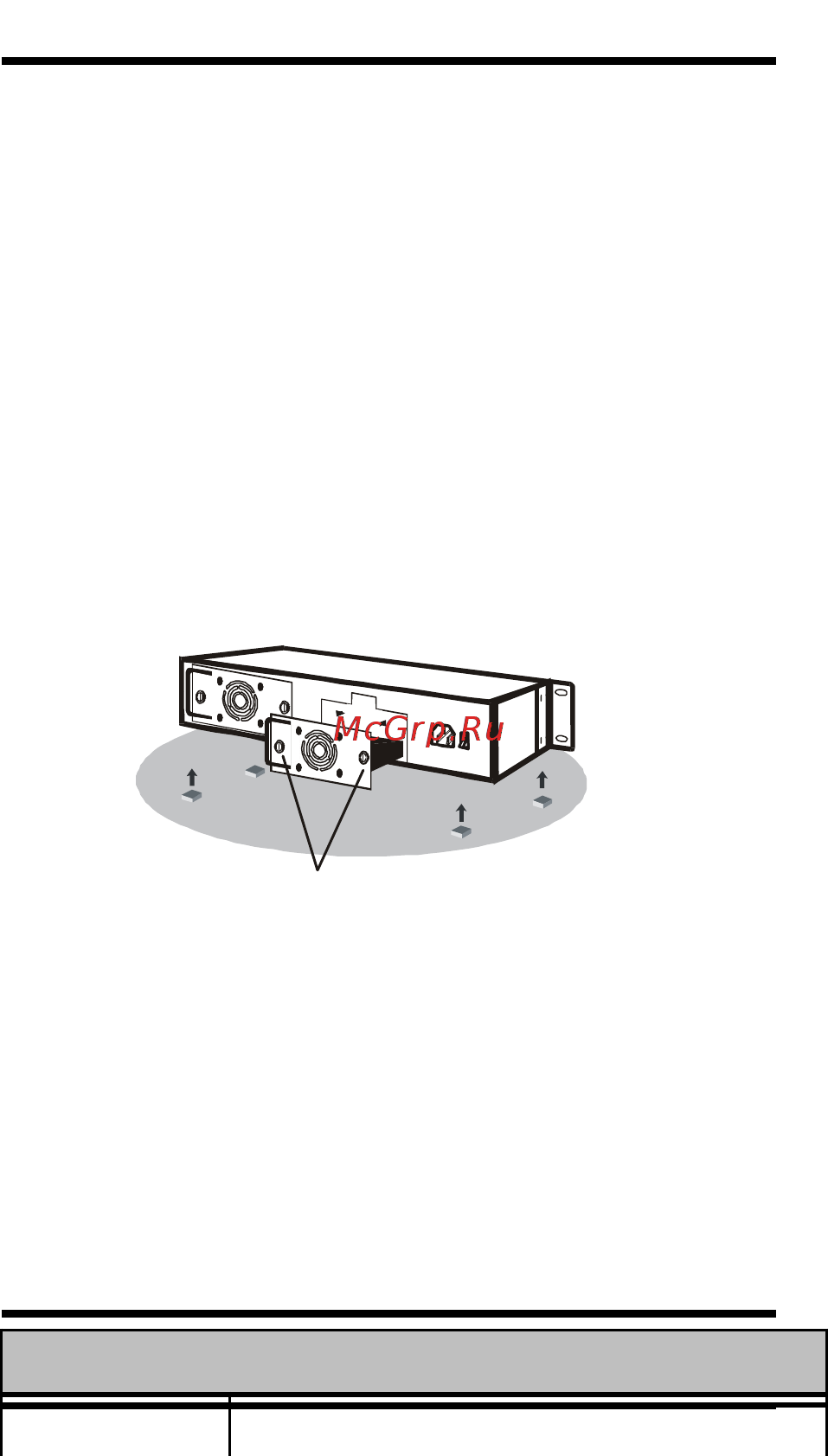

Installing and Removing the Power Supply

 To install a power supply to the chassis, you have to

slide in the power supply to the chassis and fasten the

hand screw clockwise.

 To remove a power supply out the chassis, you have to

loose the hand screw counter clockwise and pull out

the power supply from the chassis.

Y o u c a n s l i d e i n a n d o u t t h e p o w e r s u p p l y f r o m t h e b a y ,

f a s t e n o r l o o s e t h e h a n d s c r e w c l o c k w i s e o r c o u n t e r

c l o c k w i s e b y u s i n g h a n d o r s c r e w d r i v e r .

SPECIFICATIONS

DMC-1001
