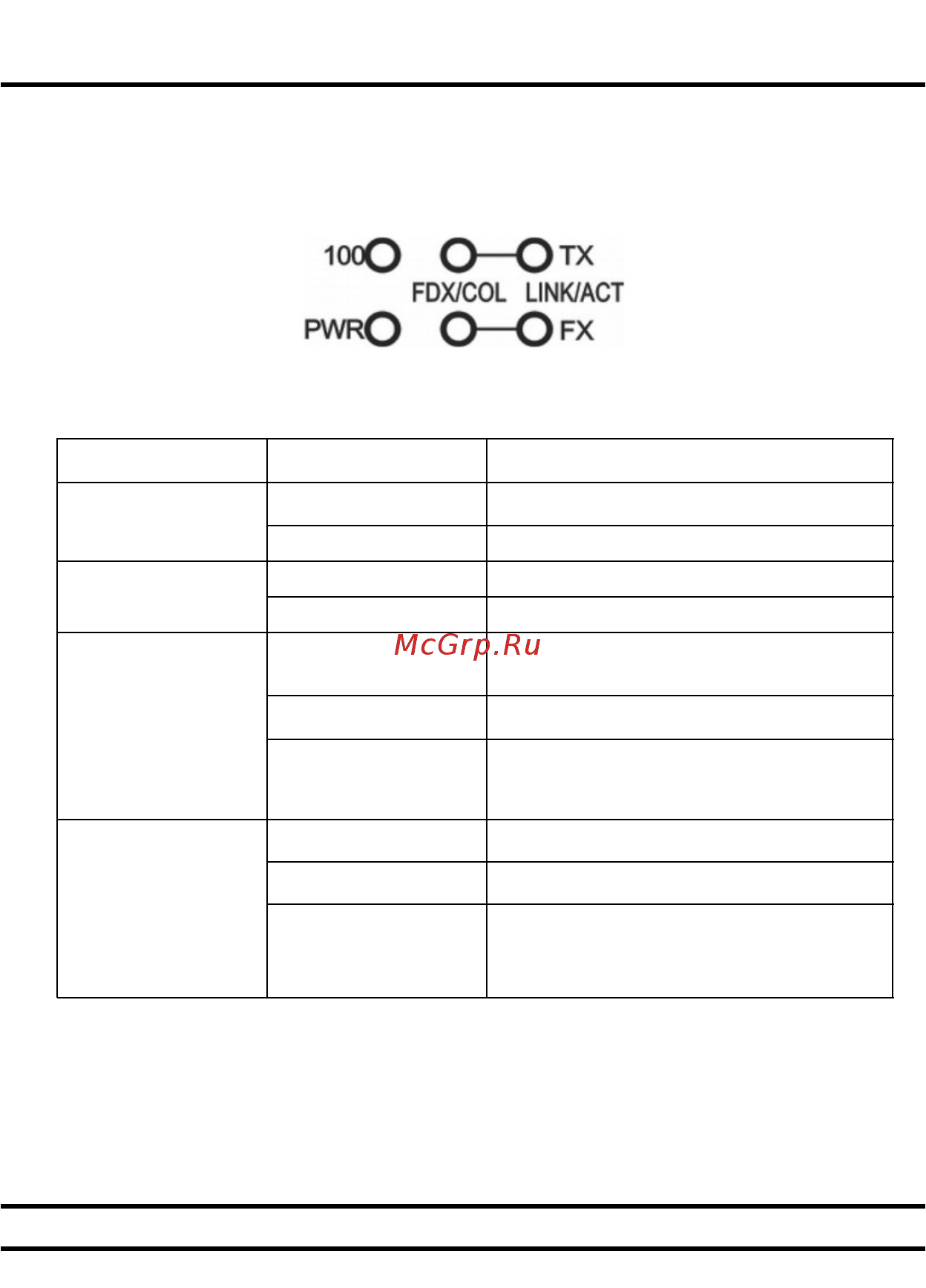

LED INDICATOR

The LED indicators give you instant feedback on status of the

converter:

LEDs State Indication

PWR (Power)

Lights on Power on

Lights off Power off

100 (100 Mbps)

Lights on Runs at 100 Mbps on TX port

Lights off Runs at 10 Mbps on TX port

TX (TX Port)

FX (FX Port)

FDX/COL

Lights on (FDX)

Connection in full duplex mode

FDX = Full Duplex

Lights off Connection in half duplex mode

Lights Blinking

(COL)

Data collision

TX (TX Port)

FX (FX Port)

LINK/ACT

Lights on (LINK) Linking

Lights off Not Linking

Lights Blinking

(ACT)

Data transforming and

receiving

ACT = Activity
