5
1.3 Legacy RAID ROM Configuration (for AMD X370, B350, and A320 Chipsets)
Use legacy RAID ROM to create and configure the RAID disk.
STEP 1: Set up UEFI
A. During system boot, press <F2> or <Del> key to enter UEFI setup utility.
B. Go to Advanced Storage Configuration.
C. Set the “SATA Mode” option to <RAID>.
D. Click <F10> to save to exit.
STEP 2: Create and configure the RAID disk

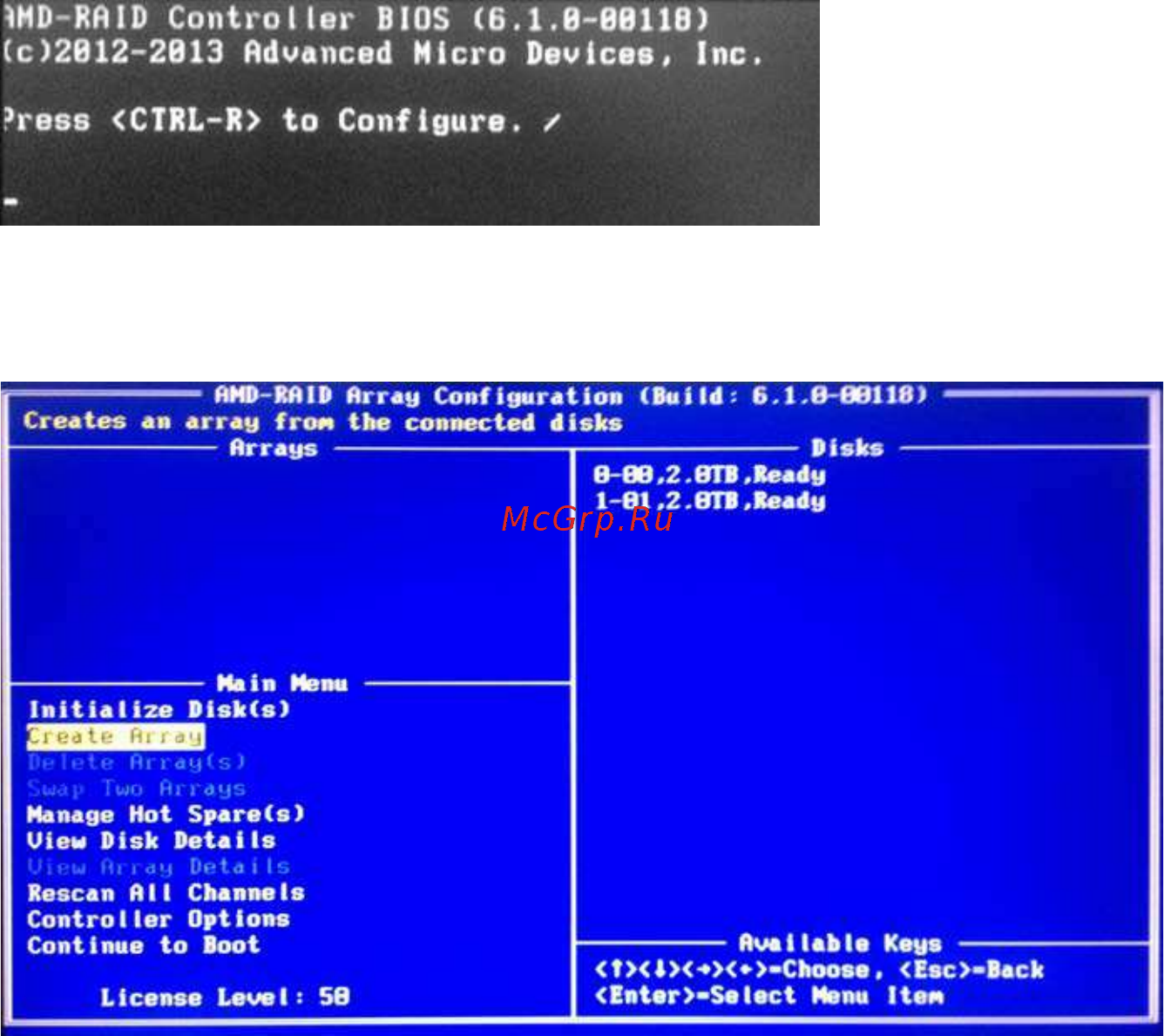

A. During system boot, press <Ctrl+R> to enter legacy RAID ROM utility.
B. When the appropriate prompt appears during POST, press <Ctrl+R> to enter the RAID BIOS setup utility.
To create a new array, press <Enter> on the “Create Array” option.
*Be sure to delete the existing disk arrays before creating a new array.
