Hyundai H-LCD3202 [13/30] Pip function

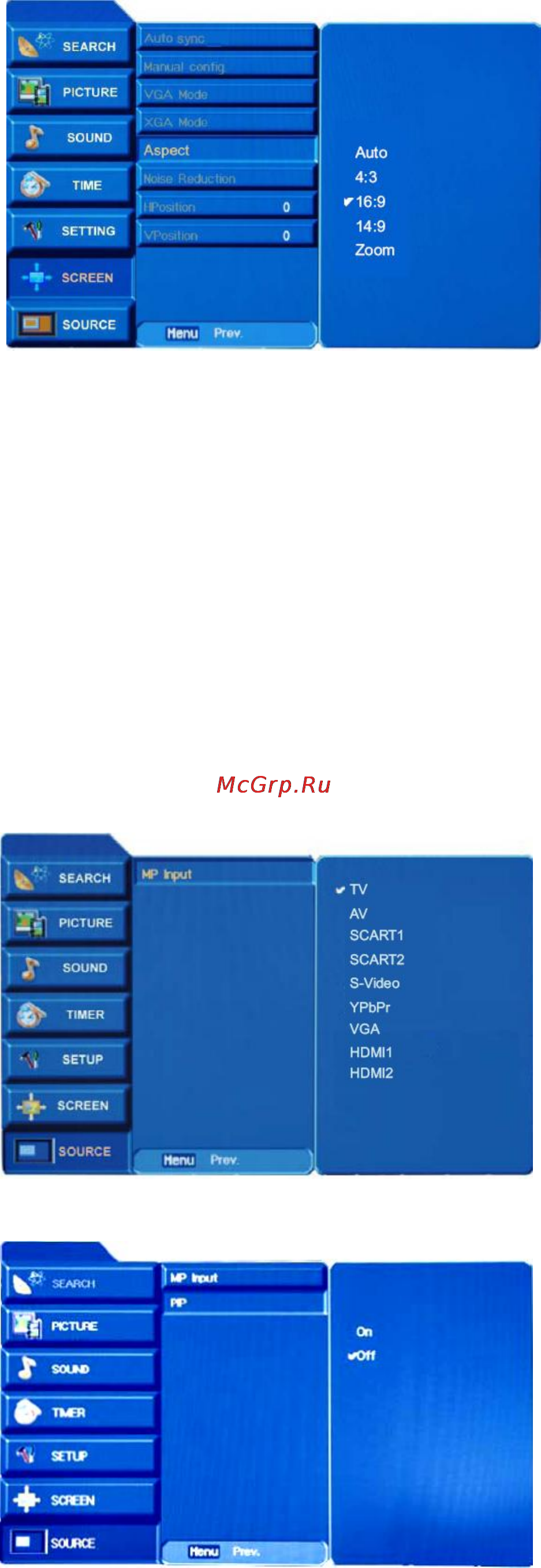

SCREEN Menu

Press MENU button to display the OSD menu, press

UP/DOWN buttons to select Screen menu. Press

RIGHT button to enter the menu; then you can use

UP/DOWN buttons to select a submenu: TV, AV,

SCART, S-VIDEO mode: Aspect, Noise Reduction.

HDTV (YPbPr) source: Aspect, Noise Reduction,

H.Position, V.Position.

VGA source: Auto sync, Manual config, VGA/XGA

mode, Aspect.

HDMI source: Aspect, H.Position, V.Position.

Press MENU button to return to the main menu, press

RIGHT button to enter the submenu.

Auto sync: Press UP/DOWN buttons to select Auto sync, press RIGHT button to auto config. (in VGA

source).

Manual config.: Press UP/DOWN buttons to select Manual config., press RIGHT button to enter, and press

UP/DOWN buttons to select Phase, Clock, H.Position. Press LEFT/RIGHT buttons to adjust (in VGA

source).

VGA/XGA mode: Press UP/DOWN buttons to select VGA/XGA mode, press RIGHT button to enter, and

press UP/DOWN buttons to select the definition (in VGA source).

Aspect: Press UP/DOWN buttons to select Aspect, press RIGHT button to enter, and press UP/DOWN

buttons to select the ratio of the screen.

Noise Reduction: Press UP/DOWN buttons to select Noise Reduction, press LEFT/RIGHT buttons to turn

on/off the noise reduction function.

H/V Position: Press UP/DOWN buttons to select H/V Position, press LEFT/RIGHT buttons to adjust the

picture position.

Press ENTER button to confirm and return to preview menu.

SOURCE Menu

Press MENU button to display the OSD menu, press

UP/DOWN buttons to select Source menu. Press

RIGHT button to enter the menu.

Press MENU button to return to the main menu, or

press RIGHT button to enter the submenu.

MP Input: Press UP/DOWN buttons to select MP

Input, press RIGHT button to enter, press UP/DOWN

buttons to select the input source.

Press ENTER button to confirm.

PIP function

Press UP/DOWN buttons to select “PIP”, press

RIGHT button to enter the submenu.

When you select “On”, and press ENTER button to

confirm, the “PIP Input” and “Win. position” menu

will be displayed.

MP Input: When you turn on the PIP function, you

can select only four input sources for the main picture:

YPbPr, VGA, HDMI1, HDMI2.

PIP input: Select the PIP input source, you can select

four sources here: TV, AV, SCART1, SCART2.

Win. position: Select the PIP picture’s position.
