 Power Manage. Power Management Mode, you can select Off, 2 hours, 3 hours and 4 hours by pressing

V+/V- buttons, this operation means if there is no any operation to the TV in 2 or 3 or 4 hours, the TV

will enter into the standby mode automatically.

 Panel Lock. Locking the buttons of the TV, when the “Panel Lock” is set as “ON”, all of the buttons are

locked and lose their function (to release “Panel Lock”, please press any button for more than 5

seconds), when you select this item as “OFF”, the buttons of the TV are in normal mode.

 Transparency. Menu transparency selection, you can select menu transparency according to the different

background picture, there are several options for menu transparency (0, 1, 2, 3, 4, 5, 6, 7).

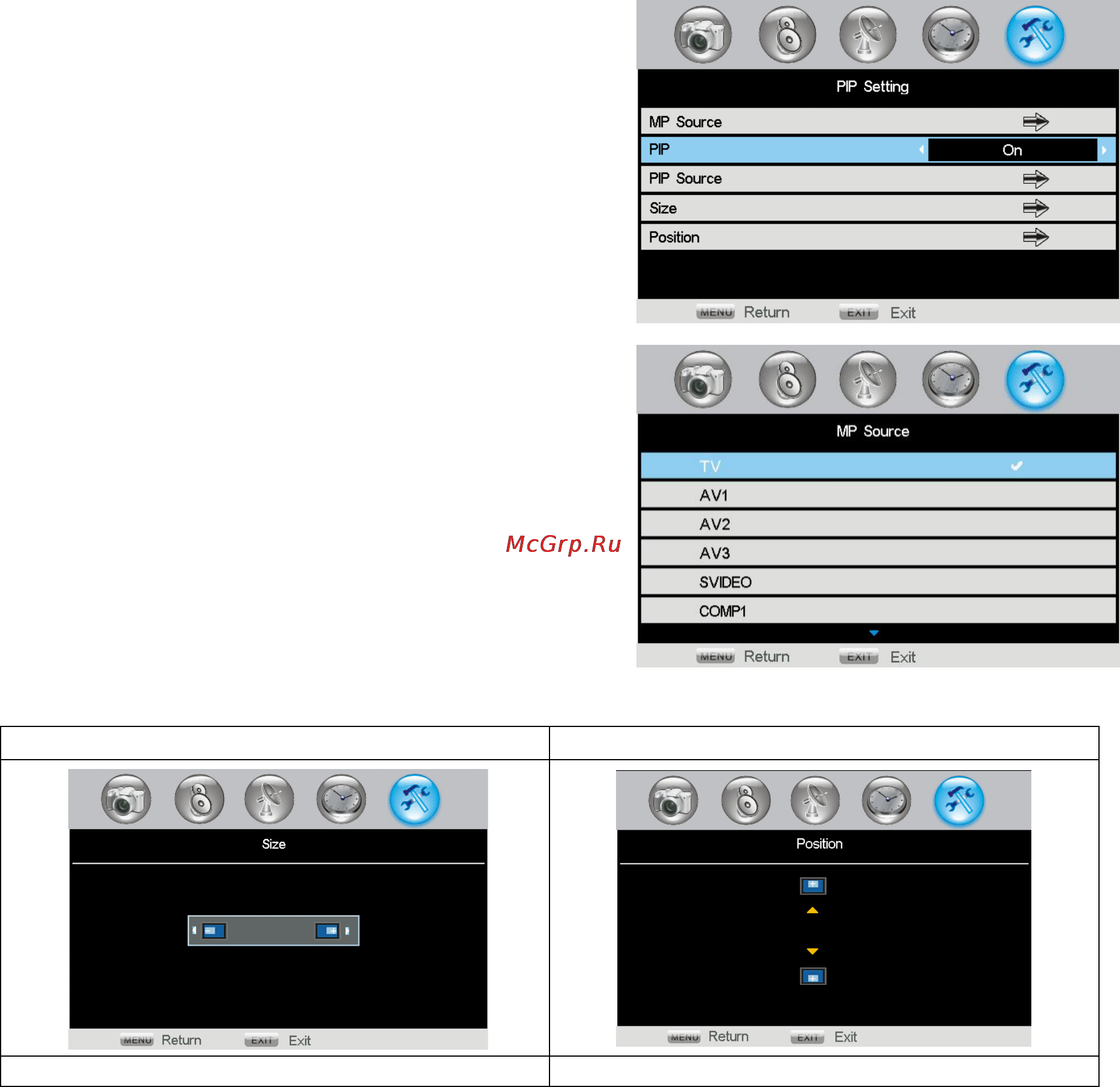

 PIP Setting. In the FUNCTION setting menu, press

P+/P- buttons to select the items, and press OK button

or V+/V- buttons to enter into “PIP Setting” menu, and

enter into “MP Source” menu, as described in the

following picture.

 MP Source. If the PIP function is enabled, we can select

only COMP1, COMP2, PC, HDMI, HDMI2, other wise

we can select all source.

 PIP. Open or close the PIP function by pressing V+/V-

buttons, it is the same as the direct key.

 Select PIP source. Select PIP source: TV, AV1, AV2,

AV3.

 Size. Select PIP window size.

 Position. Select PIP window position.

Size described in the following picture Position described in the following picture

Press V-: Smaller , press V+: Bigger Press P-: Below, press P+: Above

Note: When the “PIP” function was selected, press TV/AV button on the TV or AV on the RC, have List1:

MP Source (COMP1, COMP2, PC, HDMI, HDMI2), List2: PIP source (TV, AV1, AV2, AV3), you can

press AV button to select the List1 or List2 in cycle, if you want to make “MP Source” is TV, AV1, AV2,

AV3 and SVIDEO, you mast close the “PIP” function.

 Reset. Select this item, and restore to the original setting by pressing OK or V+/V-, after this operation,

all of the settings made by user will be replaced by original setting parameters.
