Hyundai H-LCD2202 [7/24] Rear panel

Rear panel

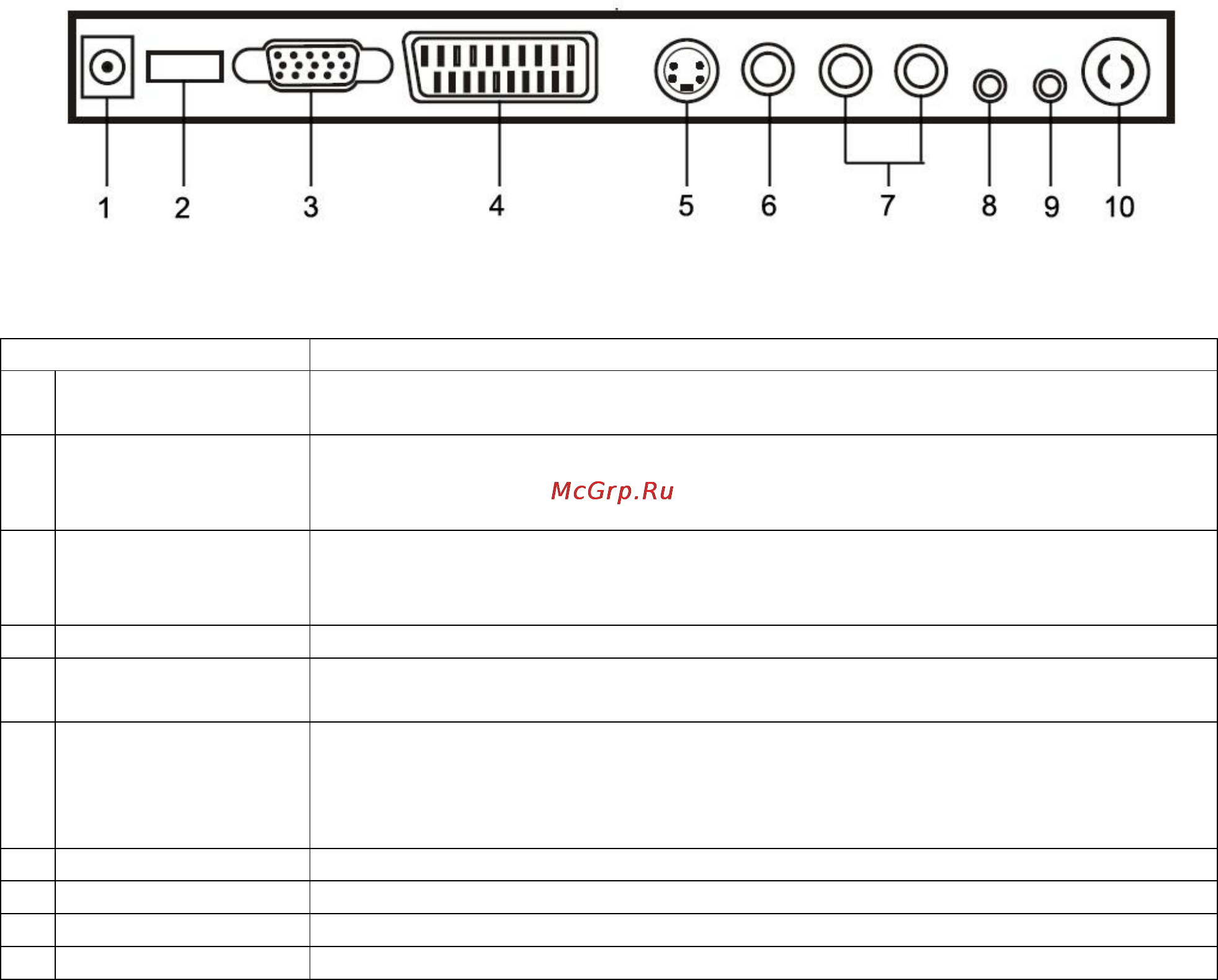

Rear panel terminals and controls

Items Connection description

1 AC input

Connect the AC power cable with 100-240V AC power supply. Connect the

other end of the AC power cable with the AC power port on the TV.

2 HDMI

Connect one end of the HDMI cable with HDMI output port, connect the other

end of the HDMI cable with the HDMI port on the TV, and tighten the bolts

clockwise on the each end of HDMI cable.

3 VGA

Connect one end of the VGA cable with the VGA port on computer, connect the

other end of the VGA cable with the VGA port on the TV, and tighten the bolts

clockwise on the each end of VGA cable.

4 SCART Connect them to the corresponding terminal of DVD.

5 S-Video

The output S-Video terminal of DVD can be connected with the S-Video input

port of the TV through S-Video cable.

Composite video

input

Capable of receiving PAL, NTSC, SECAM color systems; Very convenient to

watch VCR (video cassette recorder), Pickup Camera, other Disc’s programs.

The AV input of the TV can be connected with the output port of other AV

equipment through AV cable.

7 L/R in Connect them to audio output terminal of DVD (with VIDEO/S-VIDEO).

8 PC audio in Connect it to the audio output terminal of PC.

9 Headphone out Connect it to your headphones or other audio equipment.

10 RF antenna The RF output terminal can be connected with the RF input port of the TV.

Notes:

 Ensure that the power to the LCD TV and other connected devices is off before you make any

connections.

 When connect, plug directly and slightly to the interface, otherwise you will damage the stitch.

 S-VIDEO and AV cannot be used at same time for they share of one signal channel.

 Check and make sure that all AV cables are connected with the corresponding ports correctly.
