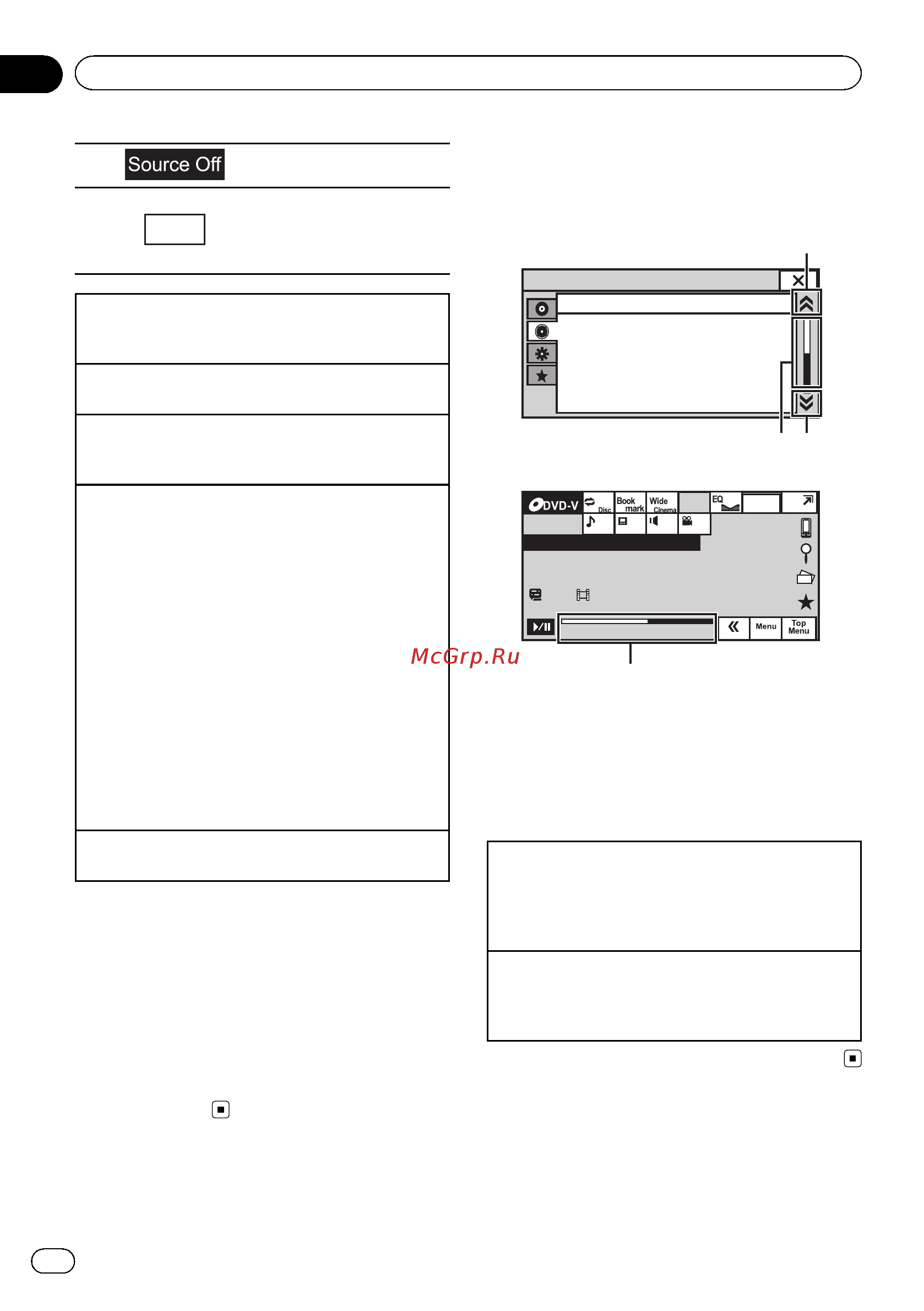

![Pioneer AVH-3400DVD [10/76] Basic operations](/views2/1464919/page10/bga.png)
7 Displaying the source menu.
8
Wed 28 May
12:45 PM
Switching to clock adjust-
ment display.
Refer to Setting the clock on
page 12.
Switching to HOME display
1 Press HOME when you want to switch the dis-
play.
Turning the source on using the buttons
1 Press SRC/OFF to turn the source on.
Turning the source off using the buttons
1 Press SRC/OFF and hold until the source turns
off.
Selecting a source using the buttons
1 Press SRC/OFF to cycle through the sources
listed below:
Selecting a source using the touch panel keys
1 Touch the source icon and then touch the desired
source name.
! Radio – Radio
! Disc – Built-in DVD player
! USB/iPod – USB/iPod
! Audio – Built-in Bluetooth audio
(Function of AVH-4400BT/AVH-2400BT)
! AUX – AUX
! AV – AV input
! When the source icon is not displayed, it can be
displayed by touchi ng the screen.
! While operating the menu, you cannot select a
source by touching the source icon.
Adjusting the volume
1 Press +/– (VOLUME/VOL) to adjust the volume.
Notes
! In this manual, iPod and iPhone will be re-
ferred to as “iPod”.
! The USB/iPod icon will change as follows:
— USB is displayed when a USB storage de-
vice is connected.
— iPod is displayed when an iPod is con-
nected.
— USB/iPod is displayed when no device is
connected.
Operating the scroll icon
and the scrubber bar
Audio
Fader/Balance F/R 0 L/R 0
Super Bass
On
Graphic EQ
Auto EQ
High
Off
L/R 0Sonic Center Control
Loudness
Subwoofer
ESC
1
1
2
Abcdeabcdeabcdeabcdeab
Wed 28 May
12:45 PM
11
08 12
01:45 -02:45
1
L+R
2
1 Scroll icon
Appears when selectable items are hidden.
2 Scrubber bar
Appears when items cannot be displayed on a
single page only.
Viewing the hidden items
1 Touch the scroll icon or drag the scrubber bar to
view any hidden items.
! Also, you can drag the list to view any hidden
items.
Specifying the playback point
1 Drag the scrubber bar on the screen.
(Not available when the scrubber bar is grayed
out.)
En
10
Section
04
Basic operations
