Pioneer GEX-1550TV [2/4] Connecting the units
Connections <ENGLISH>
Specifications
General
Rated power source ............ 14.4 V DC
(allowable voltage range:
12.0 V to 14.4 V DC)
Grounding system .............. Negative type
Maximum current consumption
.................................. 0.22 A
Dimensions (W × H × D) ...97 mm × 28 mm × 102 mm
Weight ................................ 0.12 kg
TV tuner
Reception channel
Country 1 (CCIR, PAL/BG)
............................ VHF 2 ch to 12 ch/
UHF 21 ch to 69 ch
Country 2 (Indonesia, PAL/BG)
............................ VHF 1 A, 2 ch to 11 ch/
UHF 21 ch to 69 ch
Country 3 (Russia, SECAM/DK)
............................ VHF R1 ch to R12 ch/
UHF 21 ch to 69 ch
Country 4 (Philippines, NTSC/M)
............................ VHF 2 ch to 13 ch/
UHF 14 ch to 69 ch
Color system ...................... NTSC/PAL/SECAM
Usable sensitivity ...............18 dBμ
Video S/N ........................... Over 37 dBμ
Antenna input ..................... 1 ch (3.5 mm mini plug type)
Note
Specifications and the design are subject to modifica-
tions without notice.
Additional information <ENGLISH>

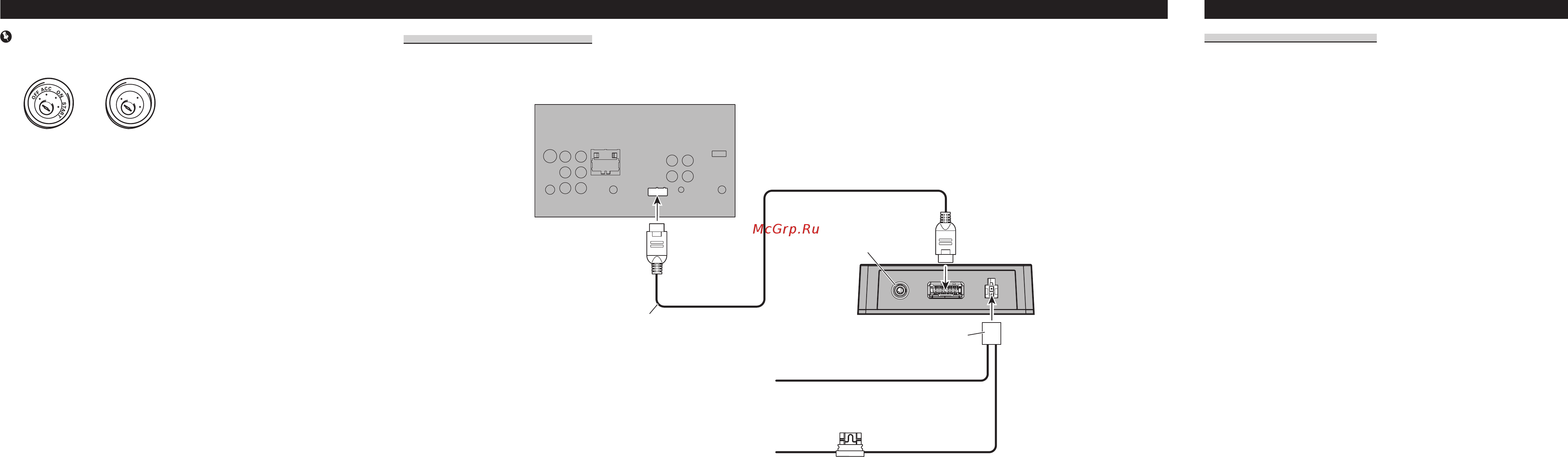

Black (GND)
To vehicle (metal) body.
This unit
Connect the other end of
the cable to RGB IN input
on the back of your
Pioneer AV receiver.
AV receiver
RGB cable (supplied)
Yellow (B+)
To terminal always supplied with power regardless of ignition
switch position.
ANTENNA IN
Antenna input (3.5 ø)
Power code (supplied)
Fuse (1 A)
2 m
Connecting the units
Important
• This unit can not be installed in a vehicle that does
not have an ACC (accessory) position on the ignition
switch.
O
N
S
T
A
R
T
O
F
F
ACC position No ACC position
• Use of this unit in conditions other than the following
could result in fire or malfunction.
— Vehicles with a 12-volt battery and negative
grounding.
• To prevent a short-circuit, overheating or malfunction,
be sure to follow the directions below.
— Disconnect the negative terminal of the battery
before installation.
— Secure the wiring with cable clamps or adhesive
tape. Wrap adhesive tape around wiring that
comes into contact with metal parts to protect the
wiring.
— Place all cables away from moving parts, such as
the shift lever and seat rails.
— Place all cables away from hot places, such as
near the heater outlet.
— Do not connect the yellow cable to the battery by
passing it through the hole to the engine compart-
ment.
— Cover any disconnected cable connectors with
insulating tape.
— Do not shorten any cables.
— Never cut the insulation of the power cable of this
unit in order to share the power with other devic-
es. The current capacity of the cable is limited.
— Use a fuse of the rating prescribed.
Notes
• Check all connections and systems before final instal-
lation.
• Do not use unauthorized parts as this may cause mal-
functions.
• Consult your dealer if installation requires drilling of
holes or other modifications to the vehicle.
• Install the unit where it will not get in the driver’s
way and will not injure passengers if there is a sud-
den stop.
• When mounting this unit, make sure none of the leads
are trapped between this unit and the surrounding
metalwork or fittings.
• Do not mount this unit near heater outlets where it
would be affected by heat, or near the doors where
rainwater might splash onto it.
• Before drilling any mounting holes, always check
behind where you want to drill the holes. Do not drill
into the gas line, brake line, electrical wiring or other
important parts.
• If this unit is installed in the passenger compartment,
anchor it securely so it does not break free while the
vehicle is moving, causing injury or an accident.
• If this unit is installed under the front seat, make sure
it does not obstruct seat movement. Route all leads
and cords carefully around the sliding mechanism so
they do are not caught or pinched in the mechanism
and cause a short-circuit.
