3
This product
1
2
345678
1 Microphone 3 m
(MVH-AV280BT)
2
This product
3 Aerial jack
4 Wired remote input
Hard-wired remote control adapter can be connected (sold
separately).
5
Power supply
6 Fuse (10 A)
7 Front output
8 Rear output or subwoofer output

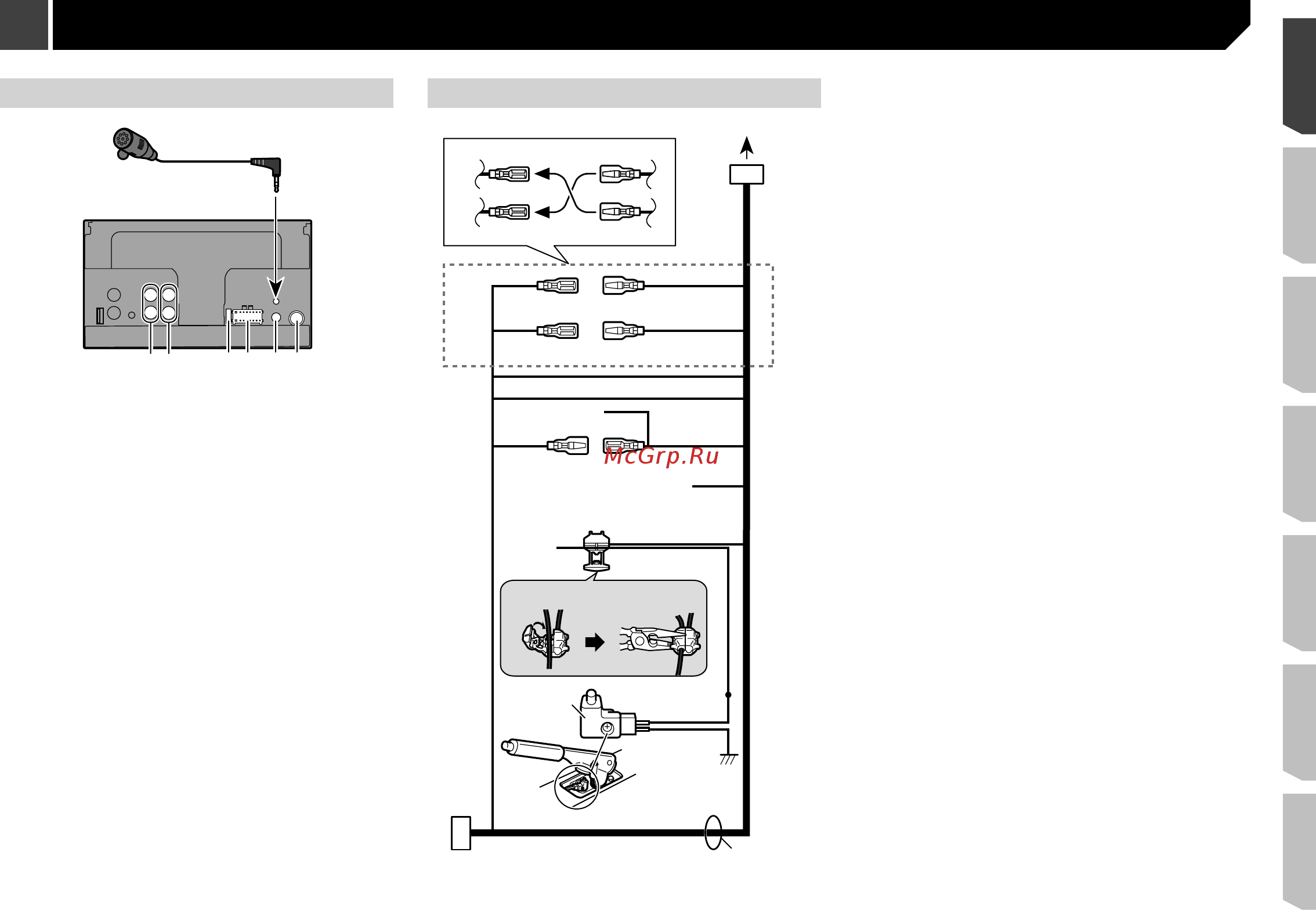

Power cord
1. 2.
1
3
2*
2
4
1*
5
4*
6
3*
b (6*)
8
9
a (5*)
7
c
d
e
f
kj
g
i
h
1 To power supply
2 Depending on the kind of vehicle, the function of 2* and 4*
may be different. In this case, be sure to connect 1* to 4*
and 3* to 2*.
3
Yellow (2*)
Back-up (or accessory)
4
Yellow (1*)
Connect to the constant 12 V supply terminal.
5
Red (4*)
Accessory (or back-up)
6
Red (3*)
Connect to terminal controlled by ignition switch (12 V DC).
7
Connect leads of the same colour to each other.
8 Orange/white
To lighting switch terminal.
9
Black (earth)
To vehicle (metal) body.
a
Blue/white (5*)
The pin position of the ISO connector will differ depending
on the type of vehicle. Connect 5* and 6* when Pin 5 is an
aerial control type. In another type of vehicle, never connect
5* and 6*.
b
Blue/white (6*)
Connect to auto-aerial relay control terminal (max. 300 mA
12 V DC).
c
Blue/white
Connect to system control terminal of the power amp (max.
300 mA 12 V DC).
d
Violet/white
Of the two lead wires connected to the back lamp, connect
the one in which the voltage changes when the gear shift
is in the REVERSE (R) position. This connection enables
the unit to sense whether the car is moving forwardss or
backwardss.
e
Light green
Used to detect the ON/OFF status of the handbrake. This
lead must be connected to the power supply side of the
handbrake switch.
f
Connection method
1 Clamp the lead.
2 Clamp firmly with needle-nosed pliers.
g Power supply side
h Handbrake switch
i Earth side
j Speaker leads
White: Front left +
White/black: Front left –
Grey: Front right +
Grey/black: Front right –
Green: Rear left +
Green/black: Rear left –
The black lead is earth. Please earth this lead
separately from the earth of high-current products
such as power amps. Do not earth more than one
product together with the earth from another product.
For example, you must separately earth any amp
unit away from the earth of this product. Connecting
earths together can cause a fire and/or damage the
products if their earths became detached.
When replacing the fuse, be sure to only use a fuse of
the rating prescribed on this product.
This product cannot be installed in a vehicle without ACC
(accessory) position on the ignition switch.
A
C
C
O
N
S
T
A
R
T
O
F
F
O
N
S
T
A
R
T
O
F
F
ACC position No ACC position
To avoid short-circuiting, cover the disconnected lead with
insulating tape. It is especially important to insulate all
unused speaker leads, which if left uncovered may cause a
short circuit.
For connecting a power amp or other devices to this product,
refer to the manual for the product to be connected.
Notice for the blue/white lead
When the ignition switch is turned on (ACC ON), a control
signal is output through the blue/white lead. Connect to an
external power amp’s system remote control terminal, the
auto-aerial relay control terminal, or the aerial booster power
control terminal (max. 300 mA 12 V DC). The control signal is
output through the blue/white lead, even if the audio source
is switched off.
3
< QRD3362-A >
