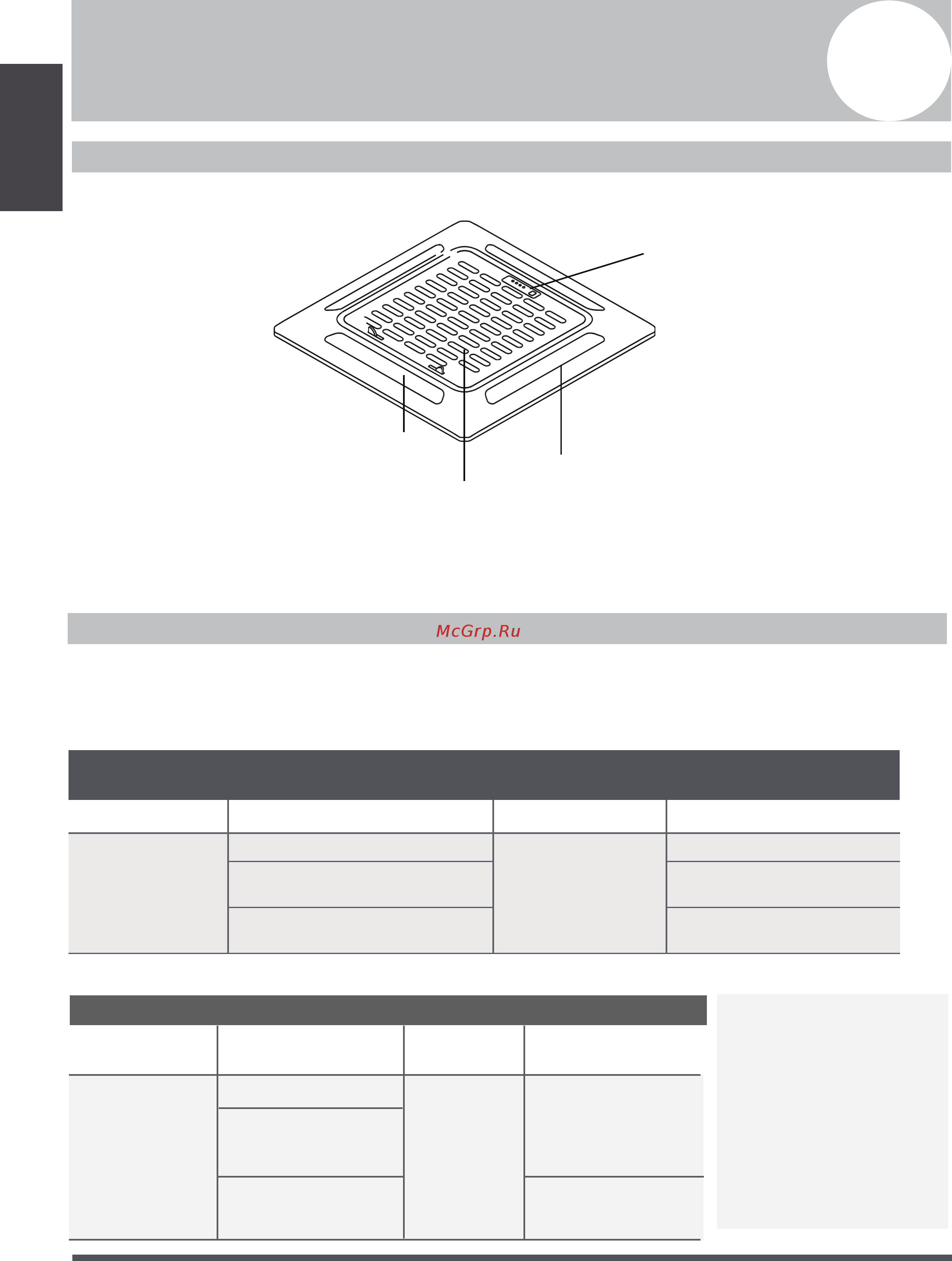

Page 8
Functions
Indoor Unit Parts And Major Functions
Indoor Unit
Parts And Major
Functions
2
Unit Parts
Fig. 2.1
Air inlet
Air outlet
Louver
Display panel
Operating Conditions
Use the system under the following temperatures for safe and eective operation.
If the air conditioner is used under dierent conditions, it may malfunction or become less ecient.
COOL Mode HEAT mode DRY mode
Indoor Temperature
17°-32°C (63°-90°F) O°-30°C (32°-86°F) 10°-32°C (50°-90°F)
Outdoor
Temperature
18°-43°C (64°-109°F)
-7°-24°C (19°-75°F)
11°-43°C (52°-109°F)
18°-43°C (64°-109°F)
-7°-43°C (19°-109°F)
(low temperature cooling models)
18°-52°C (64°-126°F)
(For special tropical models)
18°-52°C (64°-126°F)
(For special tropical models)
• Fixed-speed Type
COOL mode HEAT mode DRY mode
Indoor Temperature
17°C - 32°C
(63°F - 90°F)
0°C - 30°C
(32°F - 86°F)
Outdoor
Temperature
0°C - 50°C (32°F - 122°F)
-15°C - 30°C
(5°F - 86°F)
10°C - 32°C
(50°F - 90°F)
0°C - 50°C (32°F - 122°F)
0°C - 52°C(32°F - 126°F)
(For special tropical
models)
(For special tropical
models)
0°C - 52°C(32°F - 126°F)
-15°C - 50°C (5°F - 122°F)
(For models with low
temp. cooling systems.)
FOR OUTDOOR UNITS
WITH AUXILIARY
ELECTRIC HEATER
When outside
temperature is below
0°C(32°F ), we strongly
recommend keeping the
unit plugged in at all
time to ensure smooth
ongoing performance.
• Inverter Split Type
