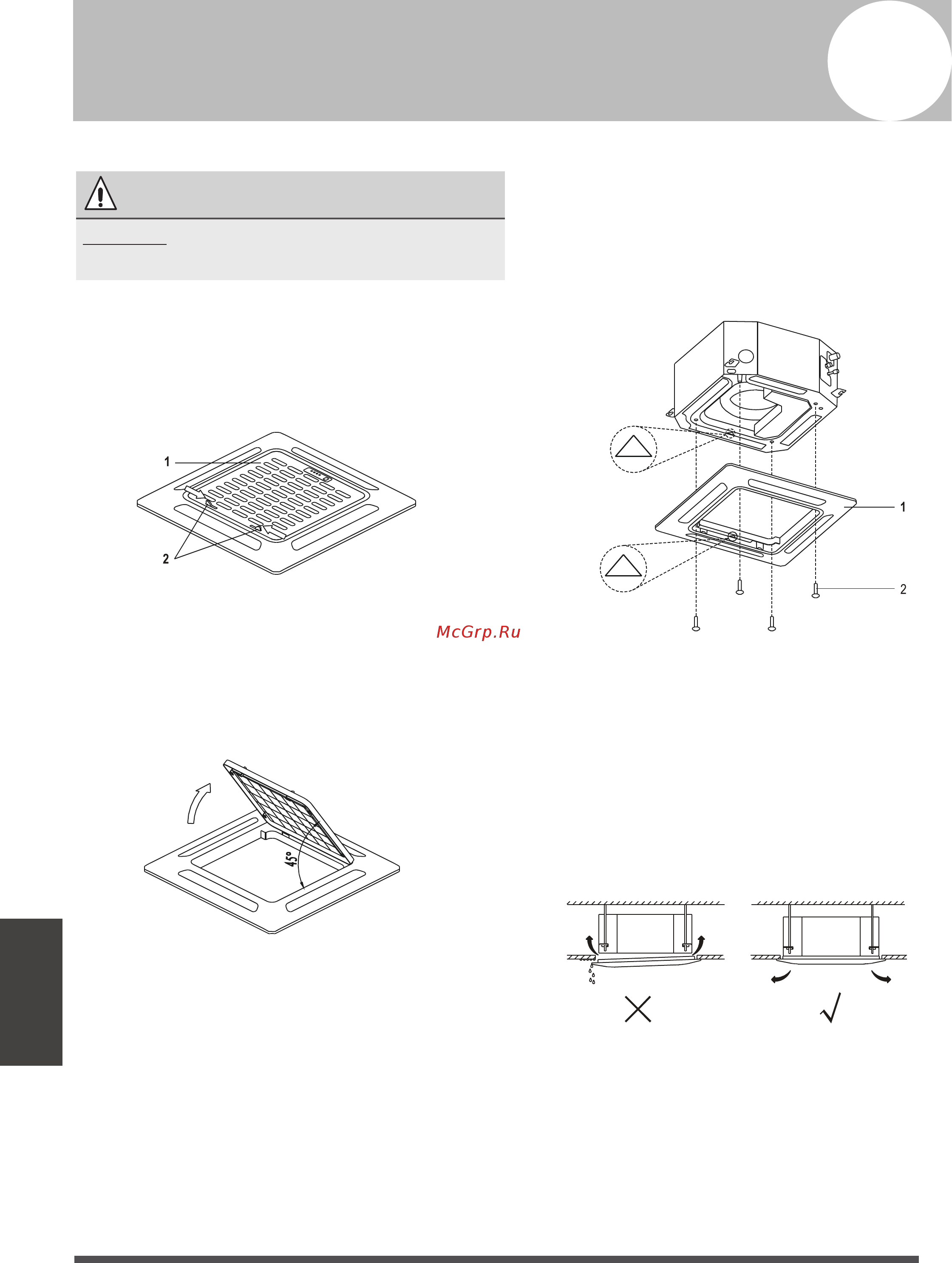

Panel Installation
Panel Installation
9
CAUTION
DO NOT place the panel facedown on the
floor, against a wall, or on uneven surfaces.
Step 1: Remove the front grille.
1. Push both of the tabs towards the middle
simultaneously to unlock the hook on the
grille.
2. Hold the grille at a 45° angle, lift it up
slightly and detach it from the main body.
Fig. 9.1
Fig. 9.2
Fig. 9.3
Fig. 9.4
Step 2: Install the panel
Align the indicate "△" on the decoration
panel to the indicate "△" on the unit .
Attach the decoration panel to the unit with
the supplied screws as shown in gure below.
1 Intake grille
2 Grille hook
1 Decoration panel
2 Screws (M5)(supplied with the panel)
After installing the decoration panel, ensure
that there is no space between the unit body
and decoration panel. Otherwise air may leak
through the gap and cause dewdrop. (See
gure below)
Page 28
