<YRD5313-B/S> <1> <YRD5313-B/S> <2> <YRD5313-B/S> <3> <YRD5313-B/S> <4>
Installation English Installation English
<KSNZX>  <09L00000>
  Printed in China 
  Imprimé en Chine
<YRD5313-B/S> EW
Installation Manual
Manuel d’installation
Manuale d’installazione
Manual de instalación
Installationsanleitung
Installatiehandleiding
Руководство по установке
CD RDS RECEIVER
AUTORADIO CD RDS
SINTOLETTORE CD RDS
REPRODUCTOR DE CD CON RECEPTOR RDS
CD RDS-EMPFÄNGER
CD RDS-ONTVANGER
CD RDS ПРИЕМНИК
DEH-6200BT

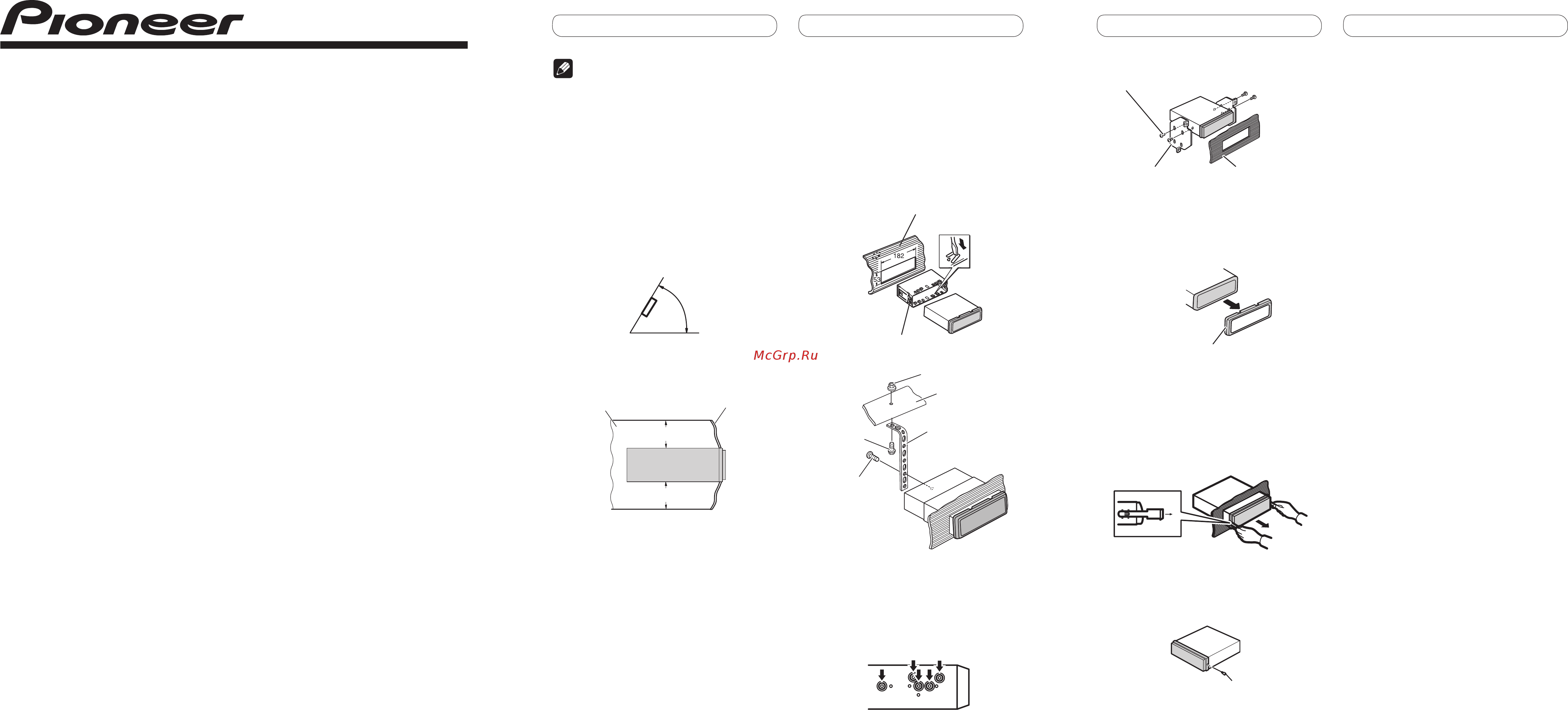

2. Tighten two screws on each side.
Dashboard or ConsoleMounting bracket
Tapping screw (5 mm × 8 mm)
Removing the unit
1. Extend top and bottom of the trim
ring outwards to remove the trim
ring. (When reattaching the trim ring,
point the side with the groove down.)
Trim ring
• Releasing the front panel allows easier access
to the trim ring.
2. Insert the supplied extraction keys
into both sides of the unit until they
click into place.
3. Pull the unit out of the dashboard.
Fastening the front panel
If you do not plan to detach the front panel,
the front panel can be fastened with supplied
screw.
Screw
Note
• Check all connections and systems before final
installation.
• Do not use unauthorized parts. The use of
unauthorized parts may cause malfunctions.
• Consult with your dealer if installation requires
drilling of holes or other modifications of the
vehicle.
• Do not install this unit where:
— it may interfere with operation of the vehicle.
— it may cause injury to a passenger as a result
of a sudden stop.
• The semiconductor laser will be damaged if it
overheats. Install this unit away from hot places
such as near the heater outlet.
• Optimum performance is obtained when the unit is
installed at an angle of less than 60°.
60°
• When installing, to ensure proper heat dispersal
when using this unit, make sure you leave ample
space behind the rear panel and wrap any loose
cables so they are not blocking the vents.
DIN front/rear-mount
This unit can be properly installed either from
“Front” (conventional DIN Front-mount) or
“Rear” (DIN Rear-mount installation, utilizing
threaded screw holes at the sides of unit
chassis). For details, refer to the following
installation methods.
• Use commercially available parts when
installing.
DIN Front-mount
1. Insert the mounting sleeve into the
dashboard.
For installation in shallow spaces, use the
supplied mounting sleeve. If there is enough
space, use the mounting sleeve that came with
the vehicle.
2. Secure the mounting sleeve by using
a screwdriver to bend the metal tabs
(90°) into place.
Dashboard
Mounting sleeve
3. Install the unit as illustrated.
Screw (M4×8)
Screw
Metal strap
Nut
Firewall or
metal support
• Make sure that the unit is installed securely
in place. An unstable installation may cause
skipping or other malfunctions.
DIN Rear-mount
1. Determine the appropriate position
where the holes on the bracket and
the side of the unit match.
Leave ample space
Dashboard
10 cm
10 cm
